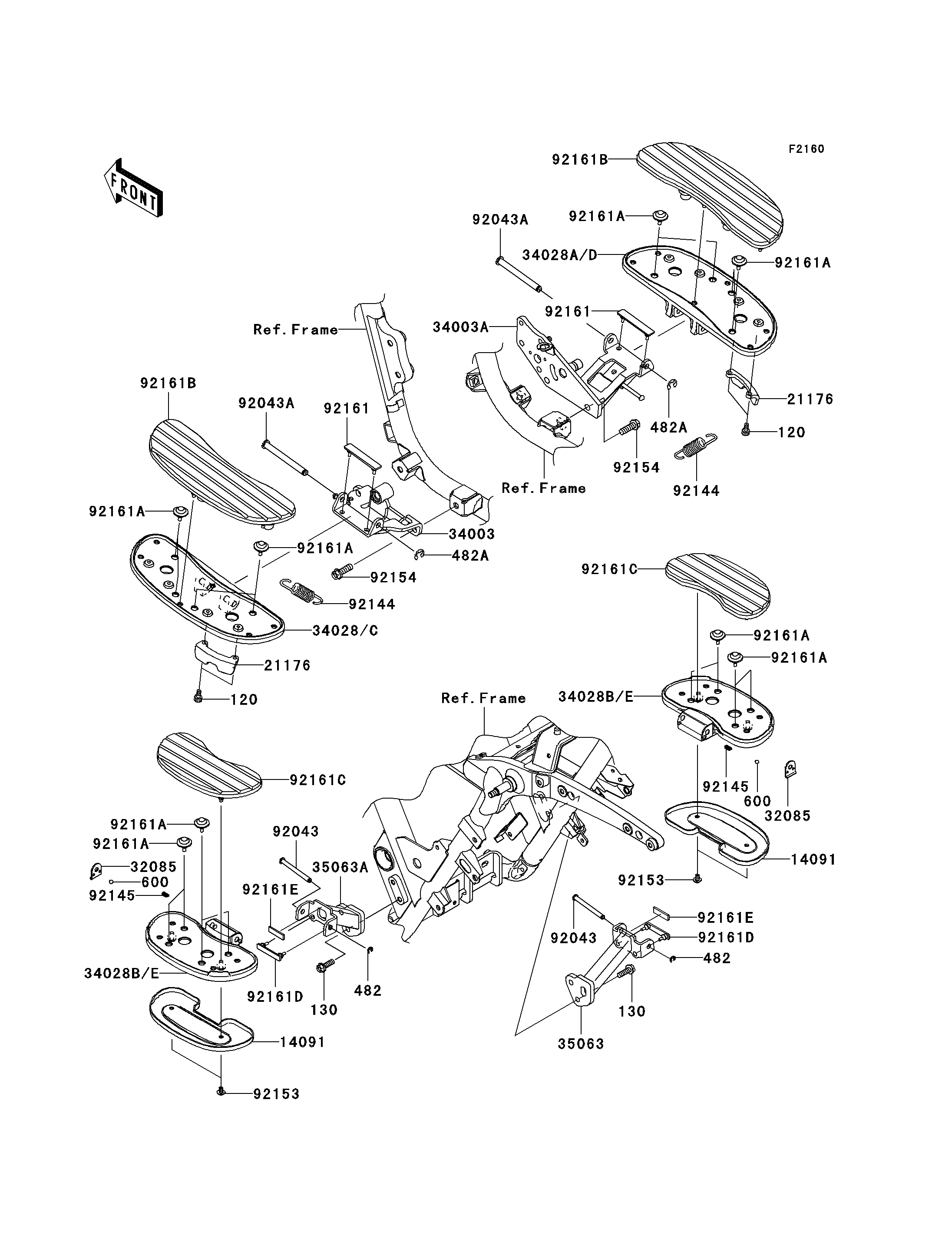

2012 VULCAN® 1700 NOMAD™ - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
482
482
482A
482A
600
600
14091
14091
21176
21176
32085
32085
34003
34003A
34028C
34028D
34028E
34028E
35063
35063A
92043
92043
92043A
92043A
92144
92144
92145
92145
92153
92153
92154
92154
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120CB0616 4
BOLT-FLANGED,8X25 130 130BB0825 4
CIRCLIP-TYPE-E 482 482EA7000 2
CIRCLIP-TYPE-E,8MM 482A 482EA8000 2
BALL-STEEL,1/4" 600 600A0800 2
COVER,REAR STEP 14091 14091-1808 2
SENSOR,BANK 21176 21176-0123 2
STOPPER,REAR STEP 32085 32085-0045 2
HOLDER-STEP,FR,LH,F.S.BLACK 34003 34003-0102-18R 1
HOLDER-STEP,FR,RH,F.S.BLACK 34003A 34003-0103-18R 1
STEP,FR,LH 34028C 34028-0143 1
STEP,FR,RH 34028D 34028-0144 1
STEP,RR 34028E 34028-0145 2
STAY,RR,RH,F.S.BLACK 35063 35063-0649-18R 1
STAY,RR,LH,F.S.BLACK 35063A 35063-0669-18R 1
PIN,8X76.5 92043 92043-0054 2
PIN,10X98.5 92043A 92043-1707 2
SPRING 92144 92144-1266 2
SPRING 92145 92145-1319 2
BOLT,SOCKET,6X10 92153 92153-1096 4
BOLT,FLANGED,10X30 92154 92154-0284 4
DAMPER,STEP HOLDER 92161 92161-0746 2
DAMPER,STEP 92161A 92161-0766 16
DAMPER,FOOT BOARD 92161B 92161-0770 2
DAMPER,REAR STEP 92161C 92161-0771 2
DAMPER,REAR STEP 92161D 92161-0772 2
DAMPER,10X35X3 92161E 92161-0840 2
