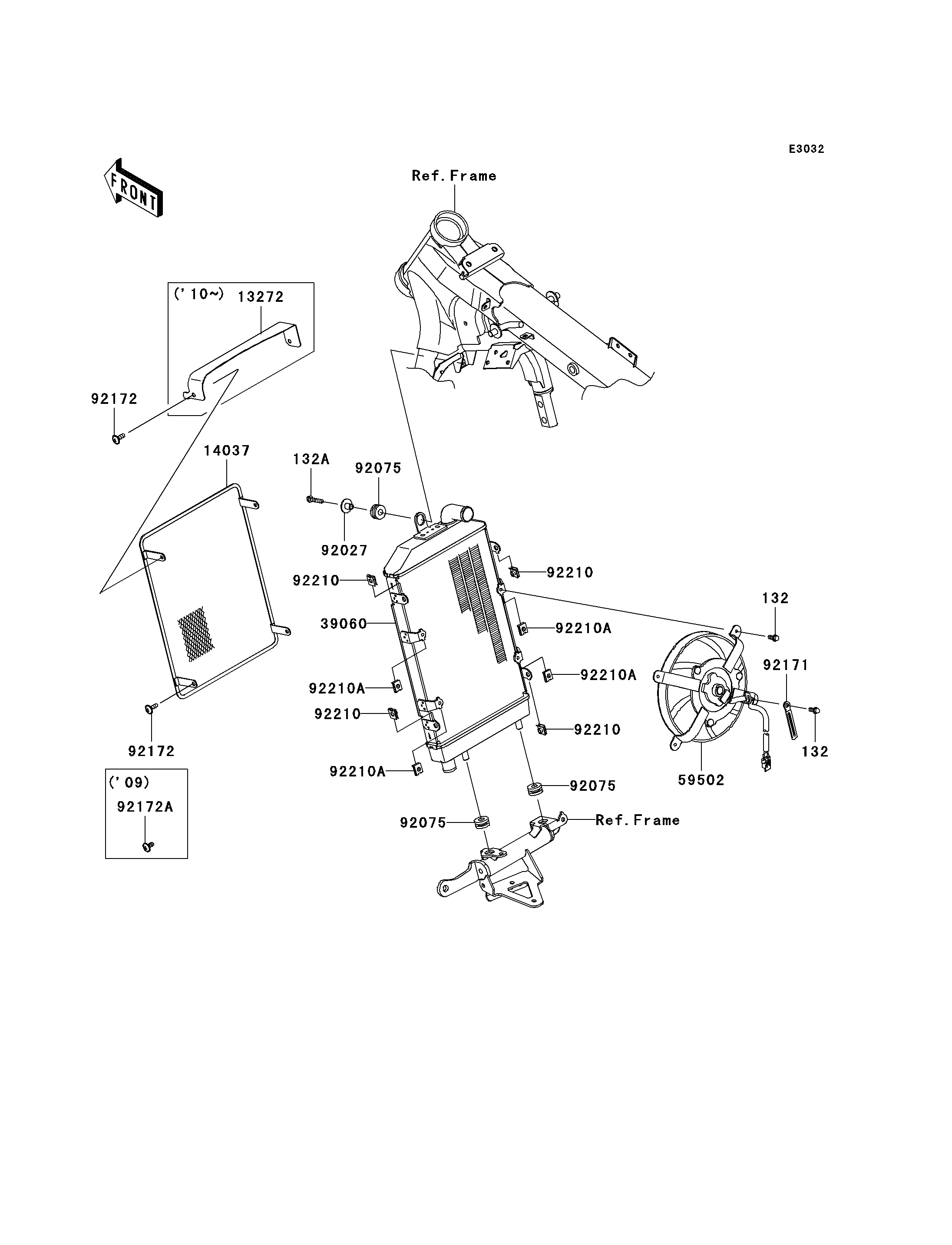

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BB0614 | 4 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BB0620 | 1 | ||
| PLATE | 13272 | 13272-0882 | 1 | ||
| SCREEN,INNER | 14037 | 14037-0014 | 1 | ||
| RADIATOR | 39060 | 39060-0059 | 1 | ||
| FAN-ASSY | 59502 | 59502-0040 | 1 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 1 | ||
| DAMPER | 92075 | 92075-1690 | 3 | ||
| CLAMP | 92171 | 92171-0791 | 1 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
| NUT | 92210 | 92210-1125 | 4 | ||
| NUT | 92210A | 92210-1323 | 4 |
