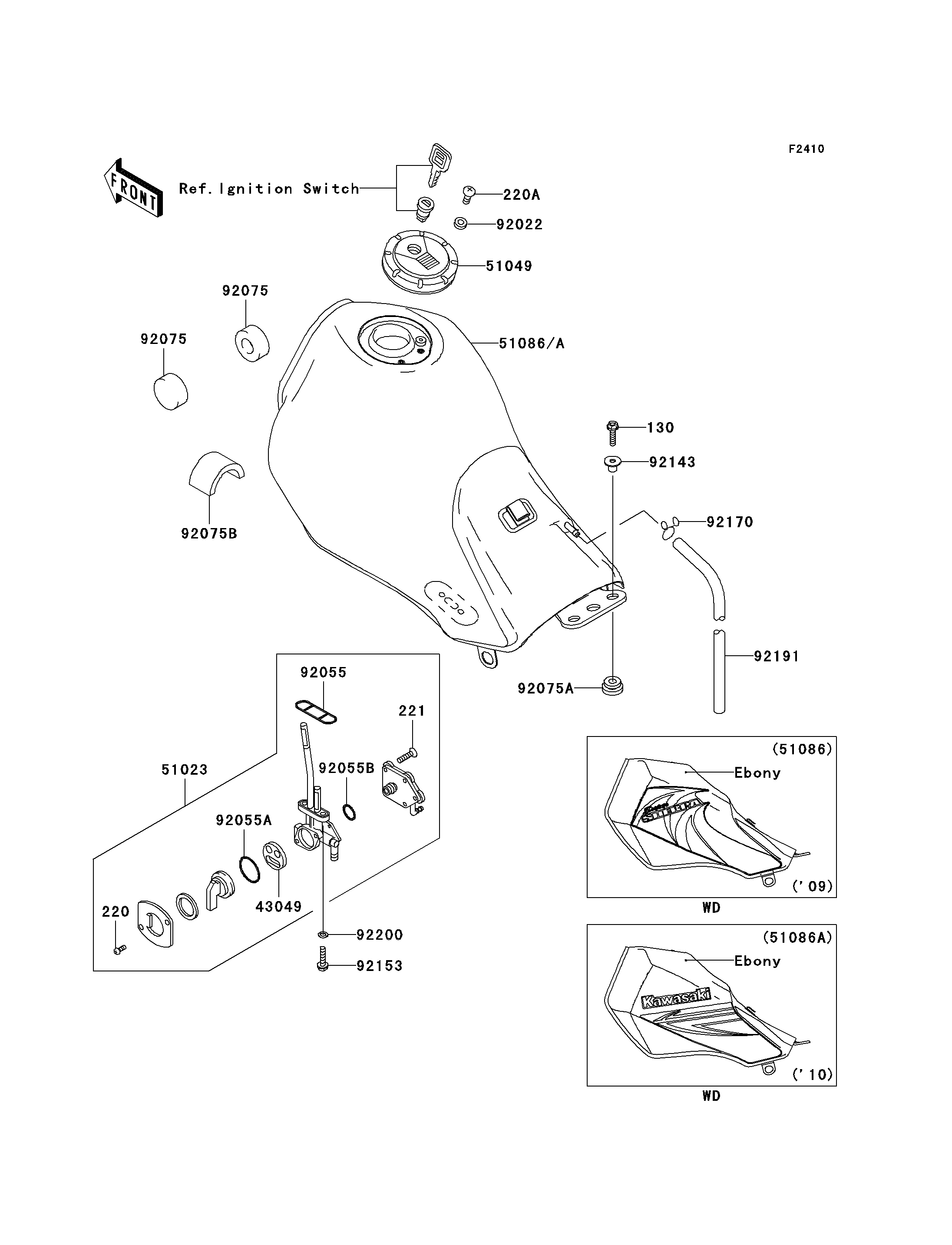

2010 Super Sherpa (Canada Only) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
43049
43049
51023
51023
51049
51049
51086A
51086A
92022
92022
92055
92055
92055A
92055A
92055B
92055B
92075
92075
92075
92075
92075A
92075A
92075B
92075B
92143
92143
92153
92153
92170
92170
92191
92191
92200
92200
130
130
220
220
220A
220A
221
221
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,TAP VALVE 43049 43049-1091 1
TAP-ASSY,FUEL 51023 51023-1278 1
CAP-TANK,FUEL 51049 51049-1134 1
TANK-COMP-FUEL,EBONY 51086A 51086-5305-H8 1
WASHER,5.1X10X1.0 92022 92022-1977 2
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
RING-O 92055B 92055-1664 1
DAMPER,FUEL TANK 92075 92075-101 2
DAMPER 92075A 92075-112 2
DAMPER 92075B 92075-1507 1
COLLAR 92143 92143-1353 2
BOLT,FLANGED,6X25 92153 92153-0514 2
CLAMP,TUBE 92170 92170-1834 1
TUBE,7X12X600 92191 92191-1138 1
WASHER,6.5X11.5X0.8 92200 92200-0117 2
BOLT-FLANGED,6X25 130 130BA0625 2
SCREW-PAN-CROS,3X8 220 220AA0308 2
SCREW-PAN-CROSS,5X10 220A 220AA0510 2
SCREW-CSK-CROS,4X14 221 221AA0414 5
