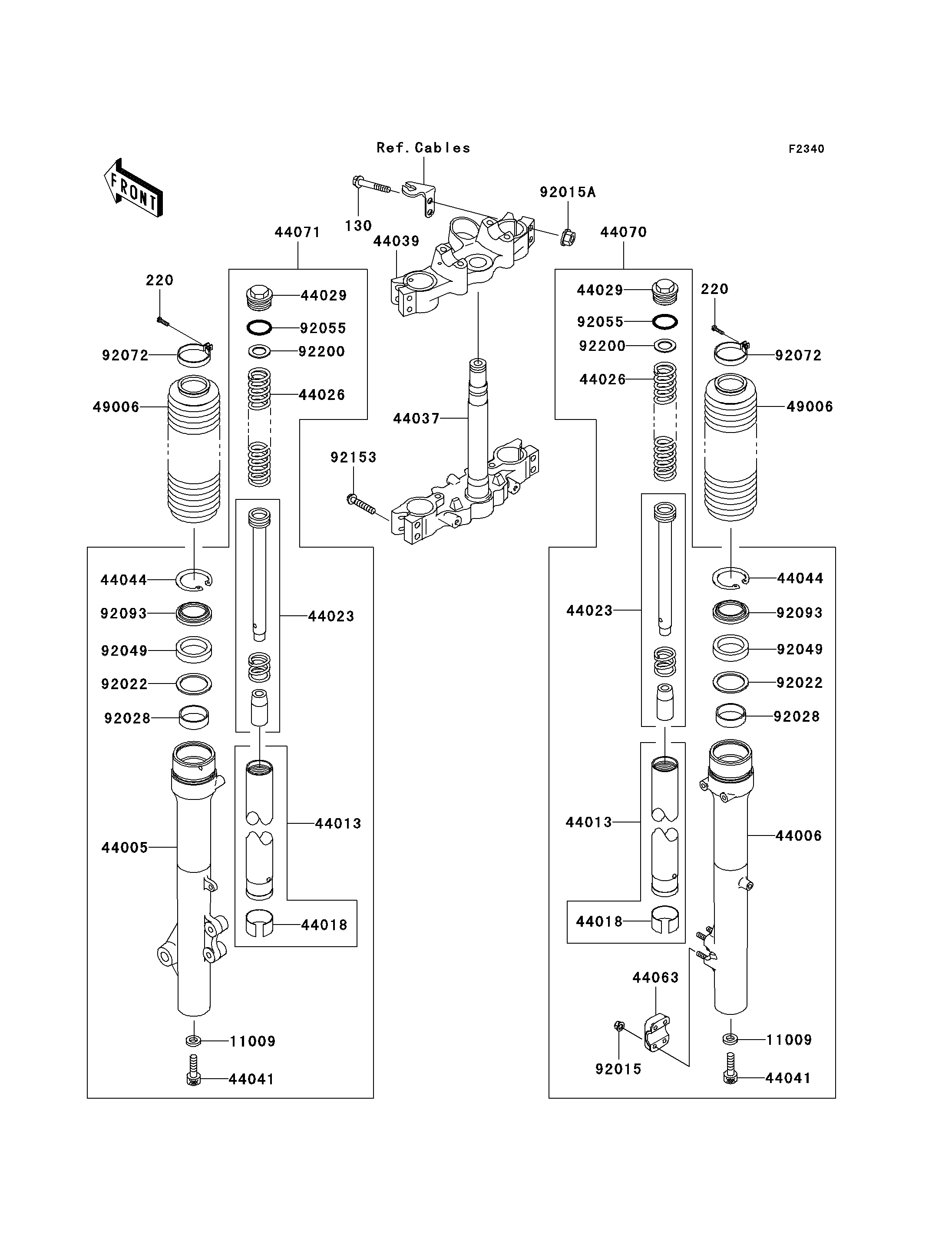

2010 Super Sherpa (Canada Only) - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
130
220
220
11009
11009
44005
44006
44013
44013
44018
44018
44023
44023
44026
44026
44029
44029
44037
44039
44041
44041
44044
44044
44063
44070
44071
49006
49006
92015
92015A
92022
92022
92028
92028
92049
92049
92055
92055
92072
92072
92093
92093
92153
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X50 130 130BA0850 4
SCREW-PAN-CROS,4X16 220 220AA0416 2
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
PIPE-LEFT FORK OUTER 44005 44005-0058 1
PIPE-RIGHT FORK OUTER 44006 44006-1401 1
PIPE-FORK INNER 44013 44013-1468 2
PISTON-FORK 44018 44018-1058 2
CYLINDER-SET-FORK 44023 44023-1141 2
SPRING-FRONT FORK 44026 44026-1699 2
SEAT-FORK SPRING 44029 44029-1160 2
HOLDER-FORK UNDER 44037 44037-0046 1
HOLDER-FORK UPPER 44039 44039-1272 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
RING-SNAP 44044 44044-015 2
HOLDER-FRONT AXLE 44063 44063-1056 1
DAMPER-ASSY,FORK,RH 44070 44070-1776 1
DAMPER-ASSY,FORK,LH 44071 44071-0409 1
BOOT,FORK,BLACK 49006 49006-1312-BD 2
NUT,FLANGED,6MM 92015 92015-1078 4
NUT,FLANGED,8MM 92015A 92015-1485 4
WASHER,FRONT FORK 92022 92022-1275 2
BUSHING 92028 92028-1656 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1470 2
RING-O,FORK TOP CAP 92055 92055-1051 2
BAND,BOOT 92072 92072-1347 2
SEAL,FORK OUTER TUBE 92093 92093-1439 2
BOLT,FLANGED,8X40 92153 92153-0484 4
WASHER 92200 92200-1259 2
