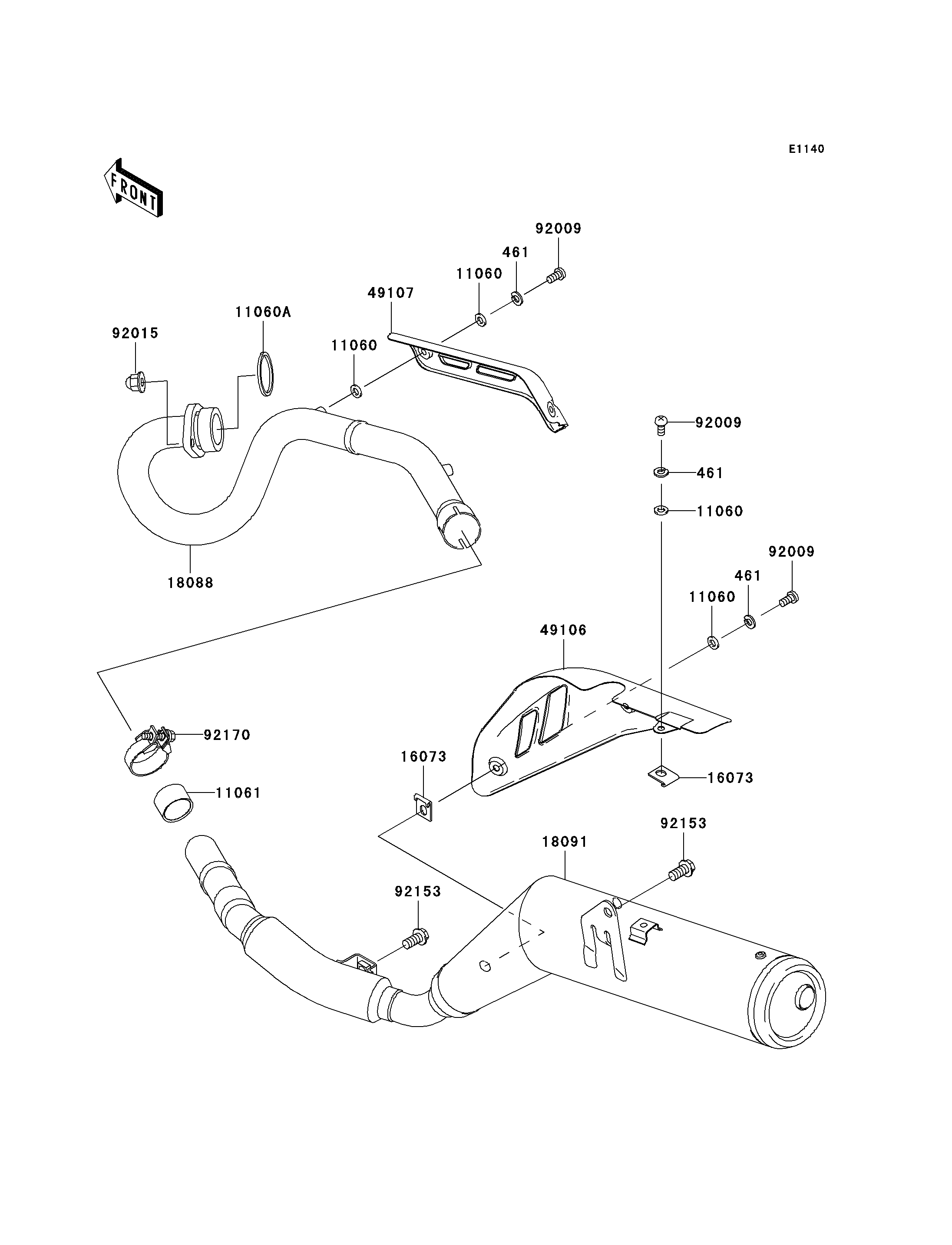

2010 Super Sherpa (Canada Only) - Muffler(s)
461
461
461
11060
11060
11060
11060
11060A
11061
16073
16073
18088
18091
49106
49107
92009
92009
92009
92015
92153
92153
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-SPRING,6MM | 461 | 461S0600 | 5 | ||
| GASKET,6.2X11.5X1.5 | 11060 | 11060-1109 | 7 | ||
| GASKET,EXHAUST PIPE | 11060A | 11060-1203 | 1 | ||
| GASKET,MUFFLER CONNECTING | 11061 | 11061-0360 | 1 | ||
| INSULATOR | 16073 | 16073-1113 | 3 | ||
| PIPE-EXHAUST | 18088 | 18088-0047 | 1 | ||
| BODY-COMP-MUFFLER | 18091 | 18091-0283 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-1224 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1137 | 1 | ||
| SCREW | 92009 | 92009-1805 | 5 | ||
| NUT | 92015 | 92015-1923 | 2 | ||
| BOLT,FLANGED,8X16 | 92153 | 92153-1308 | 2 | ||
| CLAMP,MUFFLER | 92170 | 92170-1454 | 1 |
