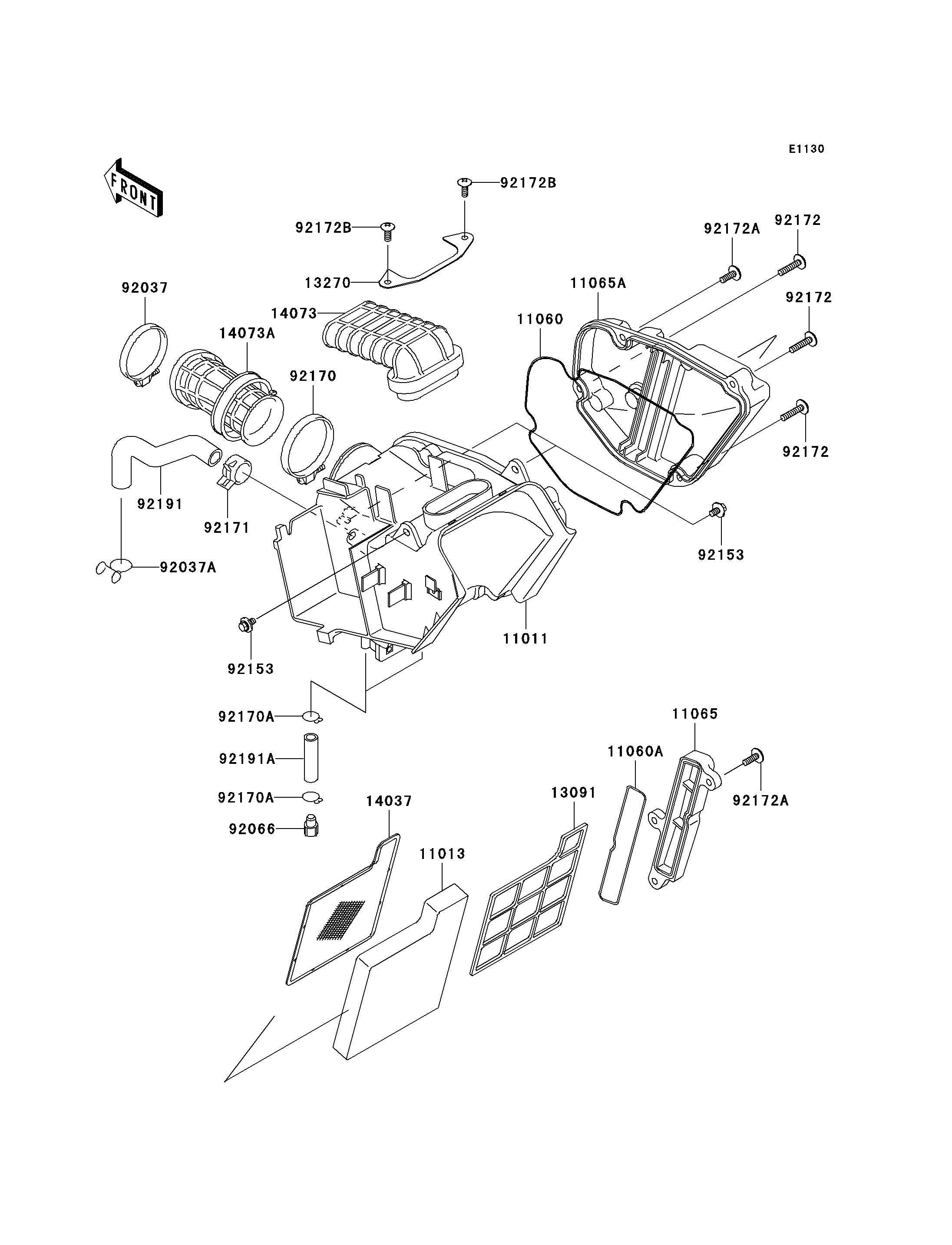

2010 Super Sherpa (Canada Only) - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11013
11060
11060A
11065
11065A
13091
13270
14037
14073
14073A
92037
92037A
92066
92153
92153
92170
92170A
92170A
92171
92172
92172
92172
92172A
92172A
92172B
92172B
92191
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1625 1
ELEMENT-AIR FILTER 11013 11013-1265 1
GASKET,AIR FILTER 11060 11060-1773 1
GASKET,AIR FILTER CAP 11060A 11060-1799 1
CAP,AIR FILTER 11065 11065-1066 1
CAP,AIR FILTER 11065A 11065-1191 1
HOLDER 13091 13091-1989 1
PLATE 13270 13270-1880 1
SCREEN 14037 14037-1236 1
DUCT,AIR INTAKE 14073 14073-1689 1
DUCT,AIR OUTLET 14073A 14073-1709 1
CLAMP 92037 92037-1554 1
CLAMP,TUBE 92037A 92037-213 1
PLUG,DRAIN 92066 92066-1475 2
BOLT,6X12 92153 92153-0503 3
CLAMP 92170 92170-1760 1
CLAMP,11.6MM 92170A 92170-1796 4
CLAMP 92171 92171-0329 1
SCREW,6X28 92172 92172-0224 3
SCREW,6X18 92172A 92172-0225 4
SCREW,6X16 92172B 92172-0227 2
TUBE,BREATHER 92191 92191-1128 1
TUBE,8X12X50 92191A 92191-1172 2
