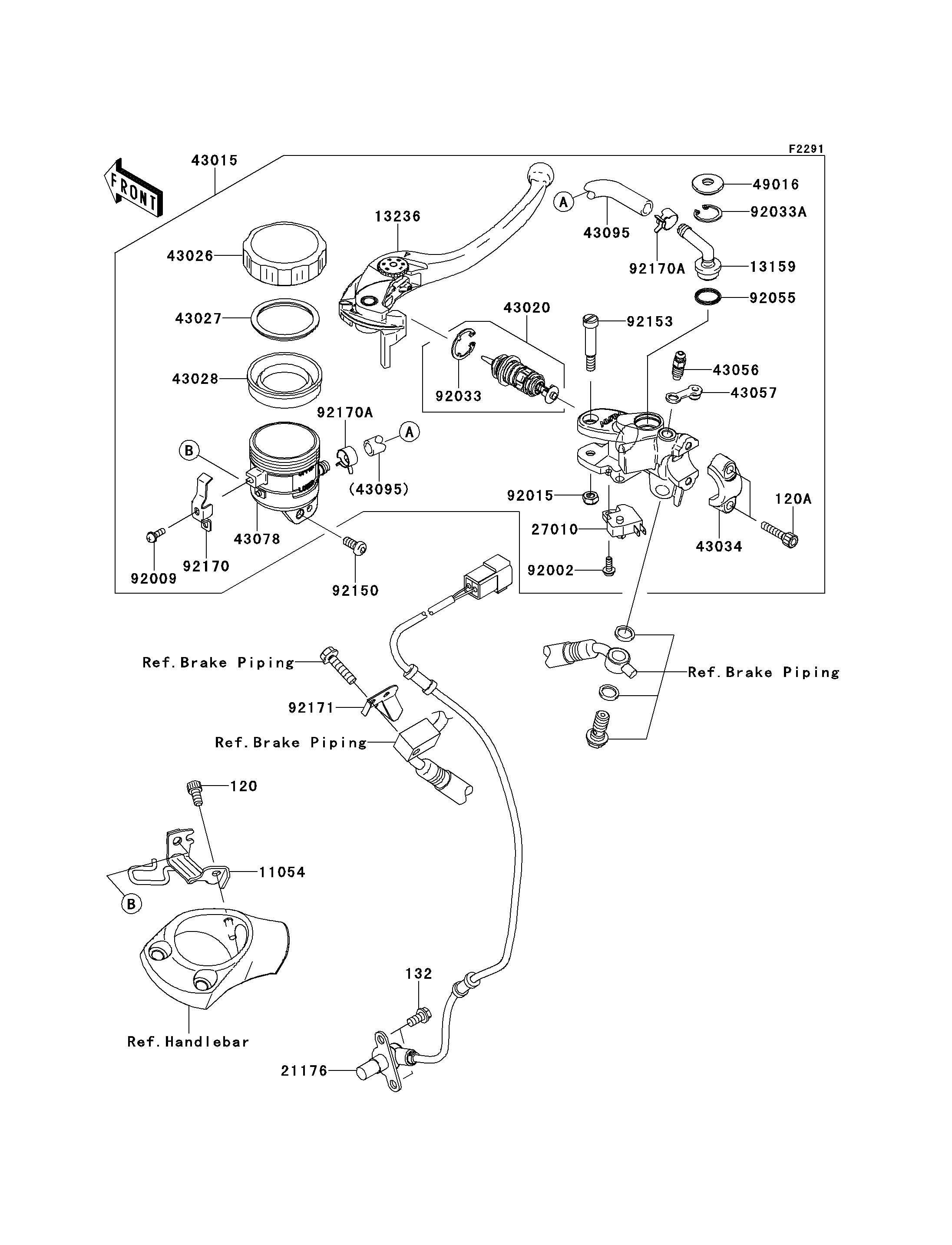

2013 NINJA® ZX™-14R ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
120A
132
11054
13159
13236
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49016
92002
92009
92015
92033
92033A
92055
92150
92153
92170
92170A
92170A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-SOCKET,6X22 120A 120CB0622 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BRACKET,RESERVOIR TANK,FR 11054 11054-0636 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0103 1
SENSOR,SPEED,FR 21176 21176-0051 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0150 1
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0040 1
COVER-SEAL 49016 49016-1147 1
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM 92015 92015-1528 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,6X14 92150 92150-1836 1
BOLT,LEVER 92153 92153-0868 1
CLAMP 92170 92170-1090 1
CLAMP,HOSE 92170A 92170-1091 2
CLAMP 92171 92171-0624 1
