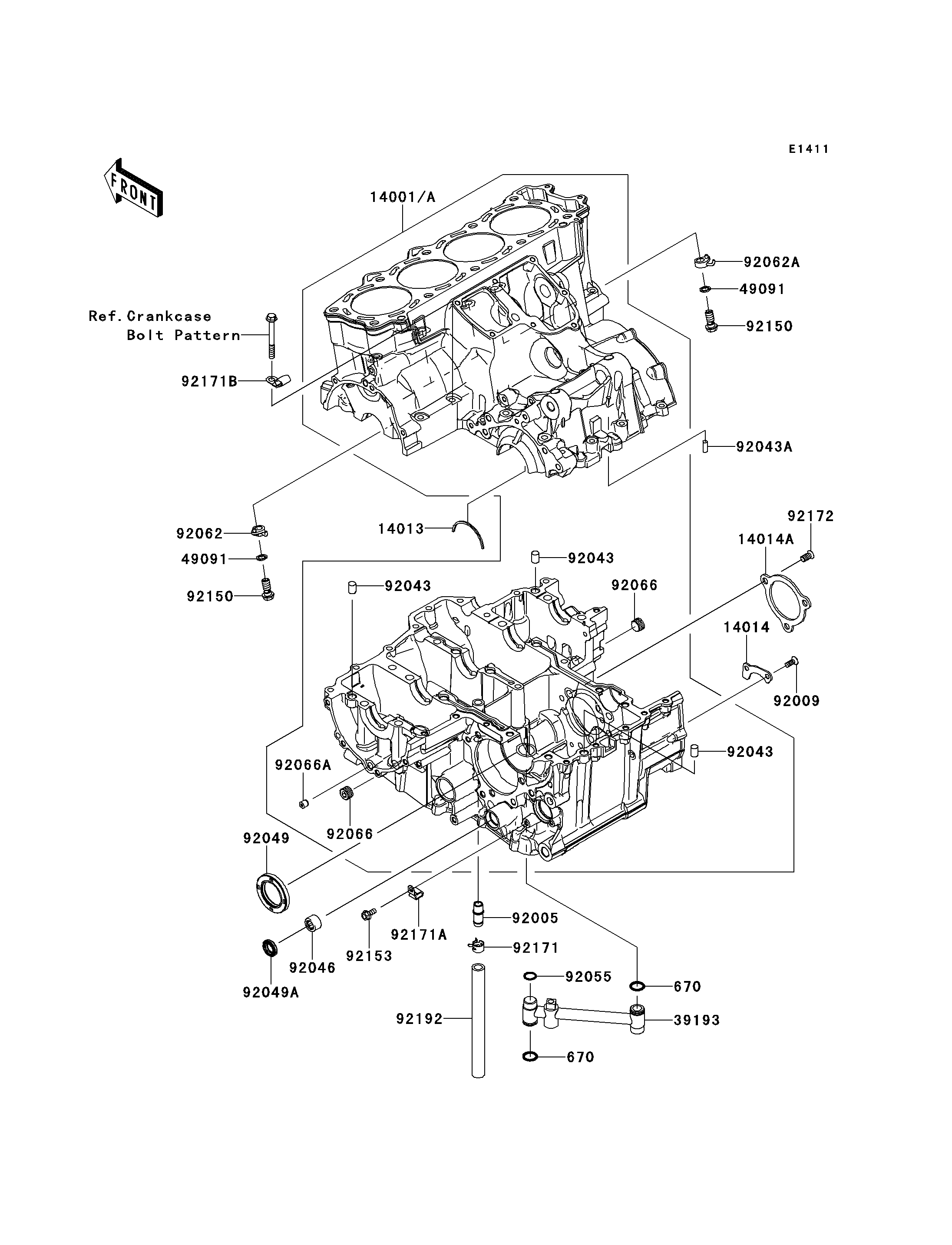

2013 NINJA® ZX™-14R ABS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670
14001
14013
14014
14014A
39193
49091
49091
92005
92009
92043
92043
92043
92043A
92046
92049
92049A
92055
92062
92062A
92066
92066
92066A
92150
92150
92153
92171
92171A
92171B
92172
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,16MM 670 670D2016 2
SET-CRANKCASE 14001 14001-0595 1
RING-POSITION 14013 14013-1051 1
PLATE-POSITION 14014 14014-0023 1
PLATE-POSITION 14014A 14014-0038 1
PIPE-OIL 39193 39193-0576 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
FITTING 92005 92005-0043 1
SCREW,6X16 92009 92009-1360 2
PIN,10X14 92043 92043-1506 3
PIN,6X16 92043A 92043-1690 1
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
SEAL-OIL,TC38 57 8 92049 92049-0068 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O,13.8X1.9 92055 92055-0065 1
NOZZLE 92062 92062-0560 3
NOZZLE 92062A 92062-0561 1
PLUG 92066 92066-0064 2
PLUG 92066A 92066-0066 1
BOLT,BANJO,10X23 92150 92150-1641 4
BOLT,FLANGED,6X14 92153 92153-1571 1
CLAMP 92171 92171-0533 1
CLAMP 92171A 92171-0534 1
CLAMP 92171B 92171-0689 1
SCREW,CSK-CROS,8X16 92172 92172-0323 3
TUBE,11X17X180 92192 92192-0254 1
