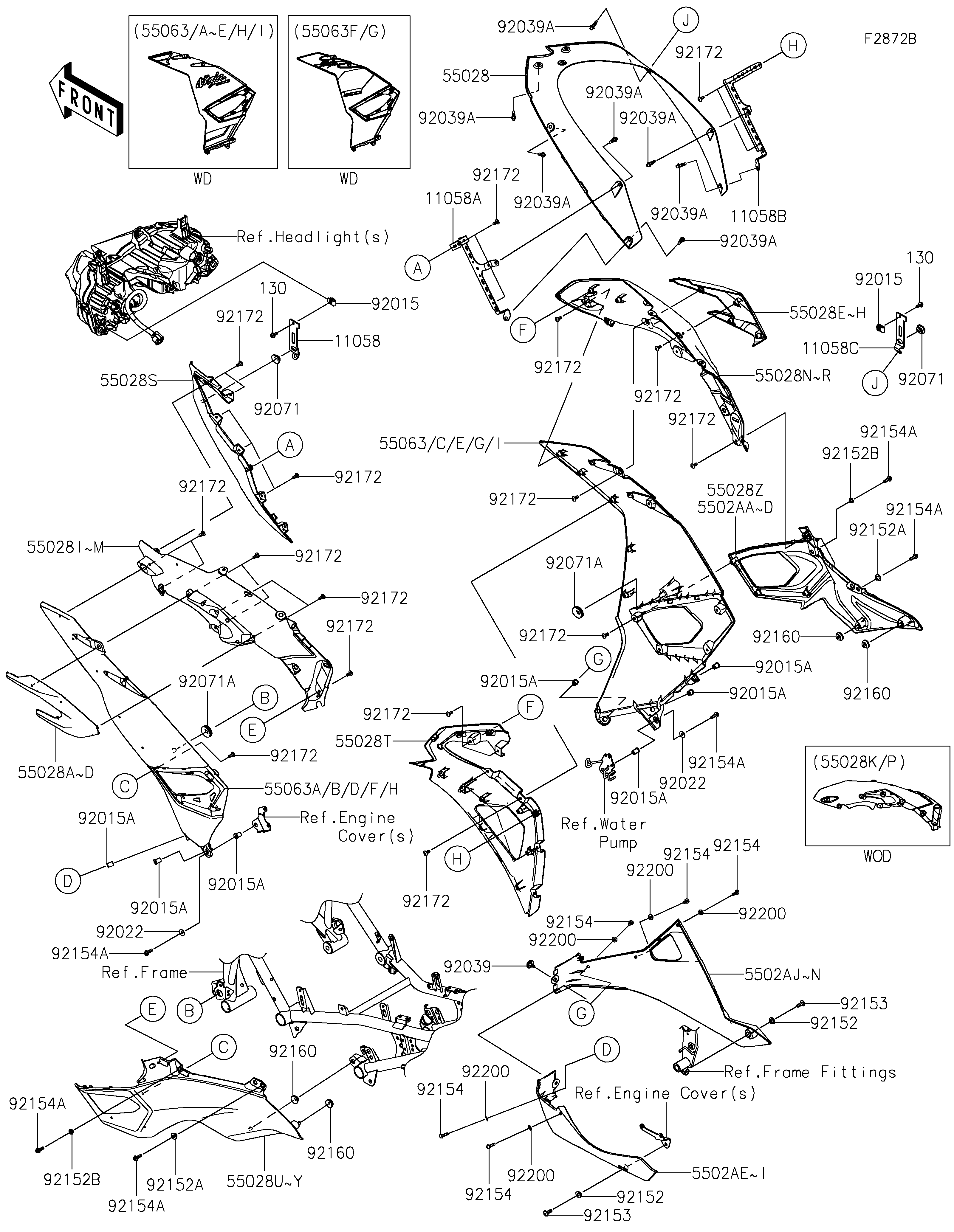

2026 Ninja 500 SE ABS - Cowling Lowers(JTFAN-JVFAL)
11058
11058
11058
11058A
11058A
11058A
11058B
11058B
11058B
11058C
11058C
11058C
55028
55028
55028
55028A
55028A
55028A
55028B
55028B
55028B
55028D
55028D
55028D
55028E
55028E
55028E
55028F
55028F
55028F
55028H
55028H
55028H
55028I
55028I
55028I
55028K
55028K
55028K
55028M
55028M
55028M
55028N
55028N
55028N
55028P
55028P
55028P
55028R
55028R
55028R
55028S
55028S
55028S
55028T
55028T
55028T
55028V
55028V
55028V
55028X
55028X
55028X
55028Y
55028Y
55028Y
5502AA
5502AA
5502AA
5502AC
5502AC
5502AC
5502AD
5502AD
5502AD
5502AG
5502AG
5502AG
5502AH
5502AH
5502AH
5502AI
5502AI
5502AI
5502AL
5502AL
5502AL
5502AM
5502AM
5502AM
5502AN
5502AN
5502AN
55063B
55063B
55063B
55063C
55063C
55063C
55063D
55063D
55063D
55063E
55063E
55063E
55063F
55063F
55063F
55063G
55063G
55063G
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92071
92071
92071A
92071A
92071A
92071A
92071A
92071A
92152
92152
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92153
92153
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
130
130
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP,LH | 11058 | 11058-1180 | 1 | ||
| BRACKET,FR COWLING,LH | 11058A | 11058-1182 | 1 | ||
| BRACKET,FR COWLING,RH | 11058B | 11058-1183 | 1 | ||
| BRACKET,HEAD LAMP,RH | 11058C | 11058-2403 | 1 | ||
| COWLING,FR | 55028 | 55028-0877 | 1 | ||
| COWLING,FIN,LH,M.S.SILVER | 55028A | 55028-0878-35Z | 1 | ||
| COWLING,FIN,LH,M.S.BLACK | 55028B | 55028-0878-660 | 1 | ||
| COWLING,FIN,LH,EBONY | 55028D | 55028-0878-H8 | 1 | ||
| COWLING,FIN,RH,M.S.SILVER | 55028E | 55028-0879-35Z | 1 | ||
| COWLING,FIN,RH,M.S.BLACK | 55028F | 55028-0879-660 | 1 | ||
| COWLING,FIN,RH,EBONY | 55028H | 55028-0879-H8 | 1 | ||
| COWLING,SIDE,UPP,LH,M.S.BLACK | 55028I | 55028-0880-660 | 1 | ||
| COWLING,SIDE,UPP,LH,L.GREEN | 55028K | 55028-0880-777 | 1 | ||
| COWLING,SIDE,UPP,LH,EBONY | 55028M | 55028-0880-H8 | 1 | ||
| COWLING,SIDE,UPP,RH,M.S.BLACK | 55028N | 55028-0881-660 | 1 | ||
| COWLING,SIDE,UPP,RH,L.GREEN | 55028P | 55028-0881-777 | 1 | ||
| COWLING,SIDE,UPP,RH,EBONY | 55028R | 55028-0881-H8 | 1 | ||
| COWLING,SIDE,FR,LH | 55028S | 55028-0882 | 1 | ||
| COWLING,SIDE,FR,RH | 55028T | 55028-0883 | 1 | ||
| COWLING,SIDE,RR,LH,M.M.T.BLUE | 55028V | 55028-0884-68M | 1 | ||
| COWLING,SIDE,RR,LH,L.GREEN | 55028X | 55028-0884-777 | 1 | ||
| COWLING,SIDE,RR,LH,EBONY | 55028Y | 55028-0884-H8 | 1 | ||
| COWLING,SIDE,RR,RH,M.M.T.BLUE | 5502AA | 55028-0885-68M | 1 | ||
| COWLING,SIDE,RR,RH,L.GREEN | 5502AC | 55028-0885-777 | 1 | ||
| COWLING,SIDE,RR,RH,EBONY | 5502AD | 55028-0885-H8 | 1 | ||
| COWLING,LWR,LH,M.Y.GREEN | 5502AG | 55028-0888-79K | 1 | ||
| COWLING,LWR,LH,C.P.RED | 5502AH | 55028-0888-A5 | 1 | ||
| COWLING,LWR,LH,EBONY | 5502AI | 55028-0888-H8 | 1 | ||
| COWLING,LWR,RH,M.Y.GREEN | 5502AL | 55028-0889-79K | 1 | ||
| COWLING,LWR,RH,C.P.RED | 5502AM | 55028-0889-A5 | 1 | ||
| COWLING,LWR,RH,EBONY | 5502AN | 55028-0889-H8 | 1 | ||
| COWLING,SIDE,LH,EBONY | 55063B | 55063-5252-H8 | 1 | ||
| COWLING,SIDE,RH,EBONY | 55063C | 55063-5254-H8 | 1 | ||
| COWLING,SIDE,LH,M.M.T.BLUE | 55063D | 55063-5260-68M | 1 | ||
| COWLING,SIDE,RH,M.M.T.BLUE | 55063E | 55063-5262-68M | 1 | ||
| COWLING,SIDE,LH,L.GREEN | 55063F | 55063-5265-777 | 1 | ||
| COWLING,SIDE,RH,L.GREEN | 55063G | 55063-5268-777 | 1 | ||
| NUT,5MM | 92015 | 92015-1710 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 7 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 2 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0709 | 9 | ||
| GROMMET,20X24X7.5 | 92071 | 92071-0766 | 2 | ||
| GROMMET | 92071A | 92071-1043 | 2 | ||
| COLLAR,6.5X16X5.6 | 92152 | 92152-1838 | 2 | ||
| COLLAR,5.2X7.8X7.2 | 92152A | 92152-2371 | 2 | ||
| COLLAR,6X8X4.5 | 92152B | 92152-2395 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0478 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-4294 | 5 | ||
| BOLT,FLANGED,5X16 | 92154A | 92154-7034 | 6 | ||
| DAMPER | 92160 | 92160-1613 | 4 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 34 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 5 | ||
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 2 |
