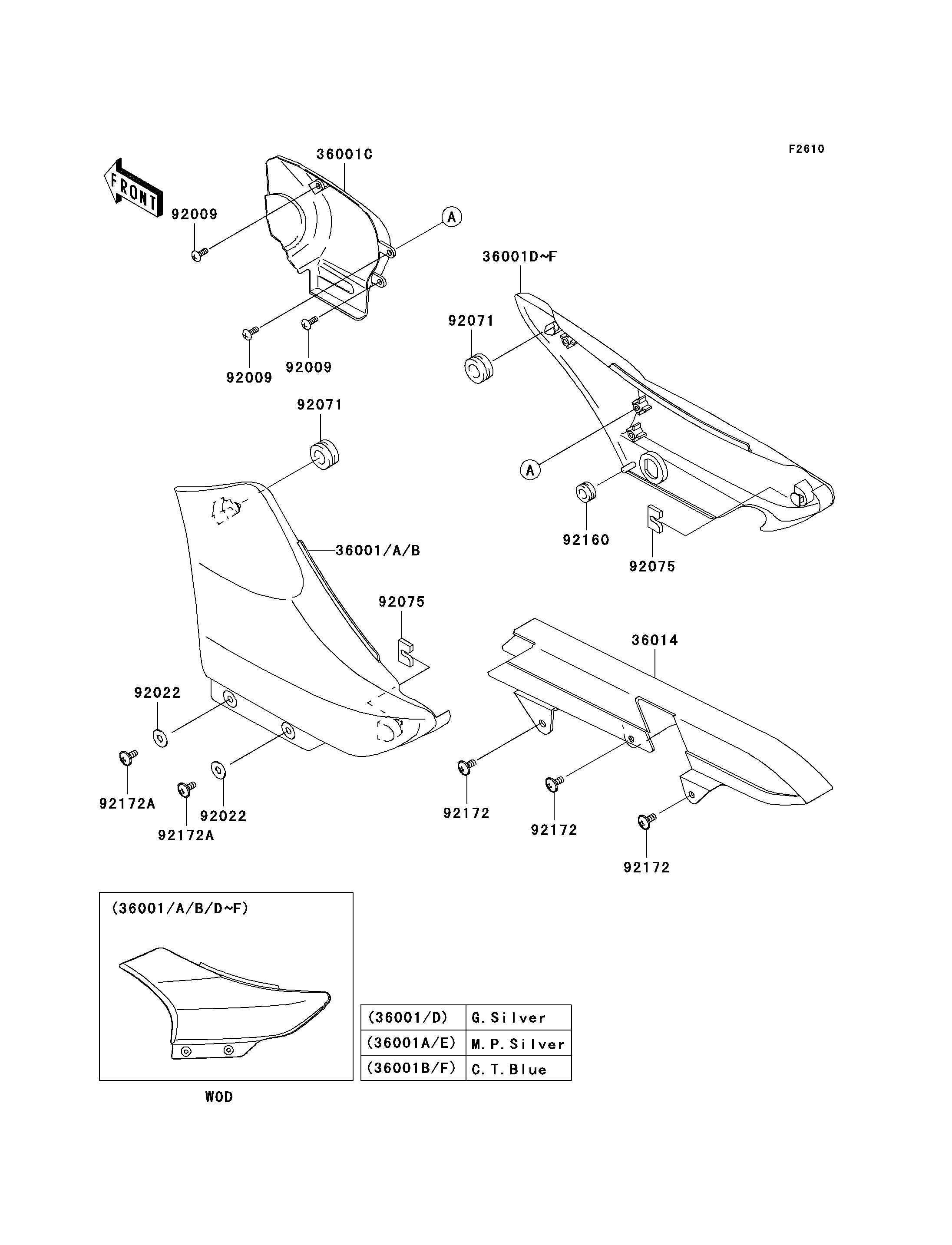

2007 Eliminator 125 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001
36001C
36001C
36001D
36001D
36014
36014
92009
92009
92009
92009
92009
92009
92022
92022
92022
92022
92071
92071
92071
92071
92075
92075
92075
92075
92160
92160
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,G.SILVER 36001 36001-1610-X1 1
COVER-SIDE,RH,FR 36001C 36001-1662 1
COVER-SIDE,RH,RR,G.SILVER 36001D 36001-1663-X1 1
CASE-CHAIN 36014 36014-1228 1
SCREW,TAPPING,5X14 92009 92009-1197 3
WASHER,6.5X16X1.0 92022 92022-1654 2
GROMMET 92071 92071-1043 2
DAMPER 92075 92075-1967 2
DAMPER 92160 92160-1891 1
SCREW,6X14 92172 92172-0004 3
SCREW,6X14 92172A 92172-1069 2
