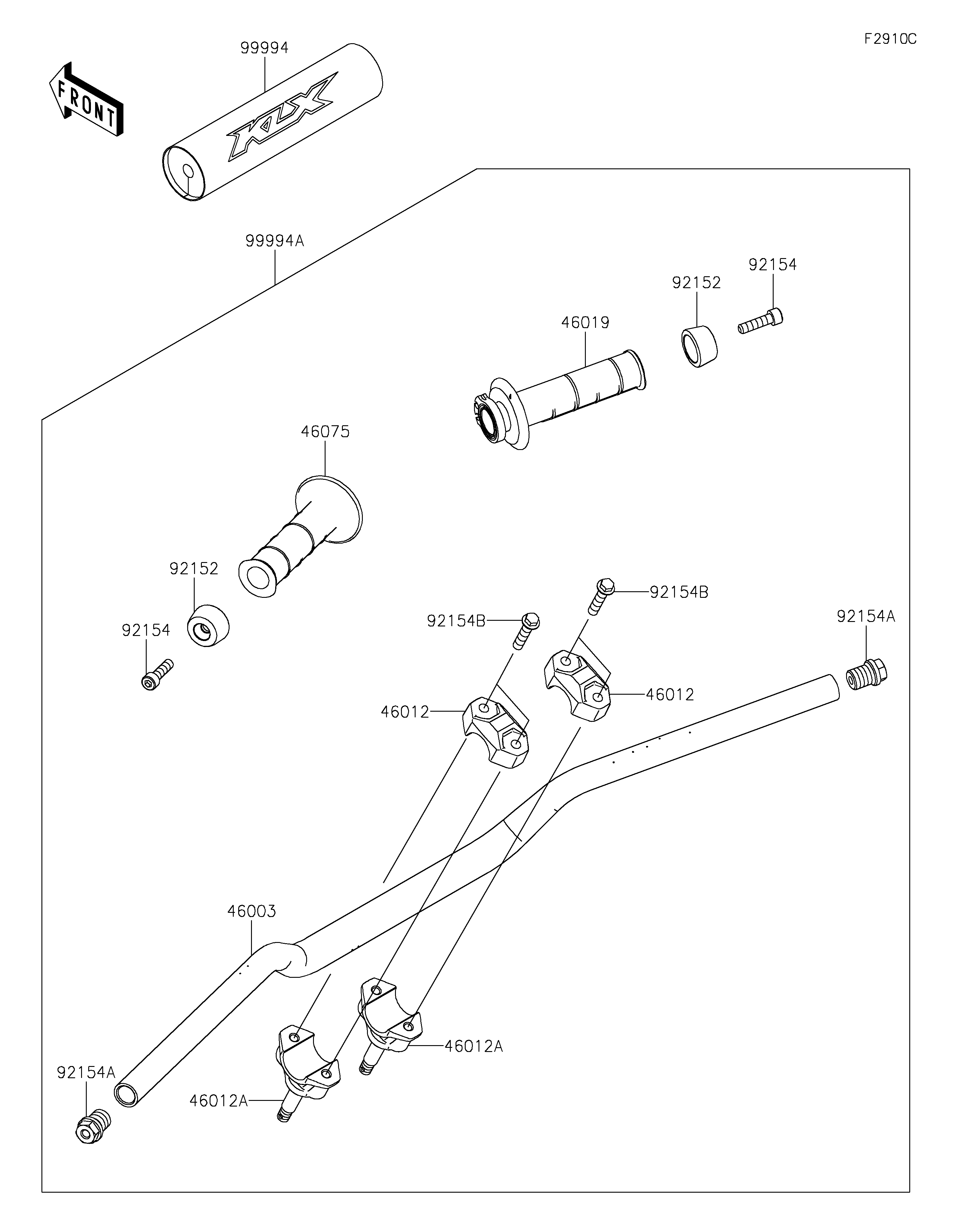

2027 KLX230 S ABS - Accessory(Handle)

DOWNLOAD PDF
SELECT A NEW PART
46003
46012
46012
46012A
46012A
46019
46075
92152
92152
92154
92154
92154A
92154A
92154B
92154B
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLE,FAT TYPE BAR 46003 46003-0903 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0359-458 2
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0461-458 2
GRIP-ASSY,THROTTLE 46019 46019-0129 1
GRIP,LH 46075 46075-0692 1
COLLAR 92152 92152-3982 2
BOLT,SOCKET,8X30 92154 92154-0502 2
BOLT,17X18 92154A 92154-1902 2
BOLT,FLANGED,8X35 92154B 92154-7987 4
HANDLE-BAR PAD 99994 99994-1274 1
AL FAT TYPE HANDLEBAR&GRIP,SIL 99994A 99994-2651-458 1
