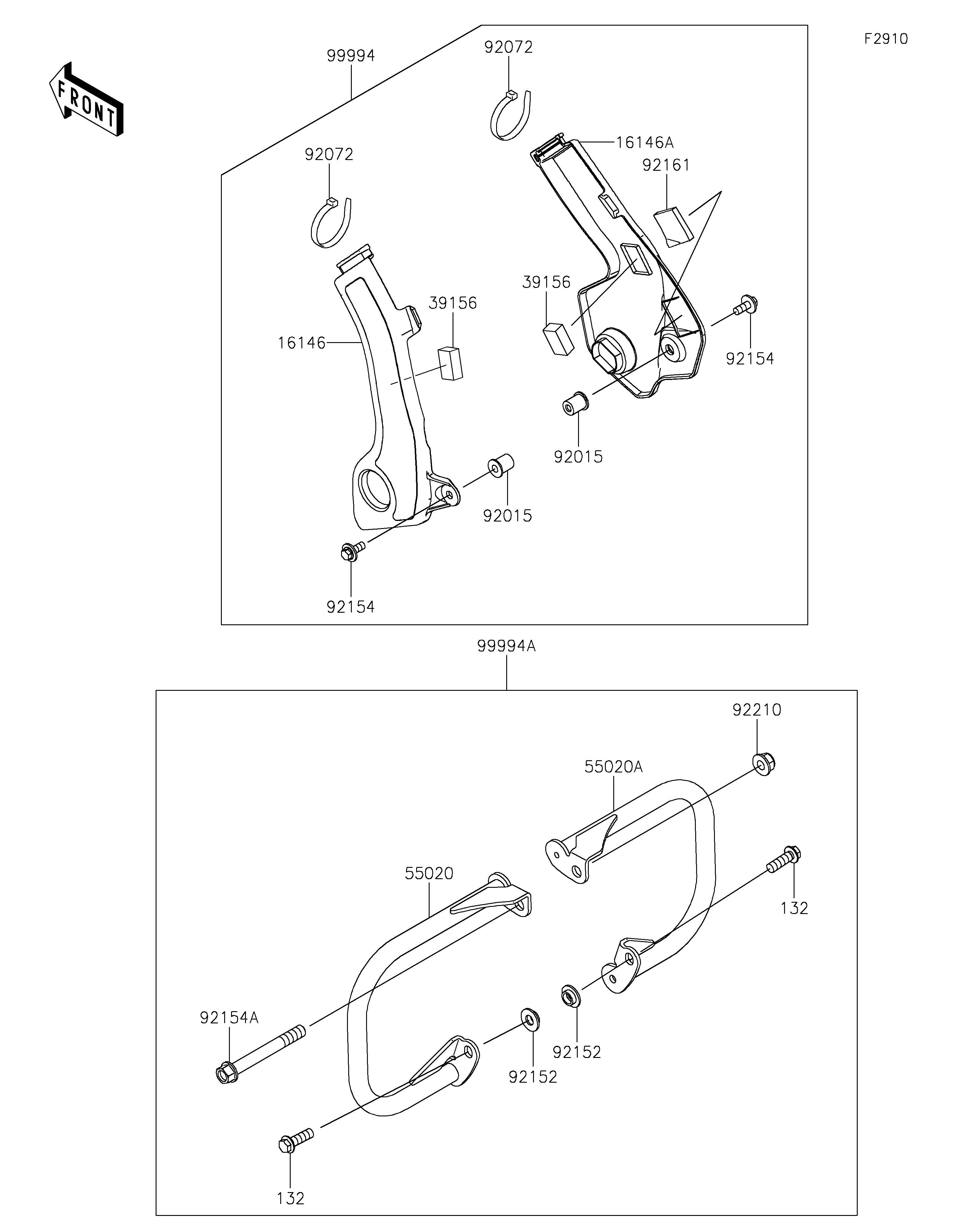

2027 KLX®230 S ABS - Accessory(Guard)

DOWNLOAD PDF
SELECT A NEW PART
16146
16146A
39156
39156
55020
55020A
92015
92015
92072
92072
92152
92152
92154
92154
92154A
92161
92210
99994
99994A
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-ASSY,FRAME,LH 16146 16146-0867 1
COVER-ASSY,FRAME,RH 16146A 16146-0868 1
PAD,15X25X10 39156 39156-2489 2
GUARD,LH,P.SILVER 55020 55020-2562-458 1
GUARD,RH,P.SILVER 55020A 55020-2563-458 1
NUT 92015 92015-1700 2
BAND,L=202 92072 92072-1195 2
COLLAR 92152 92152-3859 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 2
BOLT,FLANGED,10X85 92154A 92154-4039 1
DAMPER 92161 92161-1591 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
COVER-FRAME 99994 99994-1466 1
ENGINE GUARD,P.SILVER 99994A 99994-2050-458 1
BOLT-FLANGED-SMALL,8X25 132 132BA0825 2
