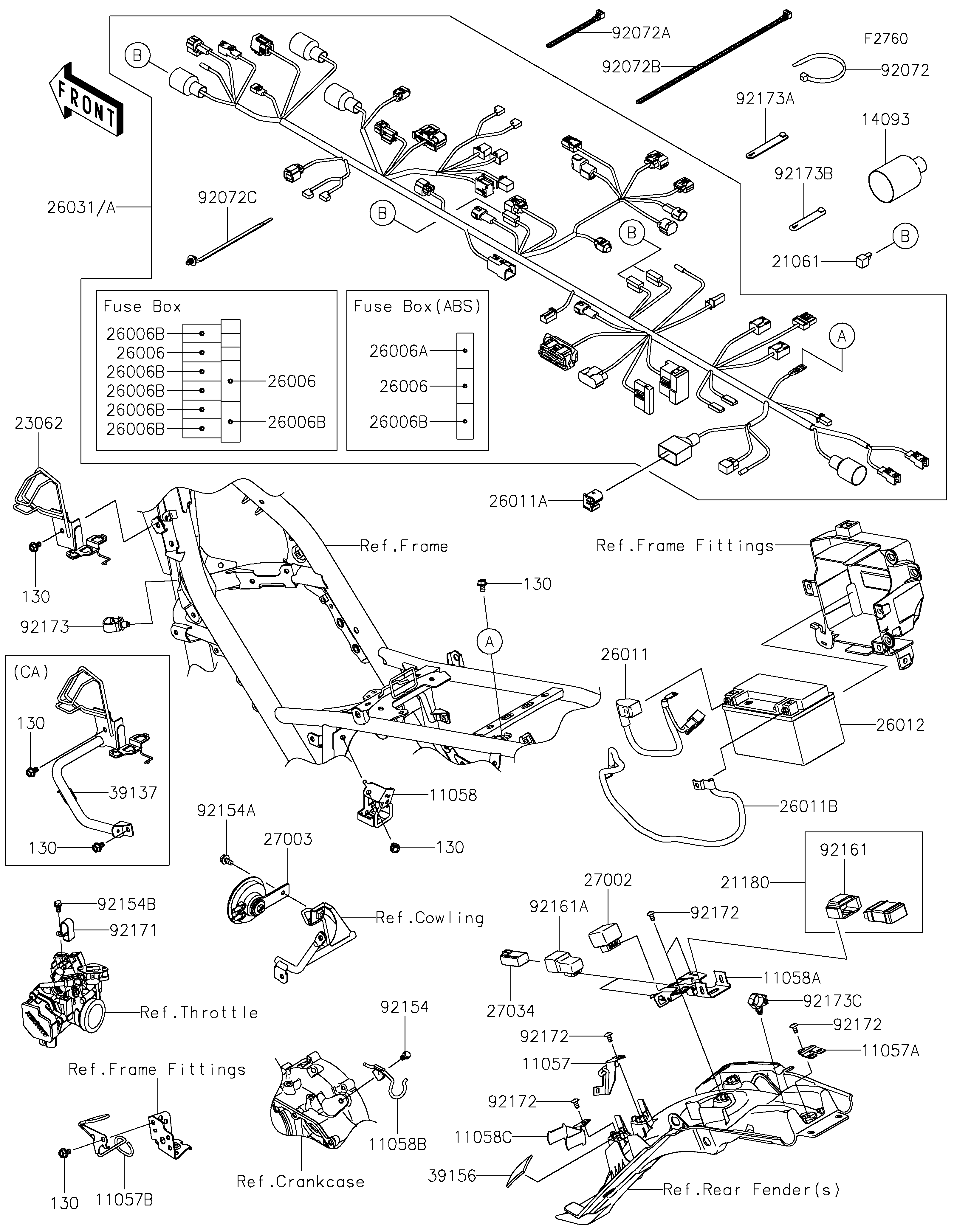

2027 KLX230 S ABS - Chassis Electrical Equipment
11057
11057
11057A
11057A
11057B
11057B
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
14093
14093
21061
21061
21180
21180
23062
23062
26006
26006
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26031
26031
26031A
26031A
27002
27002
27003
27003
27034
27034
39137
39137
39156
39156
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92161A
92171
92171
92172
92172
92172
92172
92172
92172
92172
92172
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
130
130
130
130
130
130
130
130
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FUSE BOX | 11057 | 11057-2350 | 1 | ||
| BRACKET,RR HARNESS | 11057A | 11057-2351 | 1 | ||
| BRACKET | 11057B | 11057-2463 | 1 | ||
| BRACKET | 11058 | 11058-1293 | 1 | ||
| BRACKET | 11058A | 11058-1299 | 1 | ||
| BRACKET | 11058B | 11058-7089 | 1 | ||
| BRACKET | 11058C | 11058-7281 | 1 | ||
| COVER,HARNESS | 14093 | 14093-0720 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 4 | ||
| TRANSCEIVER,BLUETOOTH | 21180 | 21180-0013 | 1 | ||
| BRACKET-COMP | 23062 | 23062-1511 | 1 | CN,US | |
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 3 | ||
| FUSE,MINI BLADE,1A | 26006A | 26006-0037 | 1 | ||
| FUSE,MINI BLADE,10A,RED | 26006B | 26006-1078 | 7 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-2455 | 1 | ||
| WIRE-LEAD,DIAG CONNECTOR | 26011A | 26011-2468 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011B | 26011-2588 | 1 | ||
| BATTERY,YTX7A-BS,12V 6.3AH | 26012 | 26012-1599 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-7184 | 1 | CN,US | |
| HARNESS,MAIN | 26031A | 26031-7437 | 1 | CA | |
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-0020 | 1 | ||
| HORN | 27003 | 27003-0166 | 1 | ||
| RELAY | 27034 | 27034-0012 | 2 | ||
| STAY-COMP | 39137 | 39137-0746 | 1 | CA | |
| PAD,55X30X5 | 39156 | 39156-2451 | 1 | ||
| BAND,L=152 | 92072 | 92072-0948 | 1 | ||
| BAND,L=140 | 92072A | 92072-0949 | 1 | ||
| BAND,L=250 | 92072B | 92072-0950 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072C | 92072-1414 | AR | ||
| BOLT,FLANGED,6X12 | 92154 | 92154-1776 | 1 | ||
| BOLT,FLANGED,6X12 | 92154A | 92154-2776 | 1 | ||
| BOLT,FLANGED,6X10 | 92154B | 92154-7280 | 1 | ||
| DAMPER | 92161 | 92161-2516 | 1 | ||
| DAMPER,RELAY | 92161A | 92161-2546 | 2 | ||
| CLAMP | 92171 | 92171-0911 | 1 | ||
| SCREW,CROS,5X10 | 92172 | 92172-1255 | 5 | ||
| CLAMP | 92173 | 92173-0861 | 1 | ||
| CLAMP | 92173A | 92173-2194 | 1 | ||
| CLAMP | 92173B | 92173-2199 | 2 | ||
| CLAMP | 92173C | 92173-2737 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 5 | CA | |
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 4 | CN,US |
