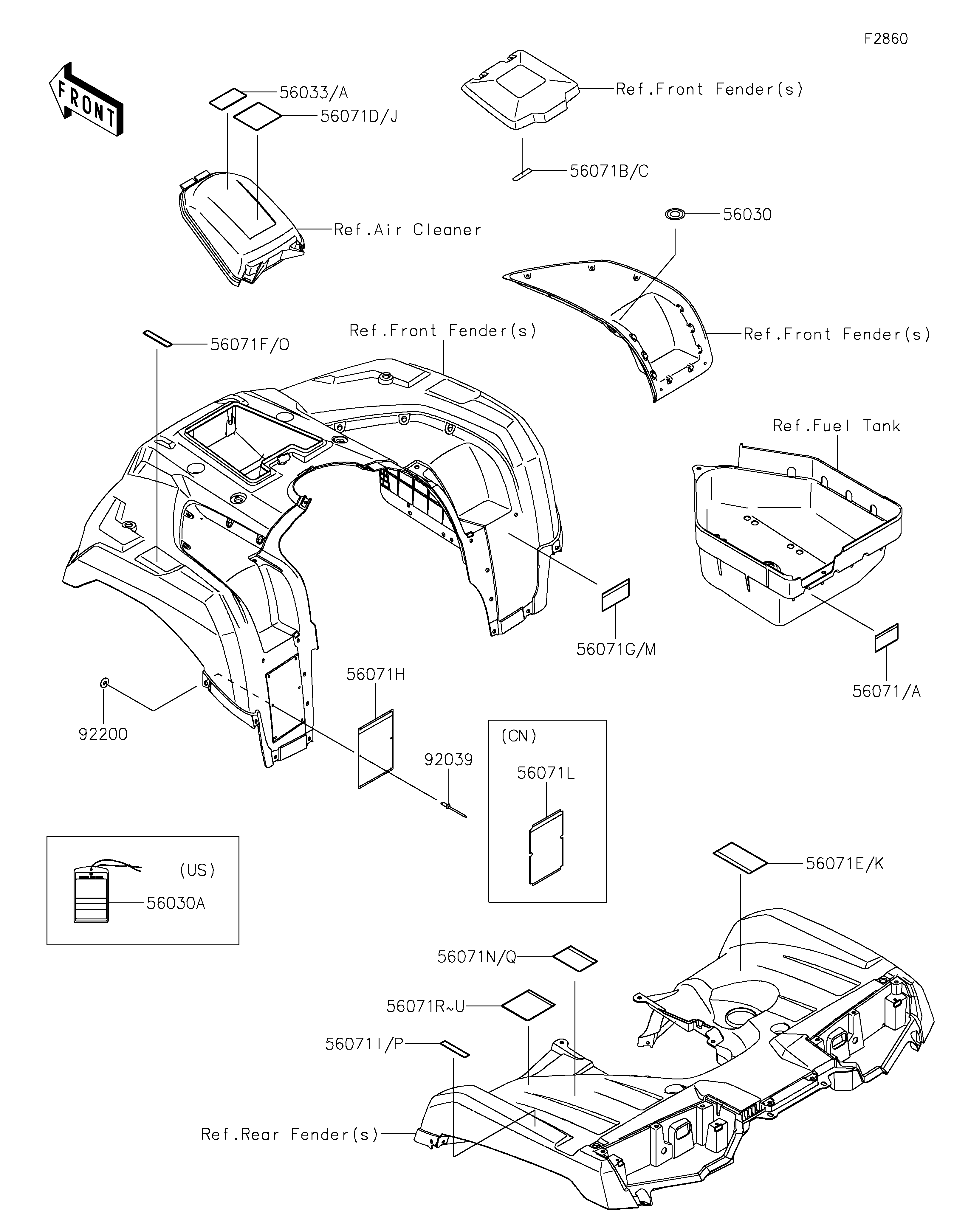

Parts Diagrams |
56030
56030A
56033
56071
56071B
56071D
56071E
56071F
56071G
56071H
56071I
56071Q
56071R
56071S
92039
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 56030 | 56030-0018 | 1 | ||
| LABEL,HANGTAG | 56030A | 56030-0194 | 1 | ||
| LABEL-MANUAL,AIR CLEANER | 56033 | 56033-1504 | 1 | ||
| LABEL-WARNING,TOWING | 56071 | 56071-0079 | 1 | ||
| LABEL-WARNING,STORAGE | 56071B | 56071-0199 | 1 | ||
| LABEL-WARNING,UNDER 16 | 56071D | 56071-1232 | 1 | ||
| LABEL-WARNING,DRIVE BELT | 56071E | 56071-1233 | 1 | ||
| LABEL-WARNING,MAX LOAD 40KG | 56071F | 56071-1234 | 1 | ||
| LABEL-WARNING,SHIFT LEVER | 56071G | 56071-1236 | 1 | ||
| LABEL-WARNING,SERIOUS INJURY | 56071H | 56071-1237 | 1 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56071I | 56071-1238 | 1 | ||
| LABEL-WARNING,NO PASSENGER | 56071Q | 56071-1257 | 1 | ||
| LABEL-WARNING,TIRE&LOAD | 56071R | 56071-1432 | 1 | ||
| LABEL-WARNING,TIRE&LOAD(F) | 56071S | 56071-1433 | 1 | CN | |
| RIVET,3.2X8 | 92039 | 92039-3763 | 6 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 6 |
