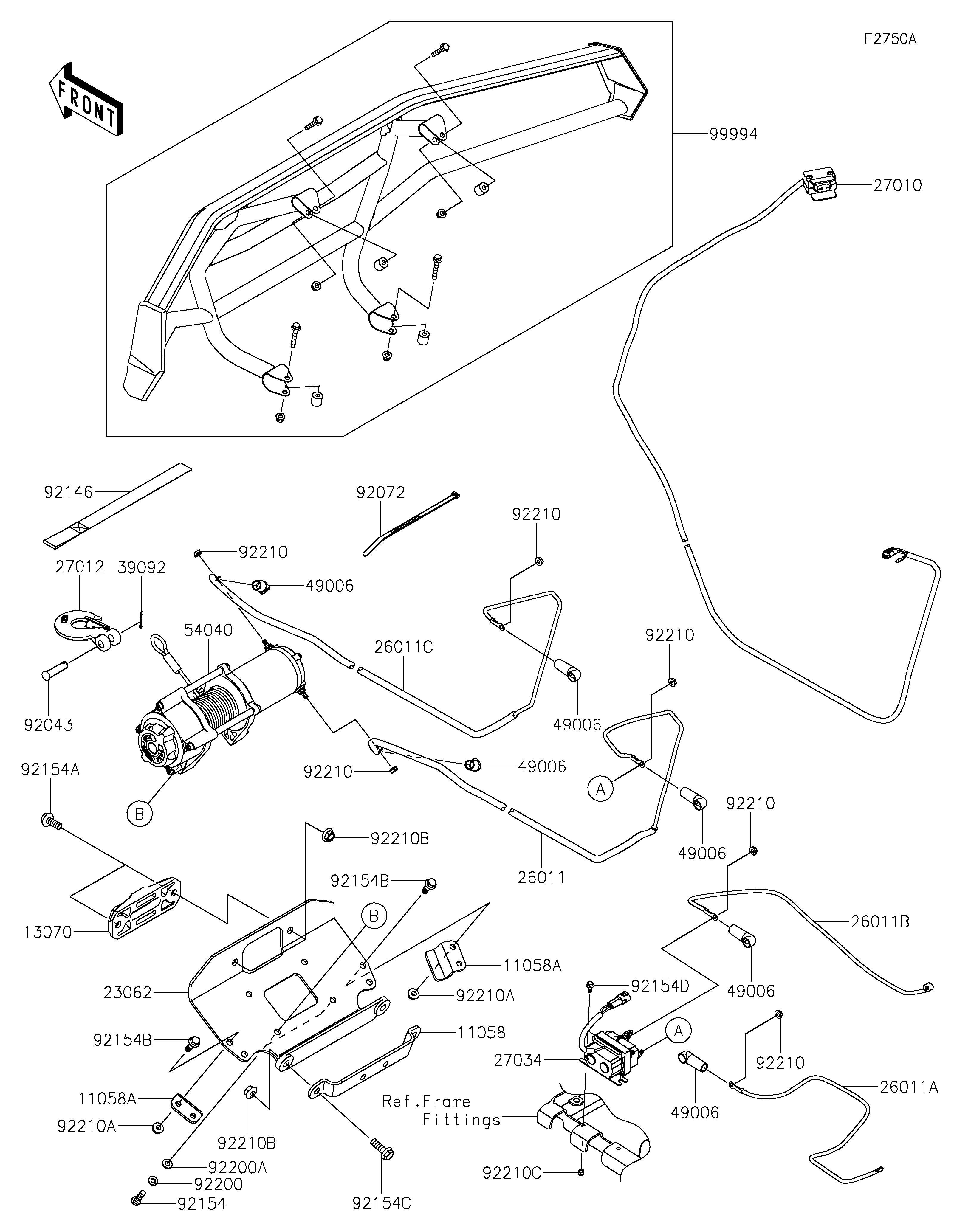

2027 BRUTE FORCE® 750 SE EPS - Other(SVFNN)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058A
13070
23062
26011
26011A
26011B
26011C
27010
27012
27034
39092
49006
49006
49006
49006
49006
49006
54040
92043
92072
92146
92154
92154A
92154B
92154B
92154C
92154D
92200
92200A
92210
92210
92210
92210
92210
92210
92210A
92210A
92210B
92210B
92210C
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,WINCH MOUNT,BACK 11058 11058-7322 1
BRACKET,WINCH MOUNT,SIDE 11058A 11058-7323 2
GUIDE,FAIRLEAD 13070 13070-1598 1
BRACKET-COMP,WINCH MOUNT 23062 23062-1718 1
WIRE-LEAD,BLUE 26011 26011-2584 1
WIRE-LEAD,RED 26011A 26011-2585 1
WIRE-LEAD,BLACK 26011B 26011-2586 1
WIRE-LEAD,YELLOW 26011C 26011-2587 1
SWITCH,HANDLEBAR 27010 27010-1572 1
HOOK 27012 27012-0989 1
RELAY,CONTACTOR 27034 27034-0032 1
PIN-HAIR 39092 39092-0005 1
BOOT 49006 49006-0687 6
WINCH,2500LBS 54040 54040-0016 1
PIN,11.2X40.1 92043 92043-1949 1
BAND,L=188 92072 92072-1239 1
STRAP,HOOK 92146 92146-0015 1
BOLT,8X25 92154 92154-7901 4
BOLT,FLANGED,10X25 92154A 92154-7902 2
BOLT,FLANGED,8X25 92154B 92154-7903 4
BOLT,FLANGED,10X30 92154C 92154-7904 2
BOLT,FLANGED,5X12 92154D 92154-7939 2
WASHER,SPRING,8X15.4X2.1 92200 92200-2887 4
WASHER,8X16X1.6 92200A 92200-2961 4
NUT,FLANGED,6MM 92210 92210-2365 6
NUT,FLANGED,8MM 92210A 92210-2366 4
NUT,FLANGED,10MM 92210B 92210-2367 4
NUT,LOCK,5MM 92210C 92210-2392 2
BRUSH GUARD 99994 99994-2655 1
