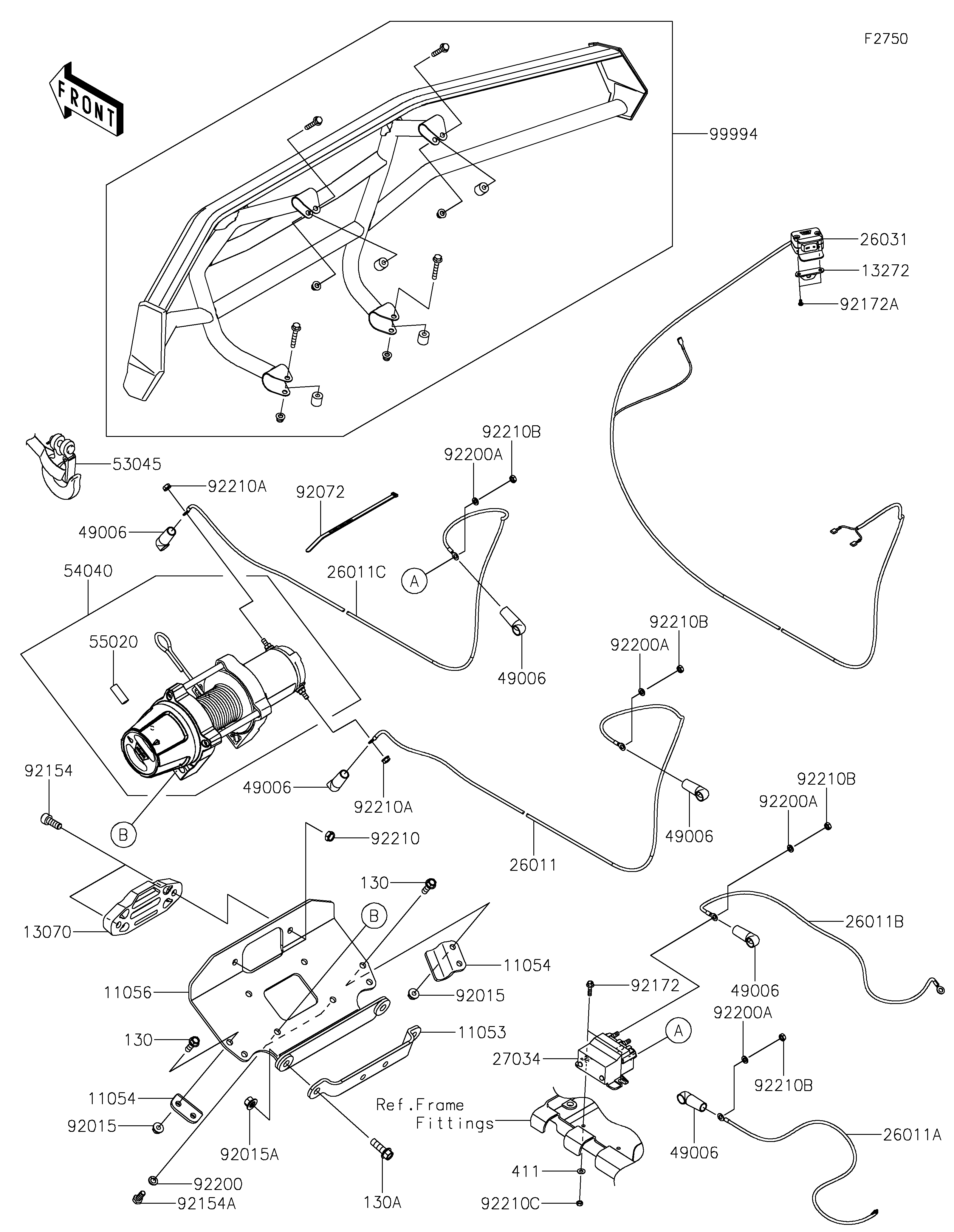

2026 BRUTE FORCE® 750 SE EPS - Other(STFNN)

DOWNLOAD PDF
SELECT A NEW PART
11053
11054
11054
11056
13070
13272
26011
26011A
26011B
26011C
26031
27034
49006
49006
49006
49006
49006
49006
53045
54040
55020
92015
92015
92015A
92072
92154
92154A
92172
92172A
92200
92200A
92200A
92200A
92200A
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210C
99994
130
130
130A
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,WINCH MOUNT,BACK 11053 11053-1336 1
BRACKET,WINCH MOUNT,SIDE 11054 11054-1633 2
BRACKET,WINCH MOUNT 11056 11056-1489 1
GUIDE,FAIRLEAD 13070 13070-1567 1
PLATE,HANDLEBAR SWITCH 13272 13272-3847 1
WIRE-LEAD,BLUE 26011 26011-1960 1
WIRE-LEAD,RED 26011A 26011-1972 1
WIRE-LEAD,BLACK 26011B 26011-1973 1
WIRE-LEAD,YELLOW 26011C 26011-1974 1
HARNESS,HANDLEBAR SWITCH 26031 26031-7354 1
RELAY,CONTACTOR 27034 27034-0008 1
BOOT 49006 49006-0601 6
HOOK-ASSY 53045 53045-0050 1
WINCH,VRX25-S 54040 54040-0019 1
GUARD,CABLE CHAFE 55020 55020-2588 1
NUT,FLANGED,8MM 92015 92015-1406 4
NUT,FLANGED,10MM 92015A 92015-1727 2
BAND,L=292.1 92072 92072-3509 4
BOLT,10X25 92154 92154-4277 2
BOLT,8X25 92154A 92154-7856 4
SCREW,FLANGED,5X20 92172 92172-1422 2
SCREW 92172A 92172-1683 2
WASHER,8 LOCK 92200 92200-2867 4
WASHER,6 LOCK 92200A 92200-2868 4
NUT,LOCK,M10 92210 92210-1432 2
NUT,FLANGED,6MM 92210A 92210-1863 2
NUT,M6X1.00 92210B 92210-2342 4
NUT,M5X0.80 92210C 92210-2376 2
BRUSH GUARD 99994 99994-1948 1
BOLT-FLANGED,8X25 130 130BB0825 4
BOLT-FLANGED,10X30 130A 130BB1030 2
WASHER-PLAIN,5MM 411 411AA0500 2
