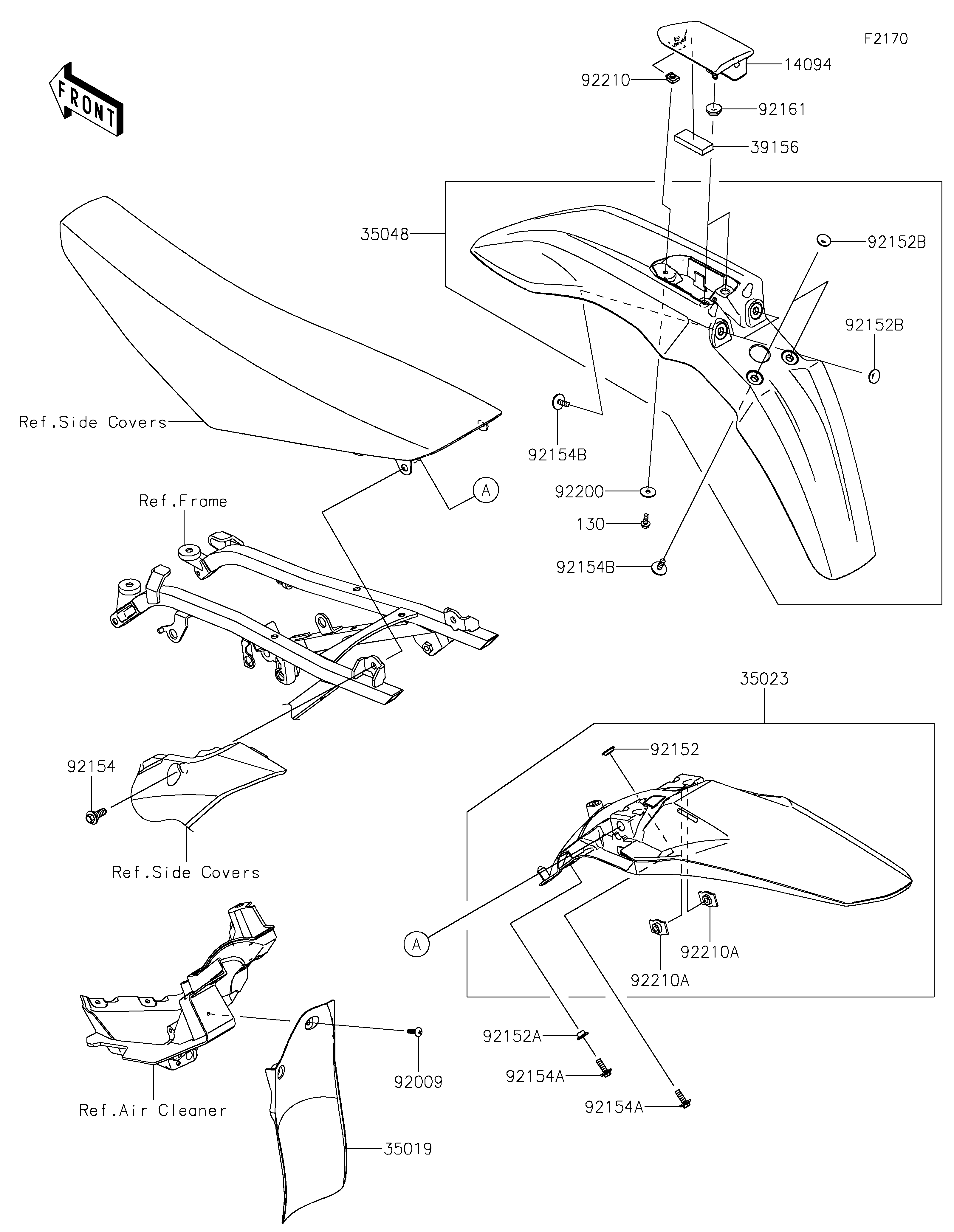

2027 KX™250F - Fenders

DOWNLOAD PDF
SELECT A NEW PART
14094
35019
35023
35048
39156
92009
92152
92152A
92152B
92152B
92154
92154A
92154A
92154B
92154B
92161
92200
92210
92210A
92210A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FR FENDER,L.GREEN 14094 14094-0536-290 1
FLAP 35019 35019-0700 1
FENDER-REAR,L.GREEN 35023 35023-0495-290 1
FENDER-FRONT,L.GREEN 35048 35048-0004-290 1
PAD,20X50X8 39156 39156-2163 1
SCREW,TAPPING,5X20 92009 92009-1993 2
COLLAR 92152 92152-0052 1
COLLAR 92152A 92152-0422 1
COLLAR 92152B 92152-1422 4
BOLT,STEPPED,8X23 92154 92154-2961 2
BOLT,FLANGED,6X20 92154A 92154-2972 2
BOLT,6X18 92154B 92154-2973 4
DAMPER 92161 92161-1531 2
WASHER,5.5X20X1.2 92200 92200-0284 1
NUT 92210 92210-0571 1
NUT,8MM 92210A 92210-1635 2
BOLT-FLANGED,5X14 130 130BA0514 1
