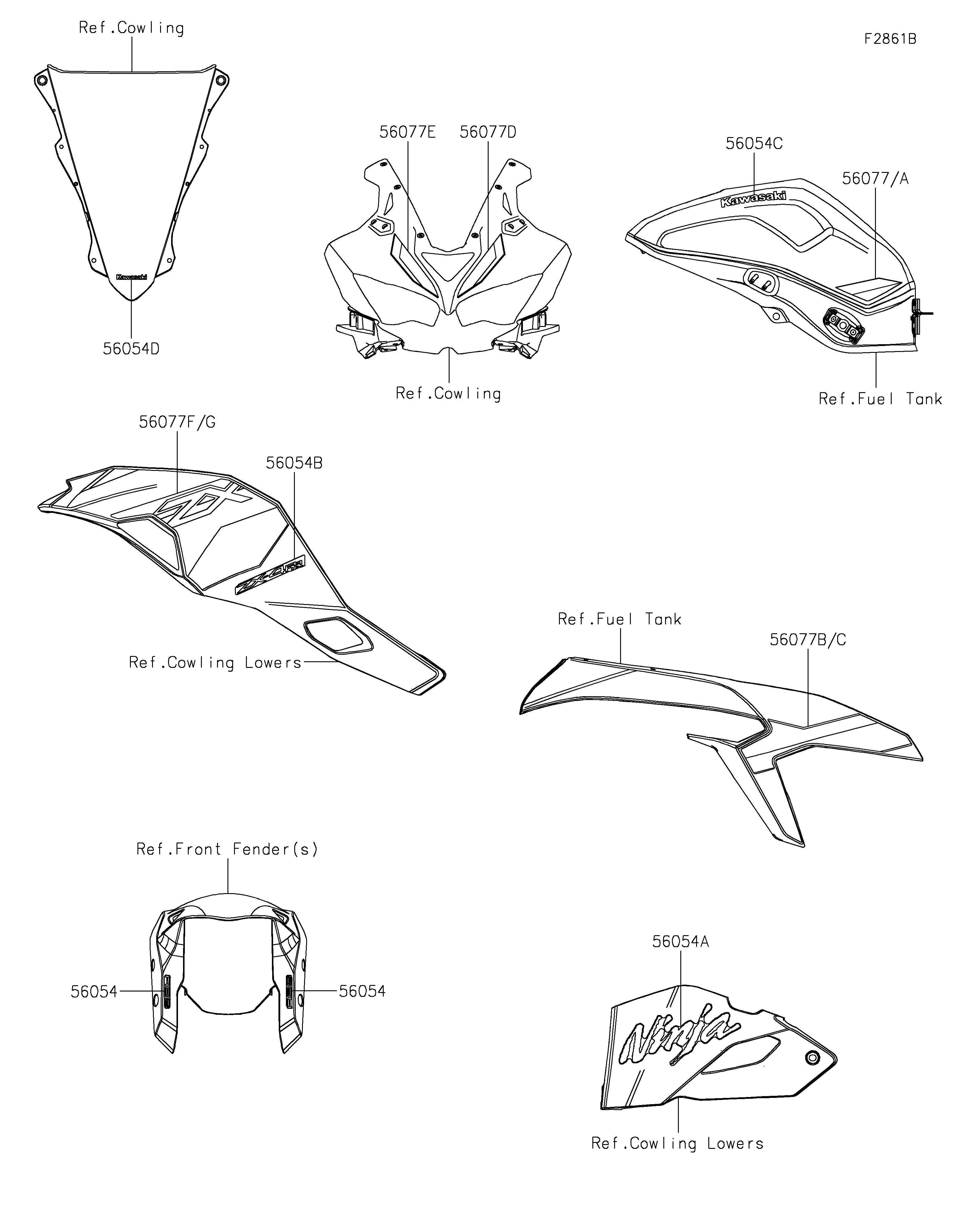

2026 NINJA® ZX™-4RR ABS - Decals(Green)(STFAN-SVFAL)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ABS | 56054 | 56054-1412 | 2 | ||
| MARK,LWR COWL.,NINJA | 56054A | 56054-4454 | 2 | ||
| MARK,SIDE COWL.,ZX-4RR | 56054B | 56054-4463 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56054C | 56054-4485 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054D | 56054-4495 | 1 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-4022 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-4023 | 1 | ||
| PATTERN,KNEE GRIP COVER,LH | 56077B | 56077-4024 | 1 | ||
| PATTERN,KNEE GRIP COVER,RH | 56077C | 56077-4025 | 1 | ||
| PATTERN,UPP COWL.,LH | 56077D | 56077-4026 | 1 | ||
| PATTERN,UPP COWL.,RH | 56077E | 56077-4027 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56077F | 56077-4028 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56077G | 56077-4029 | 1 |
| MARK,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,NINJA | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,ZX-4RR | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,KNEE GRIP COVER,LH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,KNEE GRIP COVER,RH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
