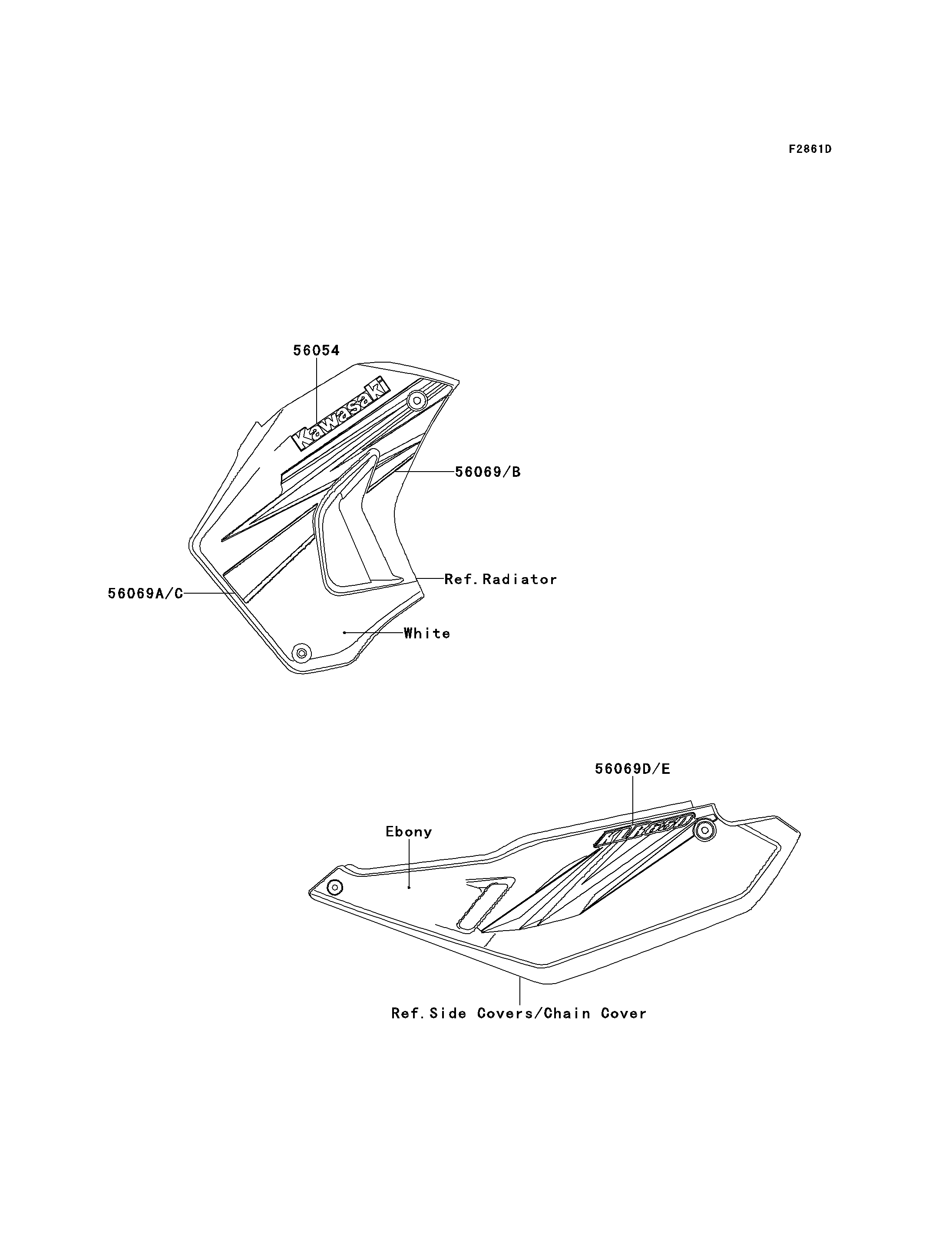

2012 KLR™650 - Decals(M.I.Blue)(ECF)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SHROUD,KAWASAKI | 56054 | 56054-0667 | 2 | CAUS | |
| PATTERN,SHROUD,UPP,LH | 56069 | 56069-1580 | 1 | CAUS | |
| PATTERN,SHROUD,LWR,LH | 56069A | 56069-1581 | 1 | CAUS | |
| PATTERN,SHROUD,UPP,RH | 56069B | 56069-1582 | 1 | CAUS | |
| PATTERN,SHROUD,LWR,RH | 56069C | 56069-1583 | 1 | CAUS | |
| PATTERN,SIDE COVER,LH | 56069D | 56069-1584 | 1 | CAUS | |
| PATTERN,SIDE COVER,RH | 56069E | 56069-1585 | 1 | CAUS |
| MARK,SHROUD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SHROUD,UPP,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SHROUD,LWR,LH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SHROUD,UPP,RH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SHROUD,LWR,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
