Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

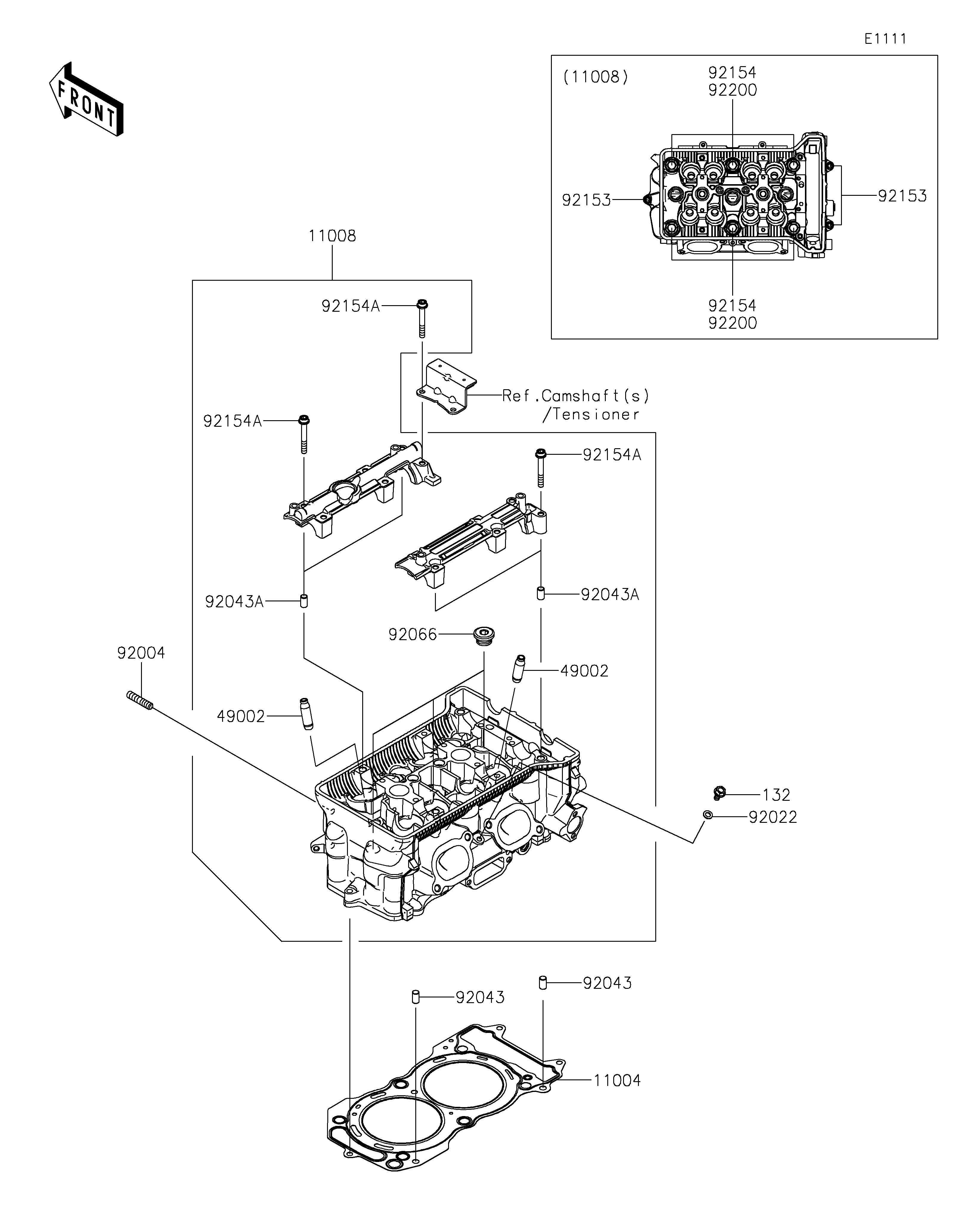

11004
11008
49002
49002
92004
92022
92043
92043
92043A
92043A
92066
92153
92153
92154
92154
92154A
92154A
92154A
92200
92200
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 11004 | 11004-0809 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-1589 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-0709 | 8 | ||
| STUD,8X22 | 92004 | 92004-1217 | 8 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| PIN,8X14 | 92043 | 92043-1567 | 2 | ||
| PIN,DOWEL,6.3X8X14 | 92043A | 92043-1827 | 4 | ||
| PLUG,18X12 | 92066 | 92066-1632 | 3 | ||
| BOLT,6X95 | 92153 | 92153-0320 | 3 | ||
| BOLT,11X157 | 92154 | 92154-3931 | 6 | ||
| BOLT,SOCKET,6X45 | 92154A | 92154-7450 | 12 | ||
| WASHER,11.5X20.5X3.2 | 92200 | 92200-0727 | 6 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 |
