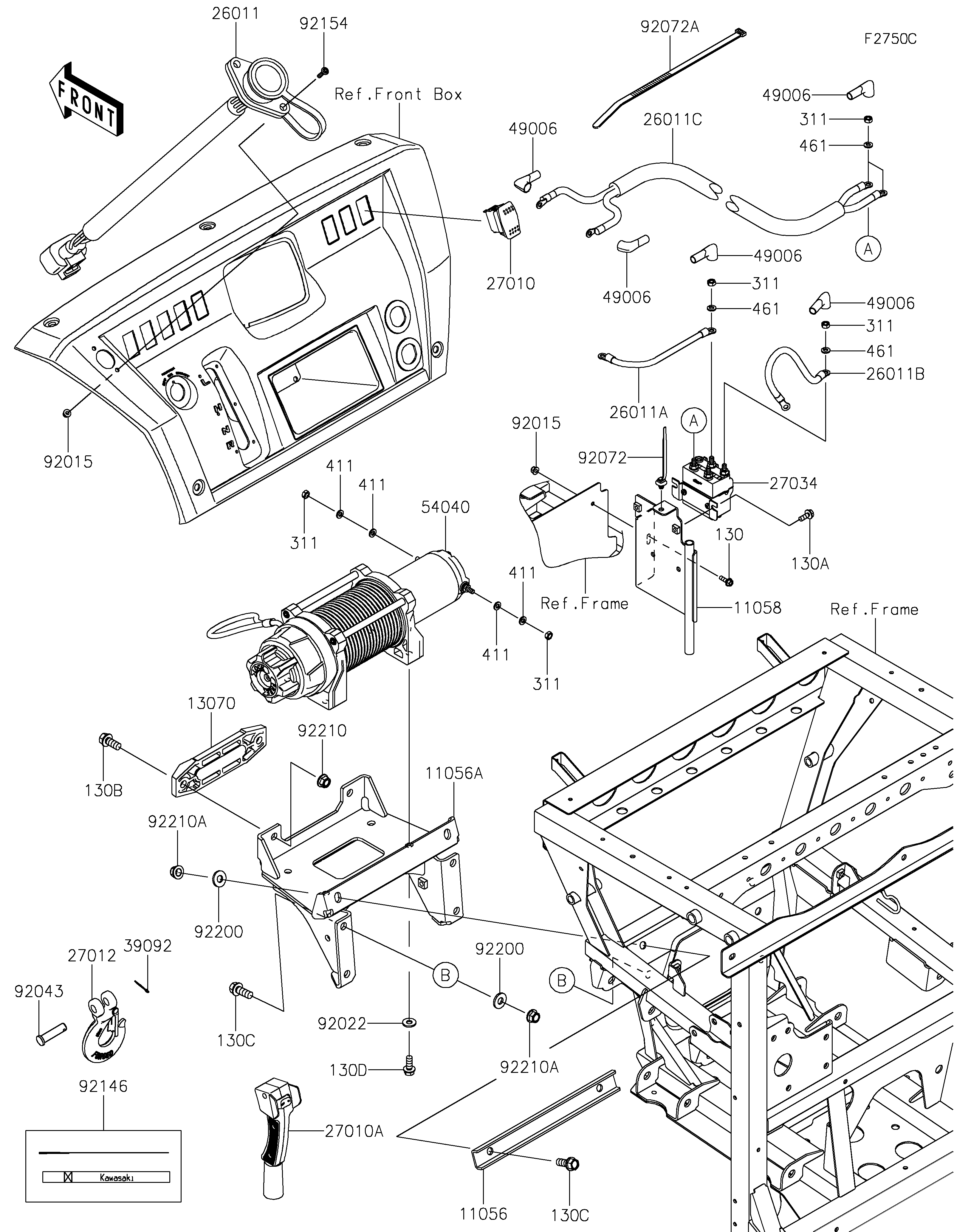

2027 MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION - Other(Winch)(DVFNN/DVFNL)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11058
13070
26011
26011A
26011B
26011C
27010
27010A
27012
39092
27034
49006
49006
49006
49006
49006
54040
92015
92015
92022
92043
92072
92072A
92146
92154
92200
92200
92210
92210A
92210A
130
130A
130B
130C
130C
130D
311
311
311
311
311
411
411
411
411
461
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-4074 1
BRACKET,WINCH 11056A 11056-7783 1
BRACKET 11058 11058-0997 1
GUIDE 13070 13070-1602 1
WIRE-LEAD,REMOTE SWITCH 26011 26011-2589 1
WIRE-LEAD,RED 26011A 26011-2617 1
WIRE-LEAD,BLACK 26011B 26011-2623 1
WIRE-LEAD,BLUE/YELLOW 26011C 26011-2624 1
SWITCH,CARLING 27010 27010-1512 1
SWITCH,REMOTE 27010A 27010-1573 1
HOOK 27012 27012-0989 1
PIN-HAIR 39092 39092-0005 1
RELAY,CONTROLLER 27034 27034-0018 1
BOOT 49006 49006-0687 6
WINCH 54040 54040-0018 1
NUT,LOCK,FLANGED,5MM 92015 92015-1752 3
WASHER,8.2X19X2 92022 92022-1533 4
PIN,11.2X40.1 92043 92043-1949 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
BAND,L=292.1 92072A 92072-3509 5
STRAP,HOOK 92146 92146-0015 1
BOLT,SOCKET,5X20 92154 92154-0829 2
WASHER,10.2X23X2.5 92200 92200-7506 6
NUT,LOCK,FLANGED,10MM 92210 92210-0276 2
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 6
BOLT-FLANGED,5X16 130 130BA0516 1
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,10X22 130B 130BB1022 2
BOLT-FLANGED,10X25 130C 130BB1025 6
BOLT-FLANGED,8X20 130D 130CA0820 4
NUT-HEX,6MM 311 311BA0600 6
WASHER-PLAIN,6MM 411 411AB0600 4
WASHER-SPRING,6MM 461 461DA0600 4
