Parts Diagrams |

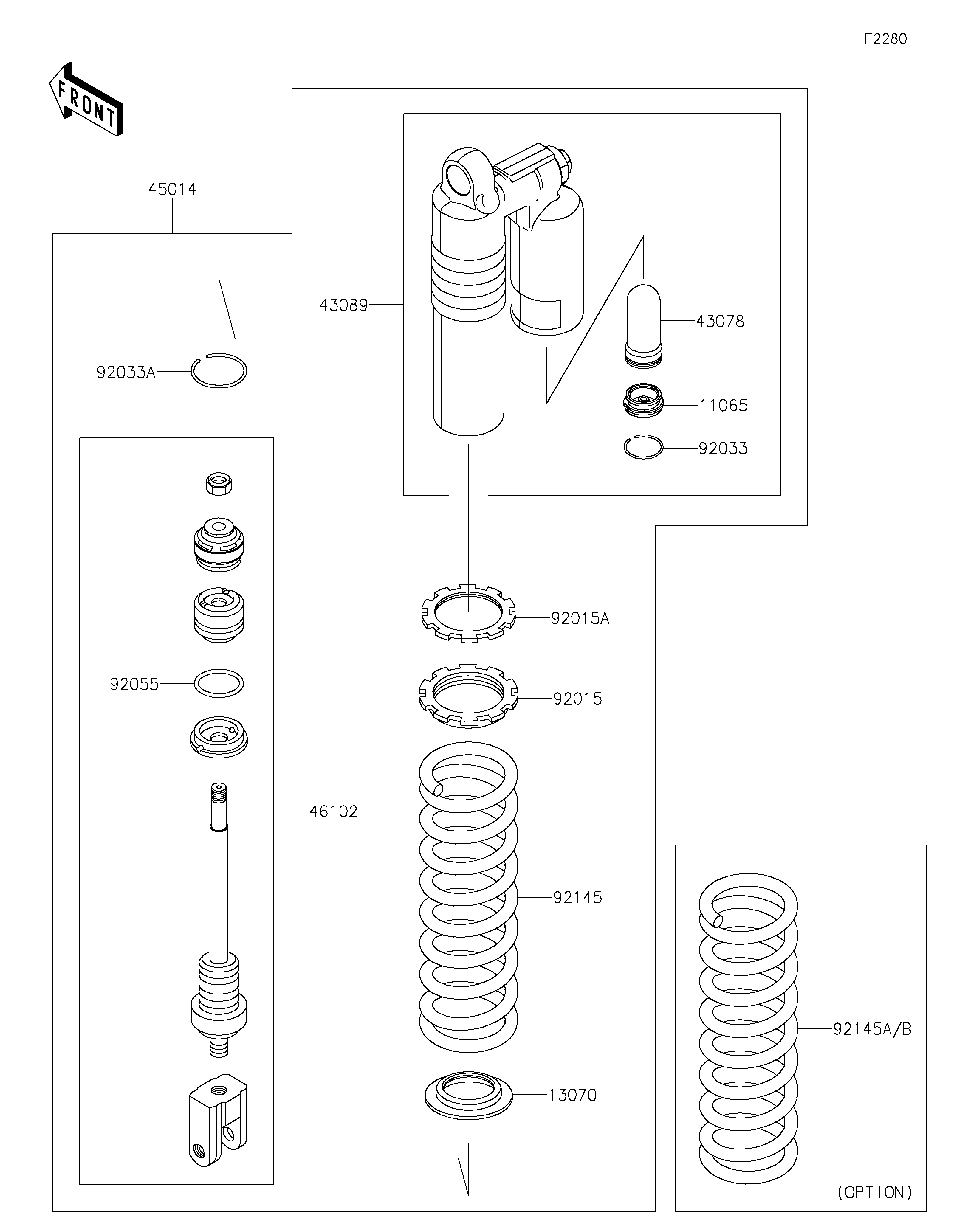

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RESERVOIR | 11065 | 11065-1310 | 1 | ||
| GUIDE,SPRING | 13070 | 13070-1165 | 1 | ||
| RESERVOIR,SHOCKABSORBER | 43078 | 43078-1112 | 1 | ||
| CYLINDER-SHOCKABSORBER | 43089 | 43089-0041 | 1 | ||
| SHOCKABSORBER | 45014 | 45014-0956 | 1 | ||
| ROD | 46102 | 46102-0727 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1679 | 1 | ||
| NUT,SPRING ADJUST LOCK | 92015A | 92015-1713 | 1 | ||
| RING-SNAP,REARSHOCK | 92033 | 92033-1091 | 1 | ||
| RING-SNAP | 92033A | 92033-1206 | 1 | ||
| RING-O,ROD | 92055 | 92055-1181 | 1 | ||
| SPRING,SHOCK,K=51N/MM,BLACK | 92145 | 92145-2473-10 | 1 | ||
| SPRING,SHOCK,K=49N/MM,BLACK | 92145A | 92145-2476-10 | 1 | (OPTION) | |
| SPRING,SHOCK,K=53N/MM,BLACK | 92145B | 92145-2477-10 | 1 | (OPTION) |
| CAP,RESERVOIR | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR,SHOCKABSORBER | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-SHOCKABSORBER | |
| REF # | 43089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST LOCK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,REARSHOCK | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ROD | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCK,K=51N/MM,BLACK | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCK,K=49N/MM,BLACK | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCK,K=53N/MM,BLACK | |
| REF # | 92145B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
