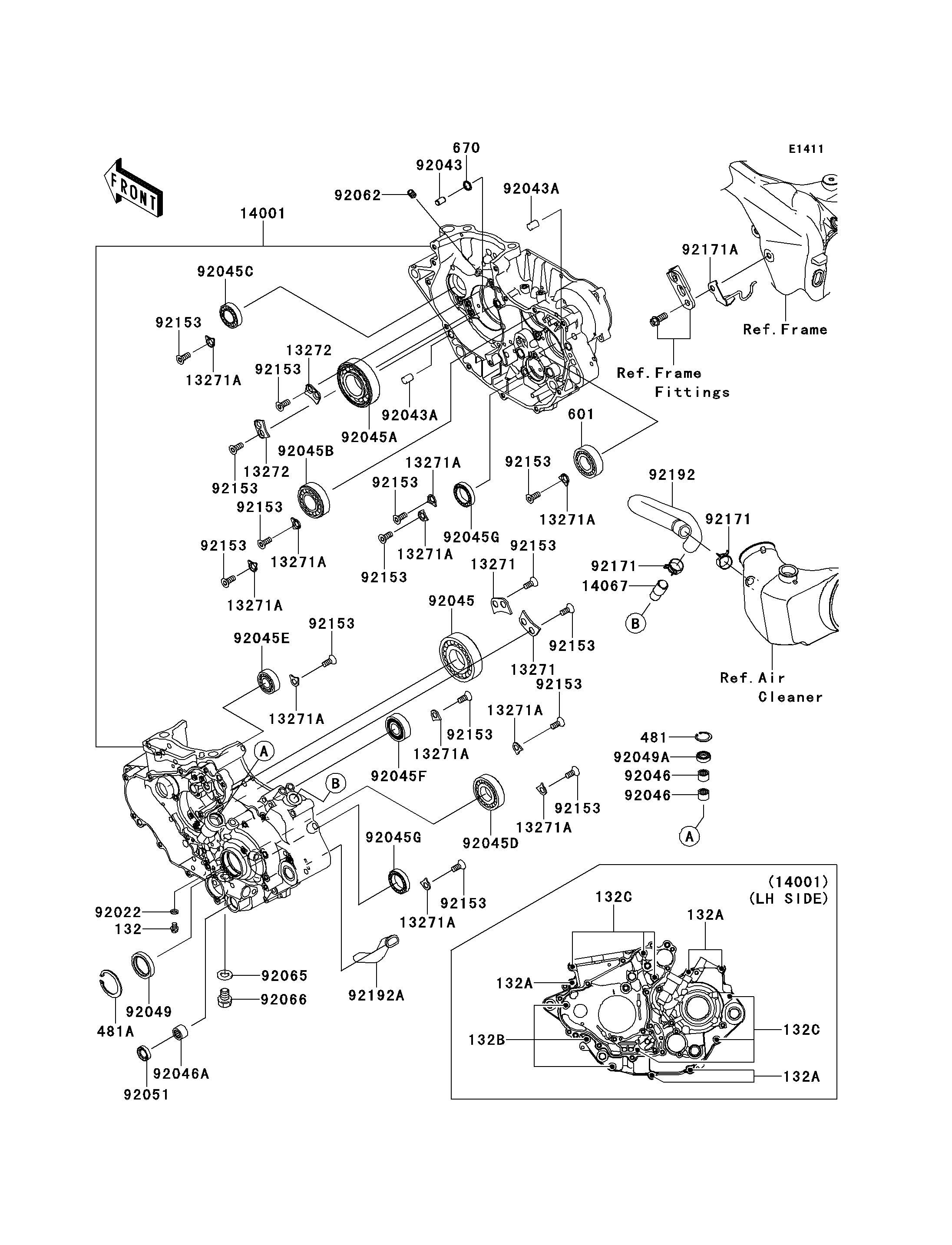

Parts Diagrams |
132
132A
132A
132A
132B
132C
132C
481
481A
601
670
13271
13271
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13272
13272
14001
14067
92022
92043
92043A
92043A
92045
92045A
92045B
92045C
92045D
92045E
92045F
92045G
92045G
92046
92046
92046A
92049
92049A
92051
92062
92065
92066
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92171
92171
92171A
92192
92192A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X8 | 132 | 132BB0608 | 1 | ||
| BOLT-FLANGED-SMALL,6X50 | 132A | 132BD0650 | 5 | ||
| BOLT-FLANGED-SMALL,6X60 | 132B | 132BD0660 | 3 | ||
| BOLT-FLANGED-SMALL,6X80 | 132C | 132BD0680 | 6 | ||
| CIRCLIP | 481 | 481J2100 | 1 | ||
| CIRCLIP-TYPE-C,40MM | 481A | 481J4000 | 1 | ||
| BEARING-BALL,#6204 | 601 | 601A6204 | 1 | ||
| O RING,8MM | 670 | 670D1508 | 1 | ||
| PLATE | 13271 | 13271-0334 | 2 | ||
| PLATE | 13271A | 13271-0345 | 11 | ||
| PLATE | 13272 | 13272-0494 | 2 | ||
| SET-CRANKCASE | 14001 | 14001-0573 | 1 | ||
| FITTING,BREATHER | 14067 | 14067-006 | 1 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| PIN,8X14 | 92043 | 92043-0130 | 1 | ||
| PIN,10X14 | 92043A | 92043-1506 | 2 | ||
| BEARING-BALL,B32-32U-A-EC4 UR5 | 92045 | 92045-0024 | 1 | ||
| BEARING-BALL,B32-32-A-DUX8EC4 | 92045A | 92045-0031 | 1 | ||
| BEARING-BALL,25X52X15 | 92045B | 92045-0035 | 1 | ||
| BEARING-BALL,6904C3UR5 | 92045C | 92045-0038 | 1 | ||
| BEARING-BALL,25X62X17 | 92045D | 92045-0056 | 1 | ||
| BEARING-BALL,6202SH2C3 | 92045E | 92045-0079 | 1 | ||
| BEARING-BALL,3TM-5X0391LUC3 | 92045F | 92045-0082 | 1 | ||
| BEARING-BALL,6805JRZ | 92045G | 92045-1432 | 2 | ||
| BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 2 | ||
| BEARING-NEEDLE,HK1312 | 92046A | 92046-1148 | 1 | ||
| SEAL-OIL,TC 30 40 7 | 92049 | 92049-0030 | 1 | ||
| SEAL-OIL,CLUTCH RELEASE | 92049A | 92049-1475 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| NOZZLE,6X8,GREEN | 92062 | 92062-1078 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
| BOLT,6X15 | 92153 | 92153-0848 | 19 | ||
| CLAMP | 92171 | 92171-0862 | 2 | ||
| CLAMP | 92171A | 92171-0879 | 1 | ||
| TUBE,BREATHER | 92192 | 92192-0432 | 1 | ||
| TUBE,OIL RETURN | 92192A | 92192-1035 | 1 |
