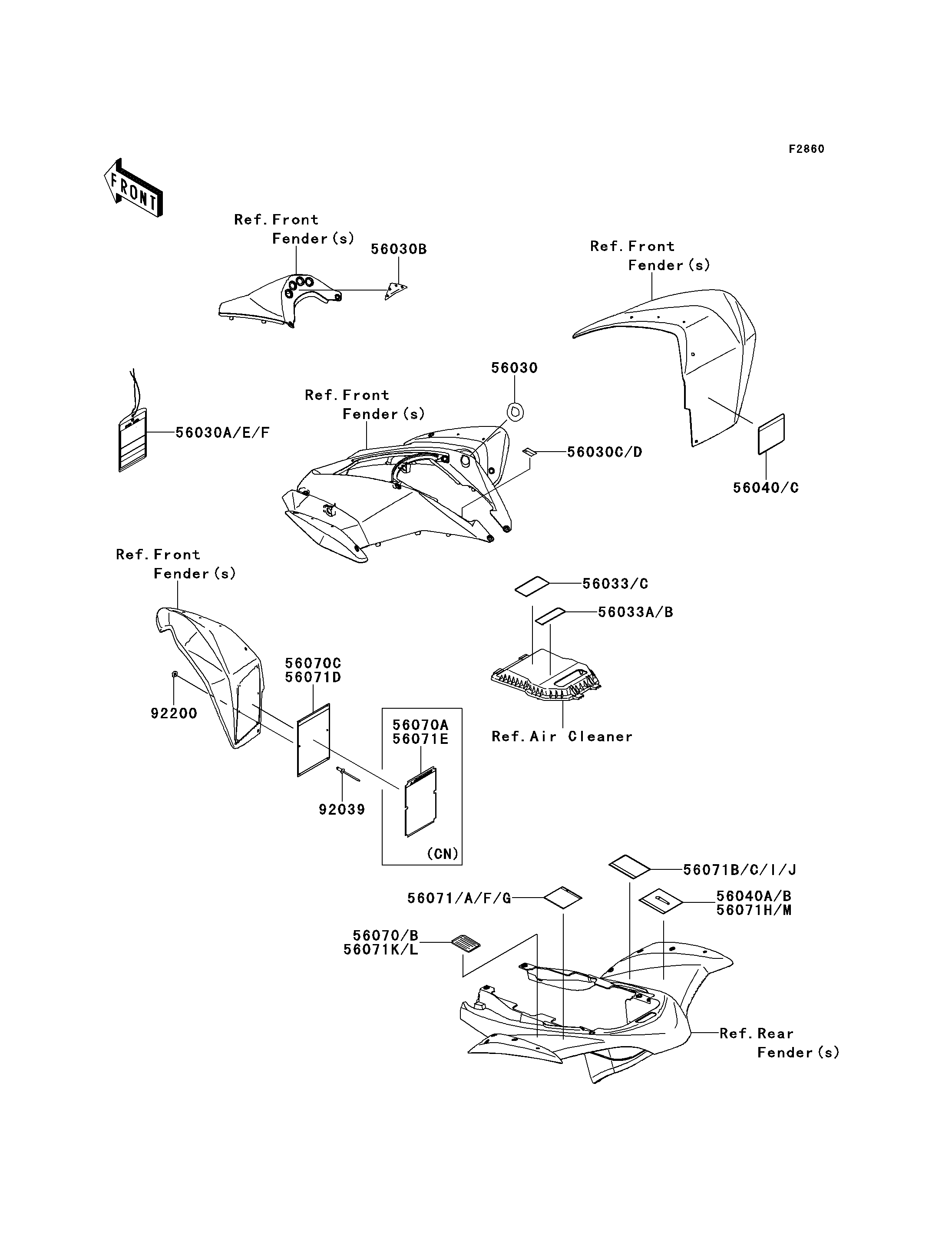

2008 KFX®450R - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56030B
56030B
56030C
56030C
56033
56033
56033A
56033A
56040
56040
56040A
56040A
56070B
56070B
56070C
56070C
56071
56071
56071B
56071B
92039
92039
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,IGNITION SWITCH 56030 56030-0014 1
LABEL 56030B 56030-0135 1
LABEL,GASOLINE 56030C 56030-0159 1
LABEL-MANUAL,AIR CLEANER 56033 56033-0064 1
LABEL-MANUAL,OIL ELEMENT INFO 56033A 56033-0241 1
LABEL-WARNING,UNDER 16 56040 56040-1276 1
LABEL-WARNING,CHAIN SLACK 56040A 56040-1289 1
LABEL-WARNING,NO PASSENGER 56070B 56070-1141 1
LABEL-WARNING,SERIOUS INJURY 56070C 56070-1151 1
LABEL-WARNING,TIRE INFO 56071 56071-0013 1
LABEL-WARNING,OIL CHECK 56071B 56071-0037 1
RIVET,3.2X8 92039 92039-3763 6
WASHER,3.5X8X1 92200 92200-1251 6
LABEL,HANGTAG 56030A 56030-0061 1 US
LABEL,GASOLINE(FRENCH) 56030D 56030-0160 1 CN
LABEL-MANUAL,OIL ELEMENT INFO 56033B 56033-0242 1 CN
LABEL-WARNING,CHAIN SLACK 56040B 56040-1297 1 CN
LABEL-WARNING,AGE 56040C 56040-1325 1 CN
LABEL-WARNING,NO PASSENGER 56070 56070-0018 1 CN
LABEL-WARNING,GENERAL 56070A 56070-0019 1 CN
LABEL-WARNING,TIRE INFO 56071A 56071-0014 1 CN
LABEL-WARNING,OIL CHECK 56071C 56071-0038 1 CN
