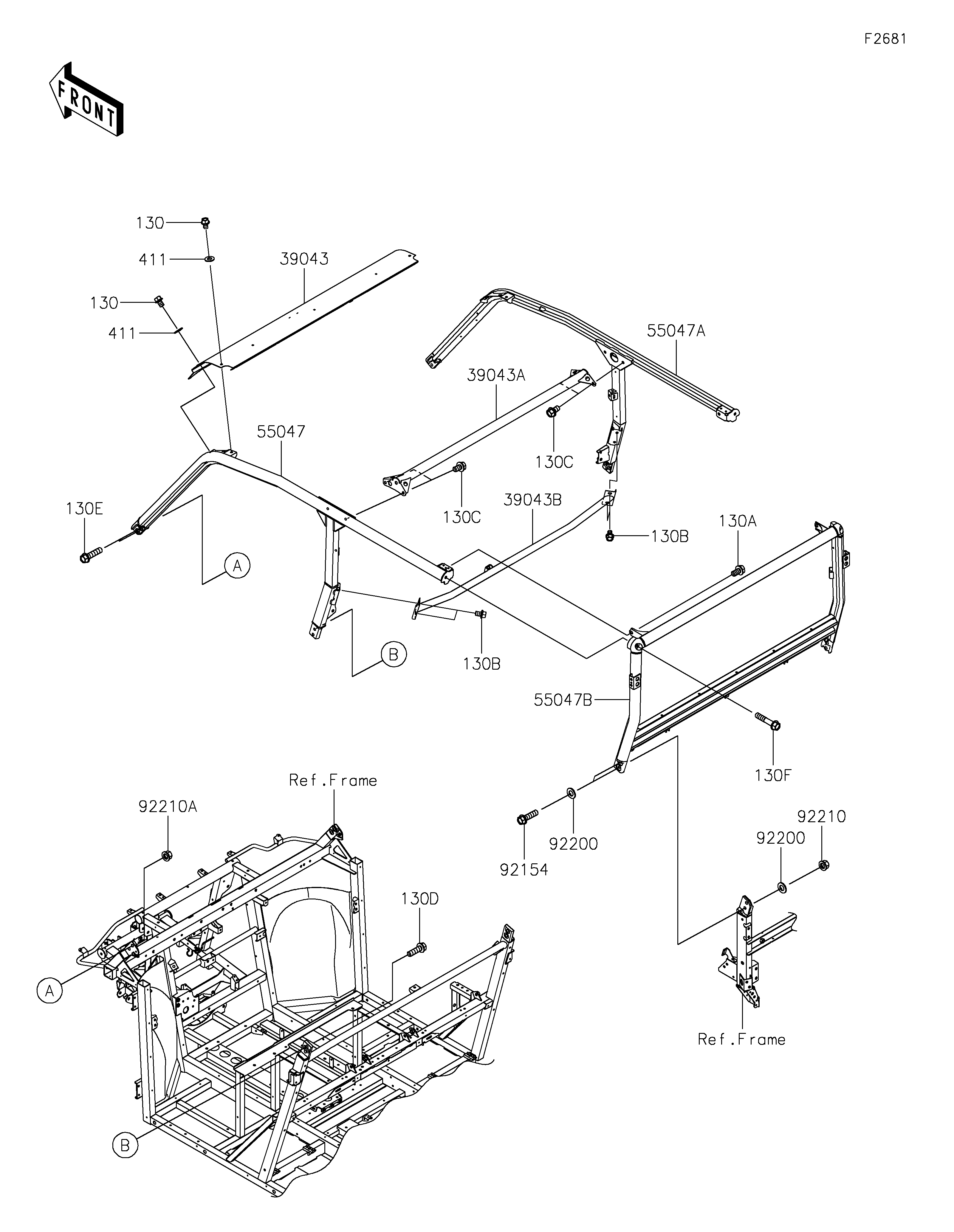

2026 RIDGE CREW - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
39043
39043A
39043B
55047
55047A
55047B
92154
92200
92200
92210
92210A
130
130
130A
130B
130B
130C
130C
130D
130E
130F
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CROSSMEMBER-COMP,UPP,FR,T.BLK 39043 39043-0037-388 1
CROSSMEMBER-COMP,B-P,UPP,T.BLK 39043A 39043-0044-388 1
CROSSMEMBER-COMP,B-P,MID,T.BLK 39043B 39043-0350-388 1
BAR-COMP,A/B-PILLAR,LH,T.BLACK 55047 55047-0465-388 1
BAR-COMP,A/B-PILLAR,RH,T.BLACK 55047A 55047-0466-388 1
BAR-COMP,C-PILLAR,T.BLACK 55047B 55047-0467-388 1
BOLT,FLANGED,12X50 92154 92154-7768 4
WASHER,13.8X26X2.3 92200 92200-2830 8
NUT,12MM 92210 92210-0603 4
NUT,FLANGED,12MM 92210A 92210-1932 4
BOLT-FLANGED,10X14 130 130CA1014 4
BOLT-FLANGED,12X22 130A 130CA1222 2
BOLT-FLANGED,10X14 130B 130CB1014 4
BOLT-FLANGED,12X20 130C 130CB1220 4
BOLT-FLANGED,12X40 130D 130CB1240 4
BOLT-FLANGED,12X50 130E 130CB1250 4
BOLT-FLANGED,12X60 130F 130CB1260 2
WASHER-PLAIN,10MM 411 411AA1000 4
