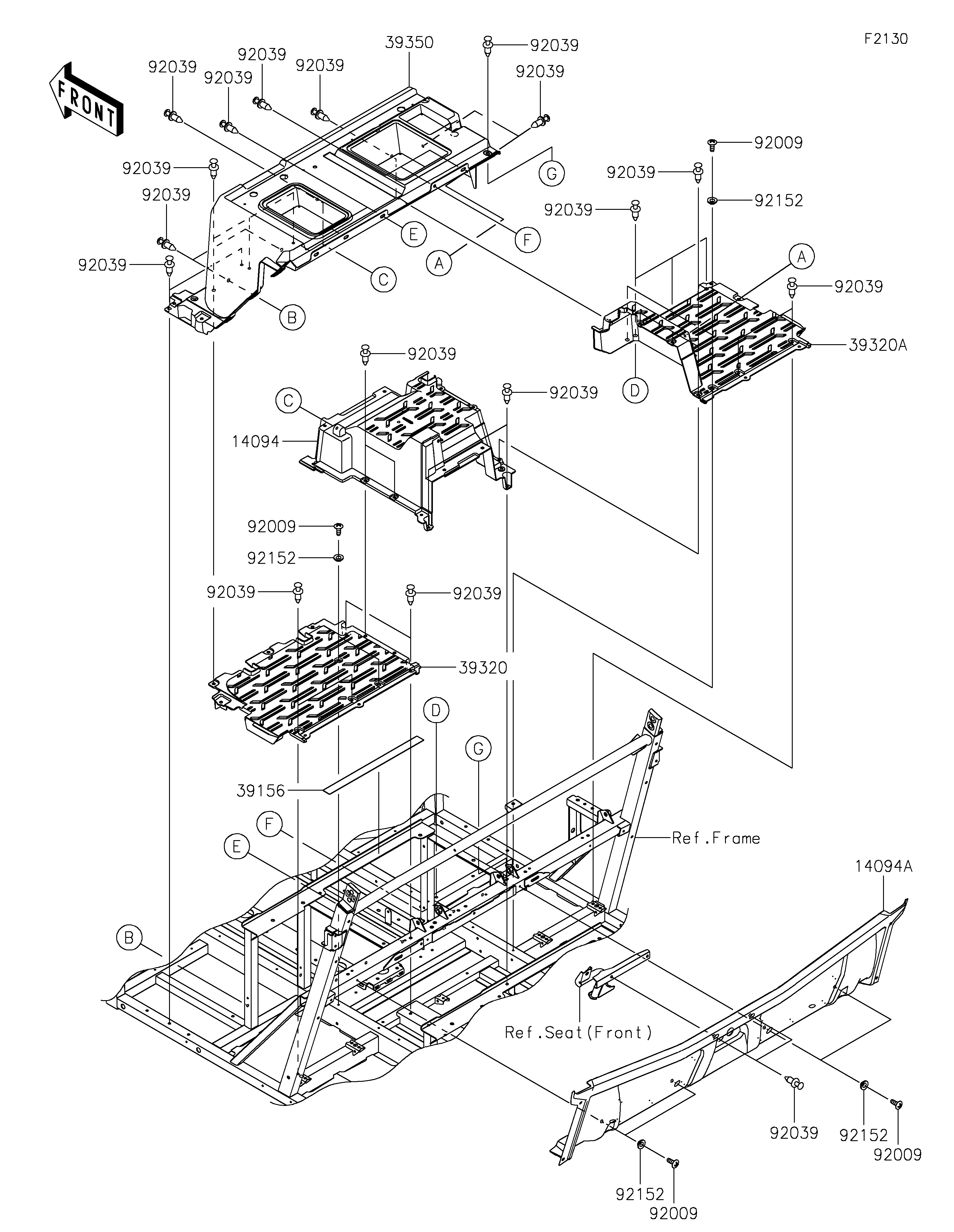

2026 RIDGE® CREW - Frame Fittings(Middle)
14094
14094A
39156
39320
39320A
39350
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92152
92152
92152
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,MID CENTER TUNNEL | 14094 | 14094-0165 | 1 | ||
| COVER,FR SEAT BACK | 14094A | 14094-0169 | 1 | ||
| PAD,420X30X1 | 39156 | 39156-2930 | 1 | ||
| FLOOR,MID,LH | 39320 | 39320-0010 | 1 | ||
| FLOOR,MID,RH | 39320A | 39320-0011 | 1 | ||
| PANEL,UNDER SEAT | 39350 | 39350-0044 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| RIVET | 92039 | 92039-0776 | 37 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 8 |
