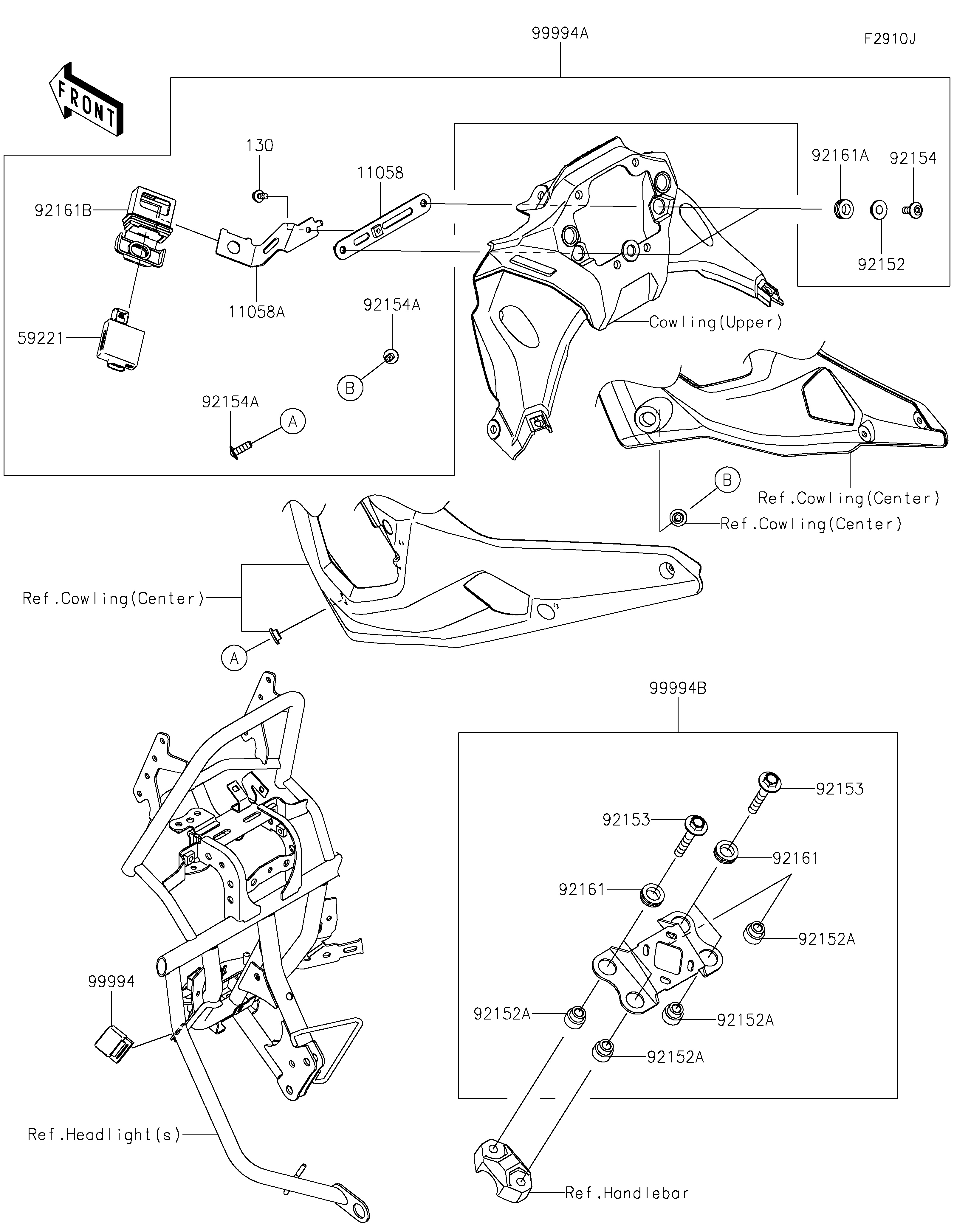

2026 KLE®500 SE ABS - Accessory(Electrical)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
59221
92152
92152A
92152A
92152A
92152A
92153
92153
92154
92154A
92154A
92161
92161
92161A
92161B
99994
99994A
99994B
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-7934 1
BRACKET 11058A 11058-7935 1
CONNECTOR-CORD,USB TYPE-C 59221 59221-0022 1
COLLAR 92152 92152-2770 2
COLLAR 92152A 92152-3945 4
BOLT,8X50 92153 92153-1135 4
BOLT,SOCKET,6X16 92154 92154-4421 2
BOLT,SOCKET,6X18 92154A 92154-7967 2
DAMPER 92161 92161-0279 4
DAMPER,10X18X6.5 92161A 92161-2091 2
DAMPER 92161B 92161-2731 1
ACC-RELAY 99994 99994-1985 1
USB TYPE-C 99994A 99994-2268 1
GPS NAVI BKT 99994B 99994-2290 1
BOLT-FLANGED,5X10 130 130BA0510 1
