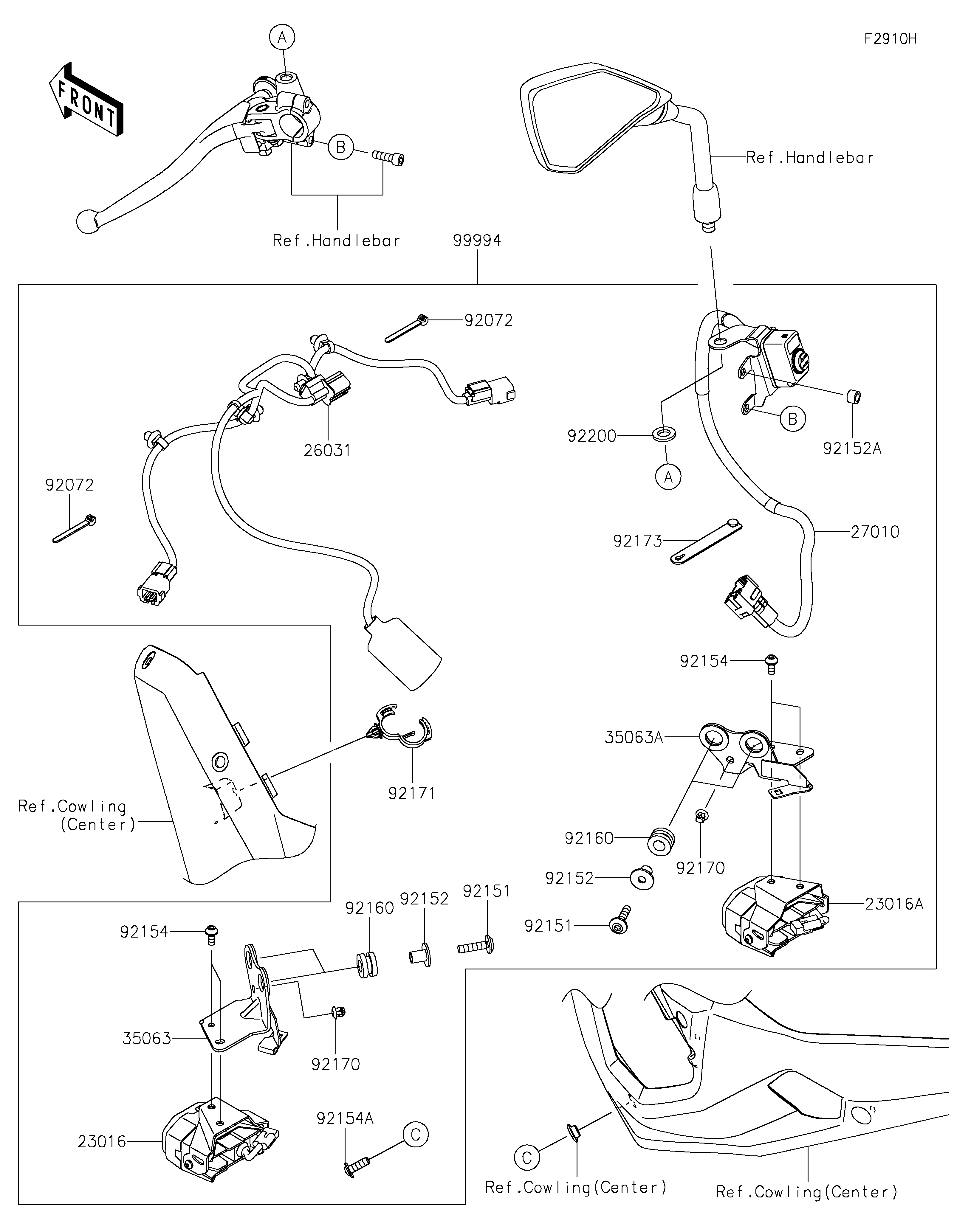

2026 KLE500 SE ABS - Accessory(Fog Lamp)

DOWNLOAD PDF
SELECT A NEW PART
23016
23016A
26031
27010
35063
35063A
92072
92072
92151
92151
92152
92152
92152A
92154
92154
92154A
92160
92160
92170
92170
92171
92173
92200
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY,FOG,LED,LH 23016 23016-0685 1
LAMP-ASSY,FOG,LED,RH 23016A 23016-0686 1
HARNESS,FOG LAMP 26031 26031-4367 1
SWITCH,FOG LAMP 27010 27010-1524 1
STAY,LH 35063 35063-1634 1
STAY,RH 35063A 35063-1635 1
BAND,L=200 92072 92072-0106 2
BOLT,SOCKET,6X25 92151 92151-1611 4
COLLAR,6.3X9.5X14.1 92152 92152-1847 4
COLLAR,6.5X10.5X6.9 92152A 92152-4066 1
BOLT,SOCKET,5X12 92154 92154-0917 4
BOLT,SOCKET,6X18 92154A 92154-7967 1
DAMPER,10X20X12 92160 92160-1167 4
CLAMP 92170 92170-1682 2
CLAMP,20MM DIA. 92171 92171-0069 1
CLAMP 92173 92173-2194 1
WASHER,10.5X19X2.3 92200 92200-1042 1
FOG LAMP 99994 99994-2264 1
