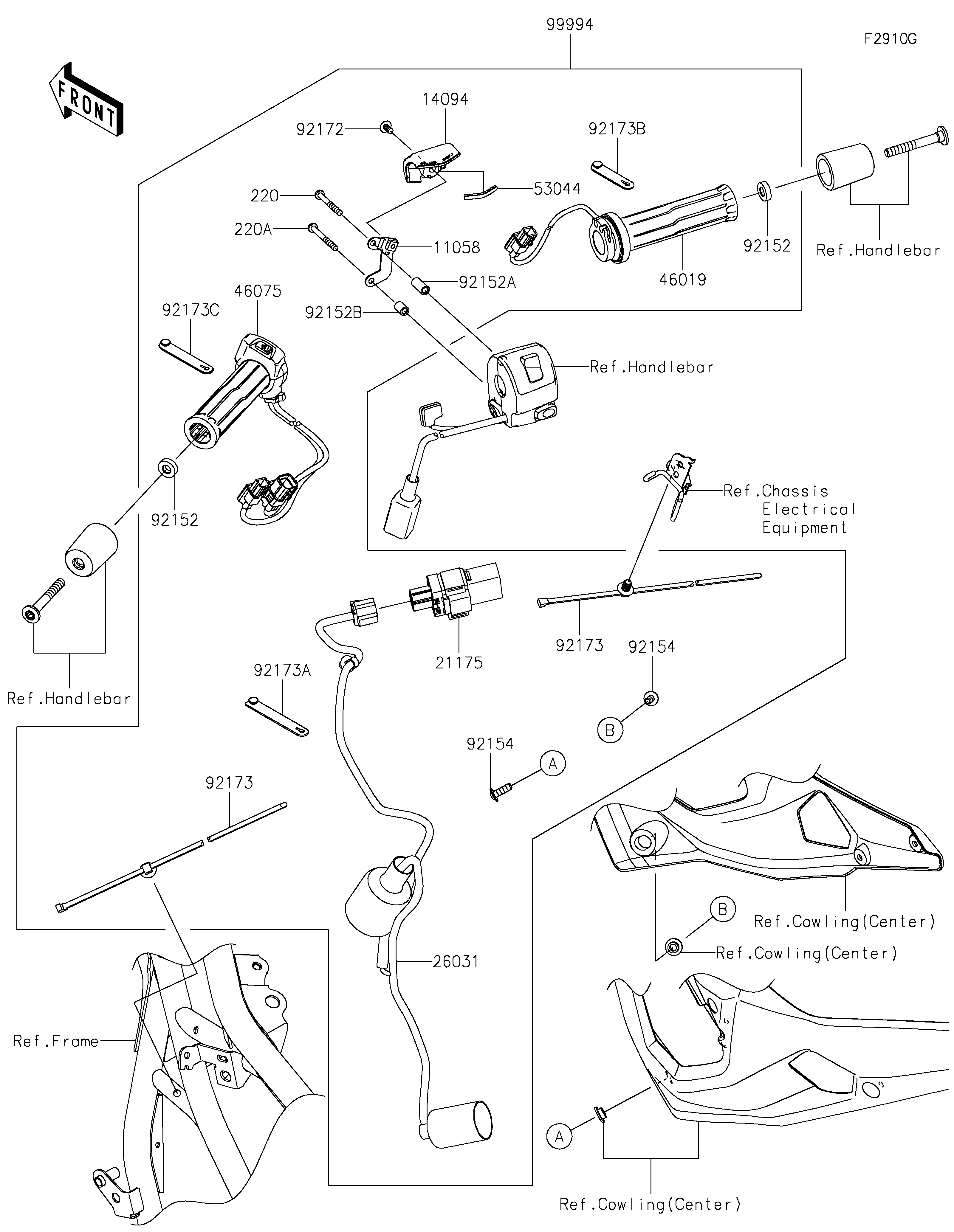

2026 KLE500 SE ABS - Accessory(Grip Heater)

DOWNLOAD PDF
SELECT A NEW PART
11058
14094
21175
26031
46019
46075
53044
92152
92152
92152A
92152B
92154
92154
92172
92173
92173
92173A
92173B
92173C
99994
220
220A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RH 11058 11058-2508 1
COVER,RH 14094 14094-0304 1
CONTROL UNIT-ELECTRONIC,GH 21175 21175-2197 1
HARNESS,GRIP HEATER 26031 26031-4366 1
GRIP-ASSY,HEATER,RH 46019 46019-0136 1
GRIP,HEATER,LH 46075 46075-0701 1
TRIM,38MM 53044 53044-0660 1
COLLAR,8.2X18X5 92152 92152-1848 2
COLLAR,RH,UPP 92152A 92152-3908 1
COLLAR,RH,LWR 92152B 92152-3909 1
BOLT,SOCKET,6X18 92154 92154-7967 2
SCREW,5X10 92172 92172-0007 1
CLAMP 92173 92173-0742 2
CLAMP 92173A 92173-2194 1
CLAMP 92173B 92173-2198 1
CLAMP 92173C 92173-2199 1
GRIP HEATER 99994 99994-2253 1
SCREW-PAN-CROS,5X40 220 220AB0540 1
SCREW-PAN-CROS,5X45 220A 220AB0545 1
