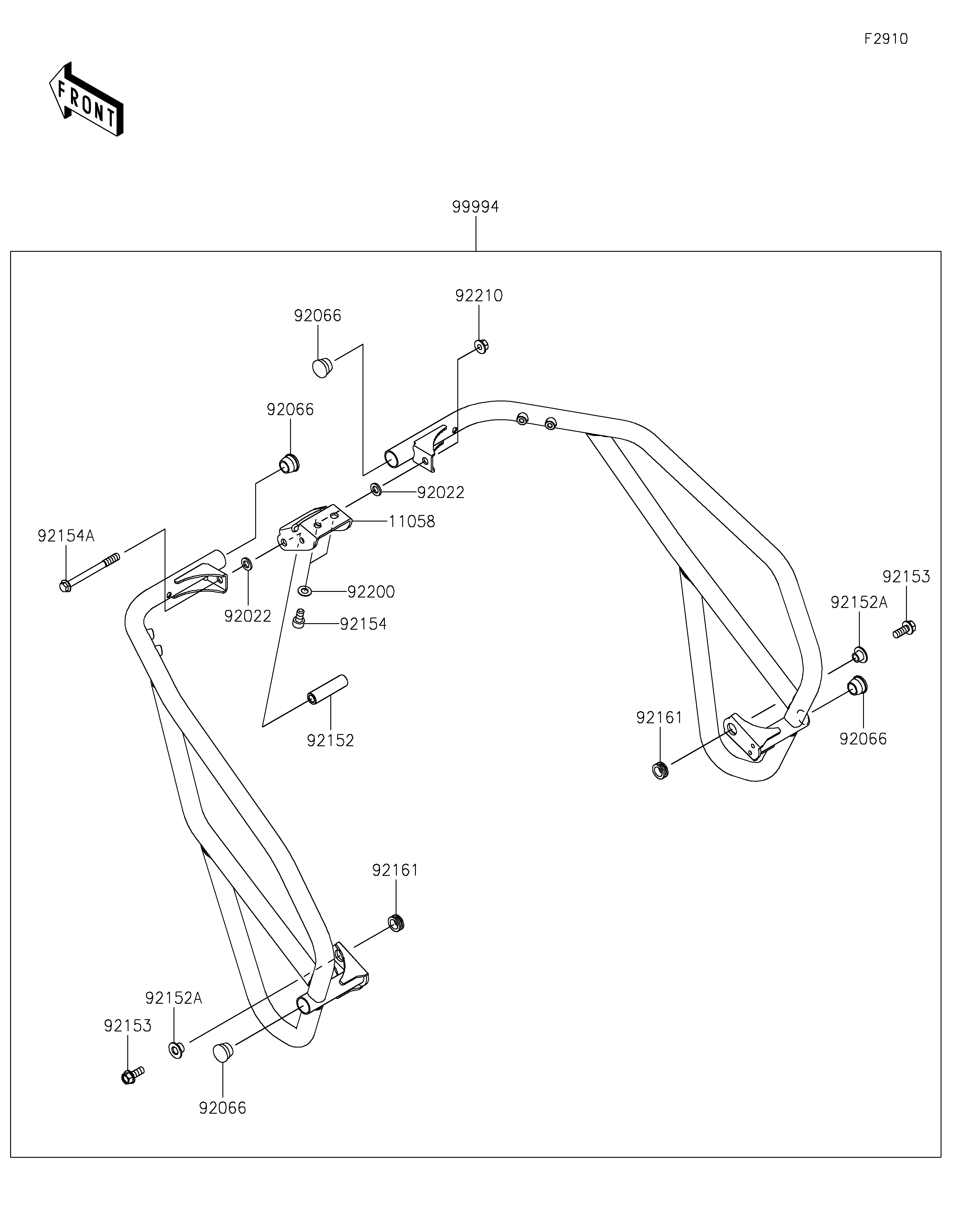

2026 KLE500 SE ABS - Accessory(Engine Guard)

DOWNLOAD PDF
SELECT A NEW PART
11058
92022
92022
92066
92066
92066
92066
92152
92152A
92152A
92153
92153
92154
92154A
92161
92161
92200
92210
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR 11058 11058-2632 1
WASHER,9X15.5X2 92022 92022-1401 2
PLUG 92066 92066-1220 4
COLLAR,8.5X14.5X54 92152 92152-3919 1
COLLAR 92152A 92152-4075 2
BOLT,FLANGED,8X20 92153 92153-0948 2
BOLT,SOCKET,8X16 92154 92154-7669 2
BOLT,FLANGED,8X85 92154A 92154-7689 1
DAMPER 92161 92161-0570 2
WASHER,8.2X16X1 92200 92200-0434 2
NUT,FLANGED,8MM 92210 92210-0304 1
ENGINE GUARD 99994 99994-2263 1
