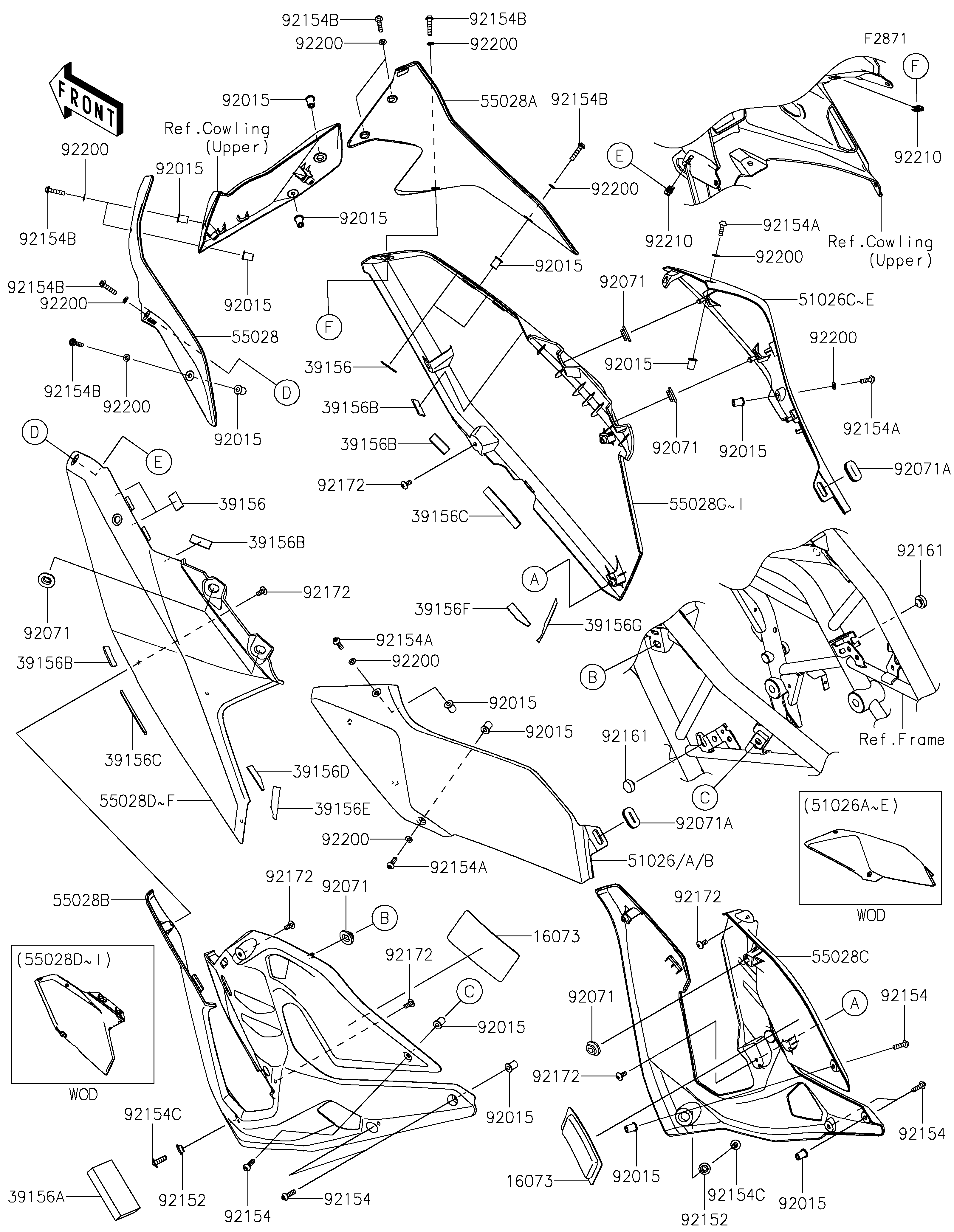

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| INSULATOR | 16073 | 16073-1172 | 2 | ||
| PAD,13X25X2 | 39156 | 39156-2137 | 4 | ||
| PAD,80X40X15 | 39156A | 39156-2999 | 1 | ||
| PAD,30X11X2 | 39156B | 39156-3857 | 4 | ||
| PAD,70X11X3 | 39156C | 39156-3858 | 2 | ||
| PAD | 39156D | 39156-3859 | 1 | ||
| PAD | 39156E | 39156-3860 | 1 | ||
| PAD | 39156F | 39156-3882 | 1 | ||
| PAD | 39156G | 39156-3883 | 1 | ||
| COVER TANK,LH,P.S.GRAY | 51026 | 51026-0030-36S | 1 | CN | |
| COVER TANK,LH,P.B.WHITE | 51026A | 51026-0030-54X | 1 | ||
| COVER TANK,LH,B.D.GREEN | 51026B | 51026-0030-79H | 1 | ||
| COVER TANK,RH,P.S.GRAY | 51026C | 51026-0031-36S | 1 | CN | |
| COVER TANK,RH,P.B.WHITE | 51026D | 51026-0031-54X | 1 | ||
| COVER TANK,RH,B.D.GREEN | 51026E | 51026-0031-79H | 1 | ||
| COWLING,SIDE SCREEN,LH | 55028 | 55028-0908 | 1 | ||
| COWLING,SIDE SCREEN,RH | 55028A | 55028-0909 | 1 | ||
| COWLING,SIDE,LWR,LH | 55028B | 55028-0914 | 1 | ||
| COWLING,SIDE,LWR,RH | 55028C | 55028-0915 | 1 | ||
| COWLING,SIDE,LH,P.S.GRAY | 55028D | 55028-0960-36S | 1 | CN | |
| COWLING,SIDE,LH,P.B.WHITE | 55028E | 55028-0960-54X | 1 | ||
| COWLING,SIDE,LH,B.D.GREEN | 55028F | 55028-0960-79H | 1 | ||
| COWLING,SIDE,RH,P.S.GRAY | 55028G | 55028-0961-36S | 1 | CN | |
| COWLING,SIDE,RH,P.B.WHITE | 55028H | 55028-0961-54X | 1 | ||
| COWLING,SIDE,RH,B.D.GREEN | 55028I | 55028-0961-79H | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 16 | ||
| GROMMET,20X24X7.5 | 92071 | 92071-0766 | 6 | ||
| GROMMET,EMBOSSED 0776 | 92071A | 92071-0776 | 2 | ||
| COLLAR,6.5X16X5.6 | 92152 | 92152-1838 | 2 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-2107 | 6 | ||
| BOLT,SOCKET,5X20 | 92154A | 92154-4301 | 4 | ||
| BOLT,FLANGED,5X23 | 92154B | 92154-7945 | 8 | ||
| BOLT,SOCKET,6X18 | 92154C | 92154-7967 | 2 | ||
| DAMPER,9.5X18X6 | 92161 | 92161-1473 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 6 | ||
| WASHER,5.2X10X1 | 92200 | 92200-2286 | 12 | ||
| NUT | 92210 | 92210-0571 | 2 |
