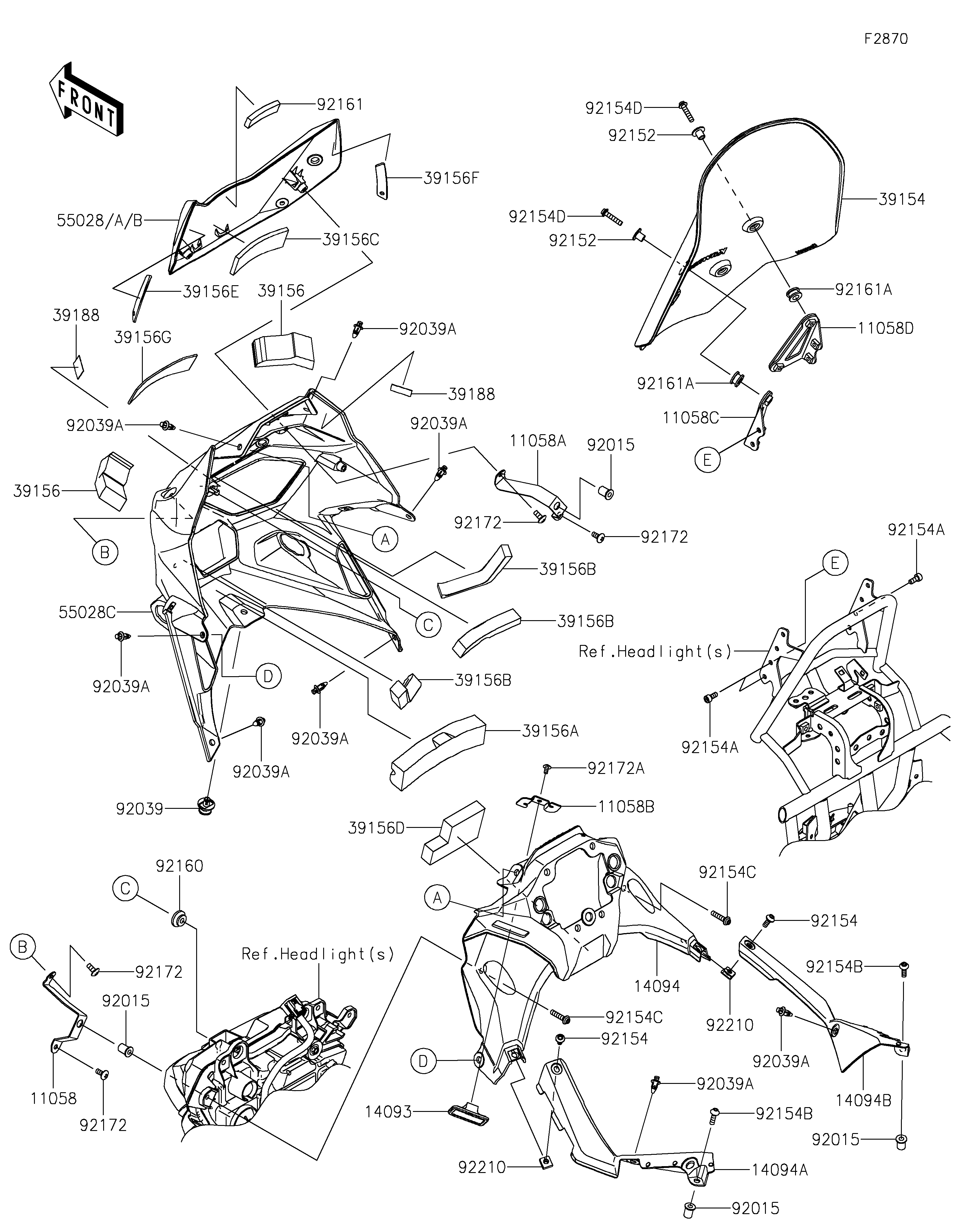

2026 KLE500 SE ABS - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058C
11058D
14093
14094
14094A
14094B
39154
39156
39156
39156A
39156B
39156B
39156B
39156C
39156D
39156E
39156F
39156G
39188
39188
55028
55028A
55028B
55028C
92015
92015
92015
92015
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92160
92161
92161A
92161A
92172
92172
92172
92172
92172A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP COWLING,LH 11058 11058-2818 1
BRACKET,UPP COWLING,RH 11058A 11058-2819 1
BRACKET,USB 11058B 11058-2912 1
BRACKET,WINDSHIELD,LH 11058C 11058-7874 1
BRACKET,WINDSHIELD,RH 11058D 11058-7875 1
COVER,INNER 14093 14093-1550 1
COVER,INNER,CNT 14094 14094-0316 1
COVER,INNER,SIDE,LH 14094A 14094-0317 1
COVER,INNER,SIDE,RH 14094B 14094-0318 1
WINDSHIELD,LARGE 39154 39154-0454 1
PAD,70X20X30 39156 39156-2992 2
PAD,140X20X30 39156A 39156-2993 1
PAD,100X15X15 39156B 39156-2994 3
PAD,85X30X5 39156C 39156-3876 1
PAD,METER 39156D 39156-3888 1
PAD,UPP COWLING,LH 39156E 39156-3894 1
PAD,UPP COWLING,RH 39156F 39156-3895 1
PAD,100X30X2 39156G 39156-3897 1
TAPE,15X25 39188 39188-0045 2
COWLING,H/L UPP,P.S.GRAY 55028 55028-0910-36S 1 CN
COWLING,H/L UPP,P.B.WHITE 55028A 55028-0910-54X 1
COWLING,H/L UPP,B.D.GREEN 55028B 55028-0910-79H 1
COWLING,UPP 55028C 55028-0962 1
NUT,WELL,5MM 92015 92015-1757 4
RIVET,HOLE 8MM 92039 92039-0014 1
RIVET 92039A 92039-0709 8
COLLAR 92152 92152-1592 4
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT-SOCKET,5X12 92154A 92154-4291 4
BOLT,SOCKET,5X16 92154B 92154-4294 2
BOLT,FLANGED,5X23 92154C 92154-7670 2
BOLT,FLANGED,5X23 92154D 92154-7945 4
DAMPER 92160 92160-1613 1
DAMPER,15X50X6 92161 92161-0905 1
DAMPER 92161A 92161-2832 4
SCREW,5X12 92172 92172-0821 4
SCREW,CROSS,4X8 92172A 92172-1227 1
NUT 92210 92210-0571 2
