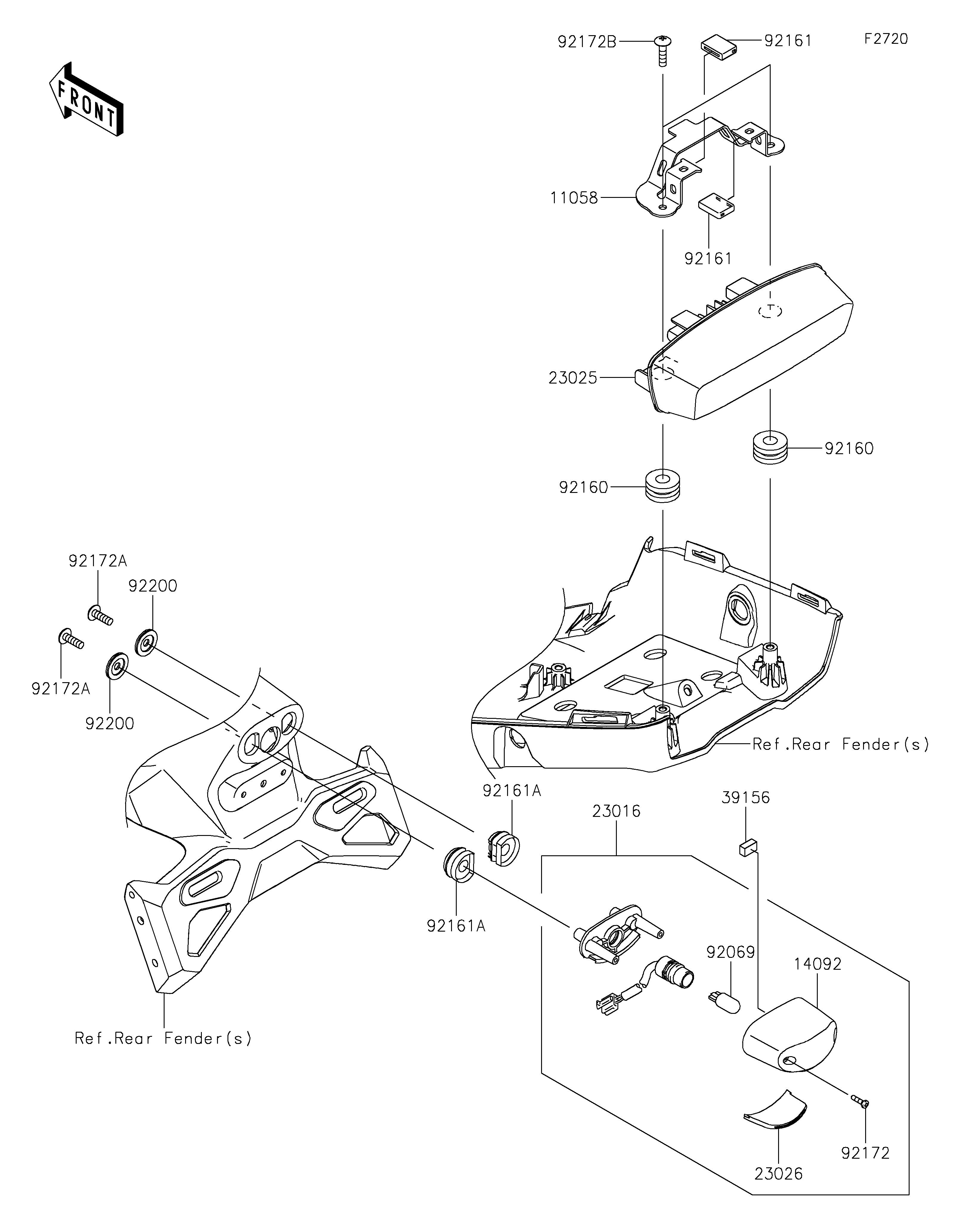

2026 KLE500 SE ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11058
14092
23016
23025
23026
39156
92069
92160
92160
92161
92161
92161A
92161A
92172
92172A
92172A
92172B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL LAMP 11058 11058-2894 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENCE 23016 23016-0610 1
LAMP-TAIL,LED 23025 23025-0396 1
LENS,LICENCE LAMP 23026 23026-0035 1
PAD,7X12X5 39156 39156-2292 1
BULB,12V 5W 92069 92069-1016 1
DAMPER 92160 92160-1162 2
DAMPER,15X21X5.5 92161 92161-1472 2
DAMPER 92161A 92161-2128 2
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
SCREW 92172B 92172-1072 2
WASHER,5.5X20X2 92200 92200-1971 2
