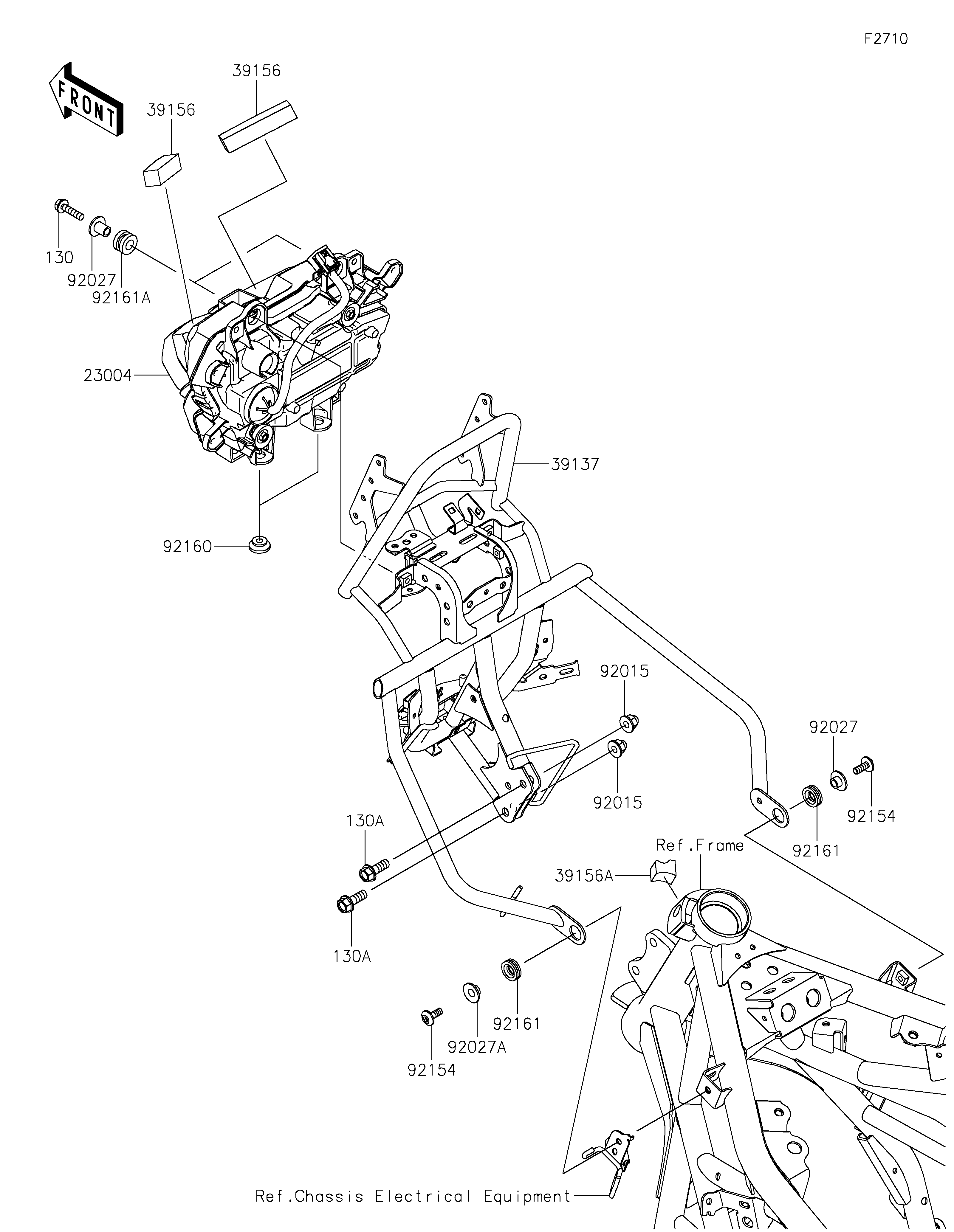

2026 KLE®500 SE ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23004
39137
39156
39156
39156A
92015
92015
92027
92027
92027A
92154
92154
92160
92161
92161
92161A
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-HEAD,LED 23004 23004-0467 1
STAY-COMP,HEAD LAMP 39137 39137-0802 1
PAD,70X15X15 39156 39156-2995 2
PAD,20X15X15 39156A 39156-3896 1
NUT,CAP,8MM 92015 92015-1151 2
COLLAR,6.5X10X14.1 92027 92027-1183 2
COLLAR,L=7.4 92027A 92027-1848 2
BOLT,SOCKET,6X16 92154 92154-4421 2
DAMPER 92160 92160-1613 2
DAMPER,10X20X6 92161 92161-1592 2
DAMPER,10X20X12 92161A 92161-2102 2
BOLT-FLANGED,6X25 130 130BA0625 2
BOLT-FLANGED,8X22 130A 130BB0822 2
