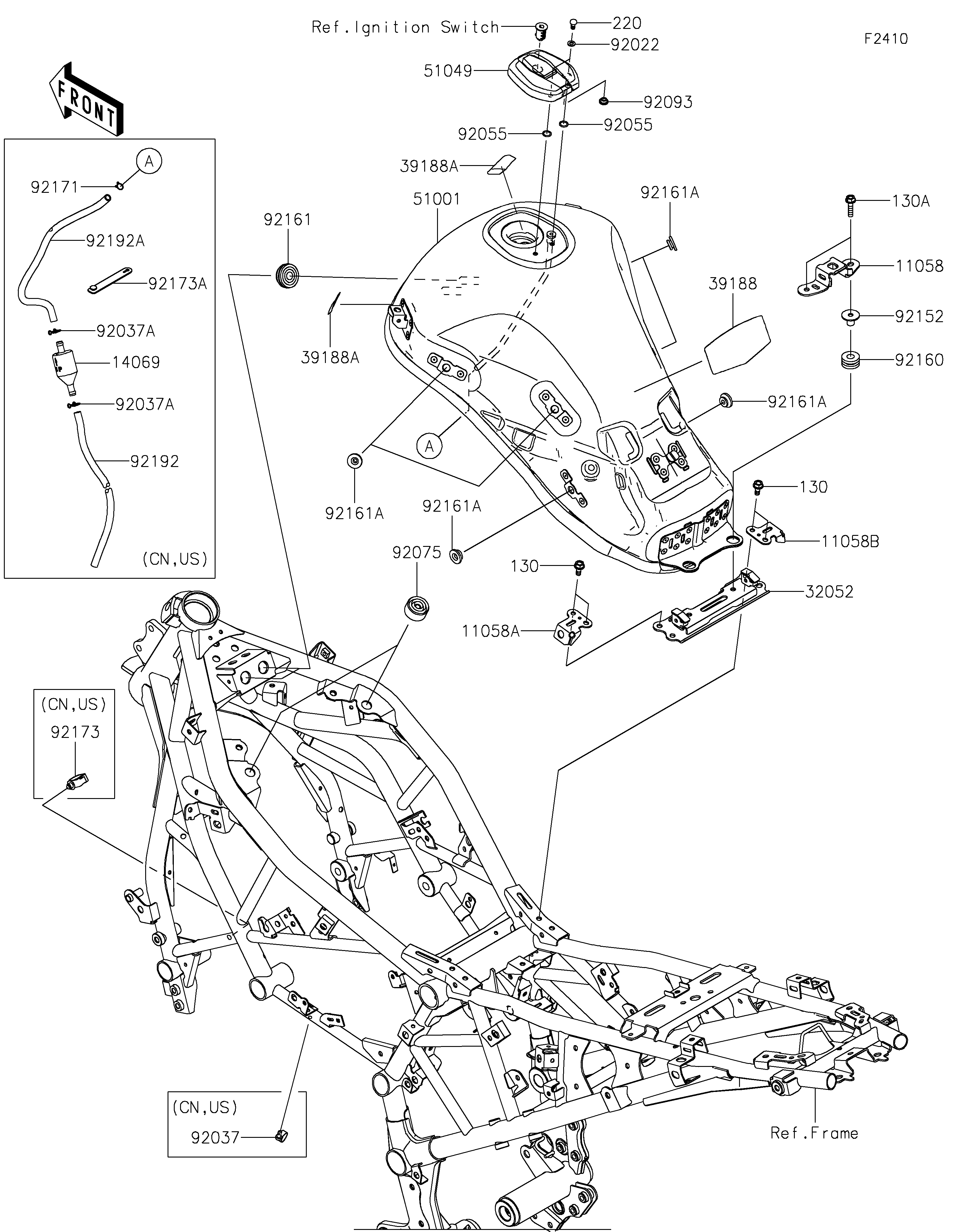

2026 KLE®500 SE ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
14069
32052
39188
39188A
39188A
51001
51049
92022
92037
92037A
92037A
92055
92055
92075
92093
92152
92160
92161
92161A
92161A
92161A
92161A
92171
92173
92173A
92192
92192A
130
130
130A
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,CNT 11058 11058-2474 1
BRACKET,FUEL TANK,LH 11058A 11058-7359 1
BRACKET,FUEL TANK,RH 11058B 11058-7360 1
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
BRACKET-TANK 32052 32052-0882 1
TAPE,FUEL TANK 39188 39188-0626 1
TAPE 39188A 39188-0629 2
TANK-COMP-FUEL,EBONY 51001 51001-0944-H8 1
CAP-TANK,FUEL 51049 51049-0770 1
WASHER,5.1X10X1.0 92022 92022-1977 2
CLAMP,SPEED,L=58 92037 92037-1163 1 CN,US
CLAMP,TUBE 92037A 92037-147 2 CN,US
RING-O 92055 92055-1023 2
DAMPER 92075 92075-015 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X14.6 92152 92152-0965 2
DAMPER 92160 92160-1162 2
DAMPER,10X32X8 92161 92161-1791 2
DAMPER,6X20X7.5 92161A 92161-1937 6
CLAMP,8X0.7 92171 92171-1973 1 CN,US
CLAMP,HOLDER CLIP 92173 92173-0868 1 CN,US
CLAMP 92173A 92173-2194 1 CN,US
TUBE,6X9X620 92192 92192-1085 1 CN,US
TUBE,6X9X285 92192A 92192-2849 1 CN,US
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,6X25 130A 130CB0625 2
SCREW-PAN-CROS,5X10 220 220AA0510 2
