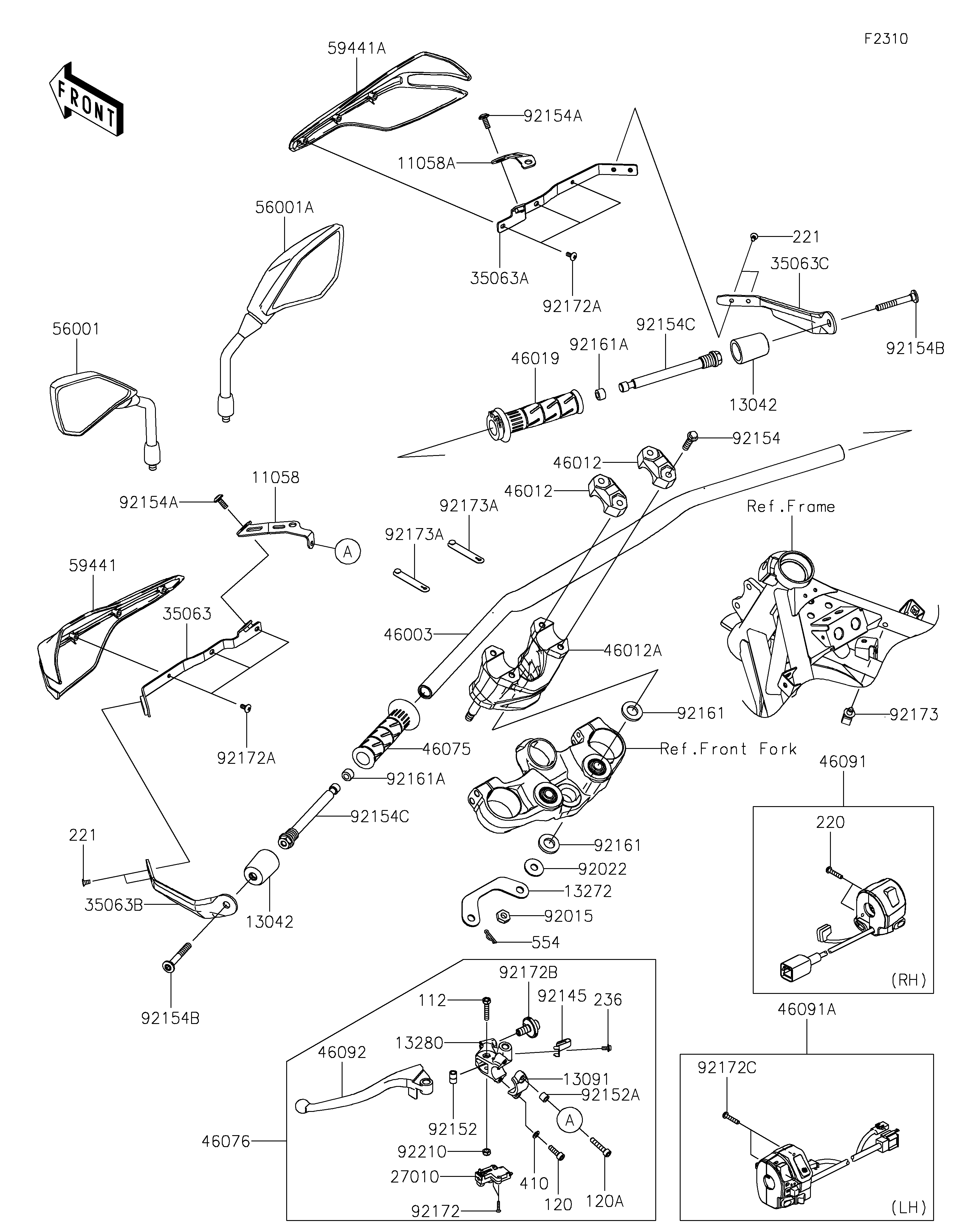

2026 KLE®500 SE ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11058A
11058A
13042
13042
13042
13042
13091
13091
13272
13272
13280
13280
27010
27010
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
46003
46003
46012
46012
46012
46012
46012A
46012A
46019
46019
46075
46075
46076
46076
46091
46091
46091A
46091A
46092
46092
56001
56001
56001A
56001A
59441
59441
59441A
59441A
92015
92015
92022
92022
92145
92145
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172C
92172C
92173
92173
92173A
92173A
92173A
92173A
92210
92210
112
112
120
120
120A
120A
220
220
221
221
221
221
236
236
410
410
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP,LH 11058 11058-2994 1
BRACKET,UPP,RH 11058A 11058-2995 1
WEIGHT,HANDLE 13042 13042-0814 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
PLATE 13272 13272-7499 1
HOLDER,CLUTCH LEVER 13280 13280-0017 1
SWITCH,CLUTCH 27010 27010-0729 1
STAY,COVER,LH 35063 35063-1637 1
STAY,COVER,RH 35063A 35063-1639 1
STAY,LH 35063B 35063-1707 1
STAY,RH 35063C 35063-1708 1
HANDLE,FAT BAR,SILVER 46003 46003-0865-28Z 1
HOLDER-HANDLE,UPP,B.B.SILVER 46012 46012-0359-79G 2
HOLDER-HANDLE,LWR,B.B.SILVER 46012A 46012-0451-79G 1
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0215 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0553 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0679 1
LEVER-GRIP,CLUTCH 46092 46092-0003 1
MIRROR-ASSY,LH 56001 56001-0490 1
MIRROR-ASSY,RH 56001A 56001-0491 1
COVER-HANDLE,LH,EBONY 59441 59441-0313-6C 1
COVER-HANDLE,RH,EBONY 59441A 59441-0314-6C 1
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
SPRING 92145 92145-1286 1
COLLAR 92152 92152-0103 1
COLLAR,6.5X10.5X8.5 92152A 92152-4084 1
BOLT,FLANGED,8X30 92154 92154-1246 4
BOLT,SOCKET,6X16 92154A 92154-4370 2
BOLT,SOCKET,8X60 92154B 92154-7659 2
BOLT 92154C 92154-7959 2
DAMPER,16.2X30X4 92161 92161-2825 4
DAMPER,8X15X10 92161A 92161-2831 2
SCREW,3X16 92172 92172-0183 2
SCREW,5X12 92172A 92172-0857 6
SCREW,ADJUST NUT 92172B 92172-1060 1
SCREW-PAN-CROS,5X25 92172C 92172-1140 2
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-2199 2
NUT,LOCK,6MM 92210 92210-0006 1
BOLT-UPSET,6X30 112 112BB0630 1
BOLT-SOCKET,6X20 120 120CB0620 1
BOLT-SOCKET,6X30 120A 120CB0630 1
SCREW-PAN-CROS,5X25 220 220AB0525 2
SCREW-CSK-CROS,5X10 221 221AA0510 4
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
PIN-SNAP 554 554DA0800 2
