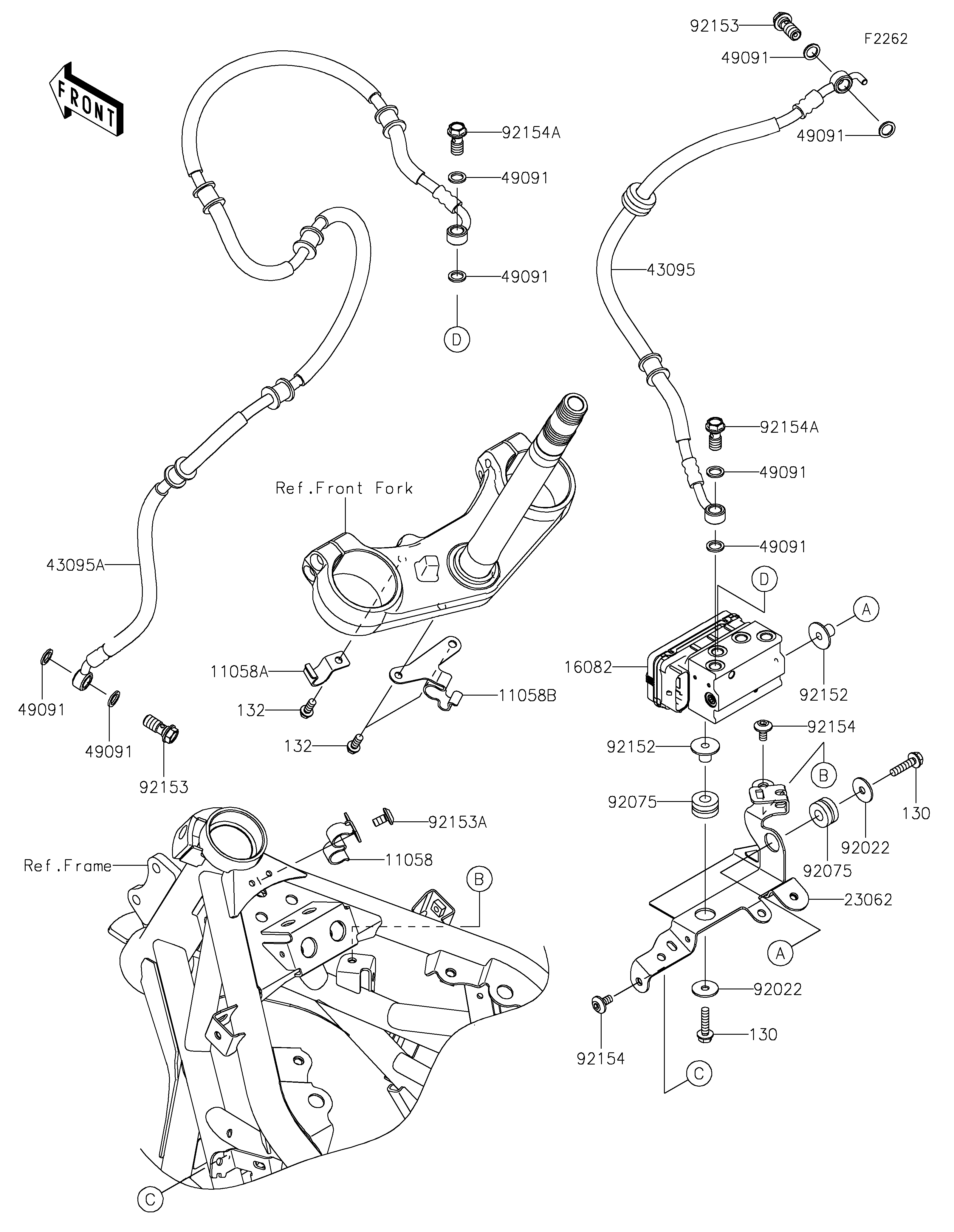

Parts Diagrams |
11058
11058A
11058B
16082
23062
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
92022
92022
92075
92075
92152
92152
92153
92153
92153A
92154
92154
92154A
92154A
130
130
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-2729 | 1 | ||
| BRACKET | 11058A | 11058-2731 | 1 | ||
| BRACKET | 11058B | 11058-2732 | 1 | ||
| PUMP-ASSY-OIL,ABS,BOSCH,10.3MB | 16082 | 16082-0964 | 1 | ||
| BRACKET-COMP,ABS UNIT | 23062 | 23062-1603 | 1 | ||
| HOSE-BRAKE,FR M/C-ABS UNIT | 43095 | 43095-2087 | 1 | ||
| HOSE-BRAKE,ABS UNIT-FR CALIPER | 43095A | 43095-2088 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 8 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 2 | ||
| DAMPER | 92075 | 92075-209 | 2 | ||
| COLLAR,6.5X10X13.6 | 92152 | 92152-2204 | 2 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
| BOLT,SOCKET,6X12 | 92153A | 92153-1948 | 1 | ||
| BOLT,SOCKET,6X12 | 92154 | 92154-2355 | 2 | ||
| BOLT | 92154A | 92154-7600 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 2 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 3 |
| BRACKET | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11058B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL,ABS,BOSCH,10.3MB | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP,ABS UNIT | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR M/C-ABS UNIT | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,ABS UNIT-FR CALIPER | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SEAL,10.1X14.5X1.5 | |
| REF # | 49091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X13.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
