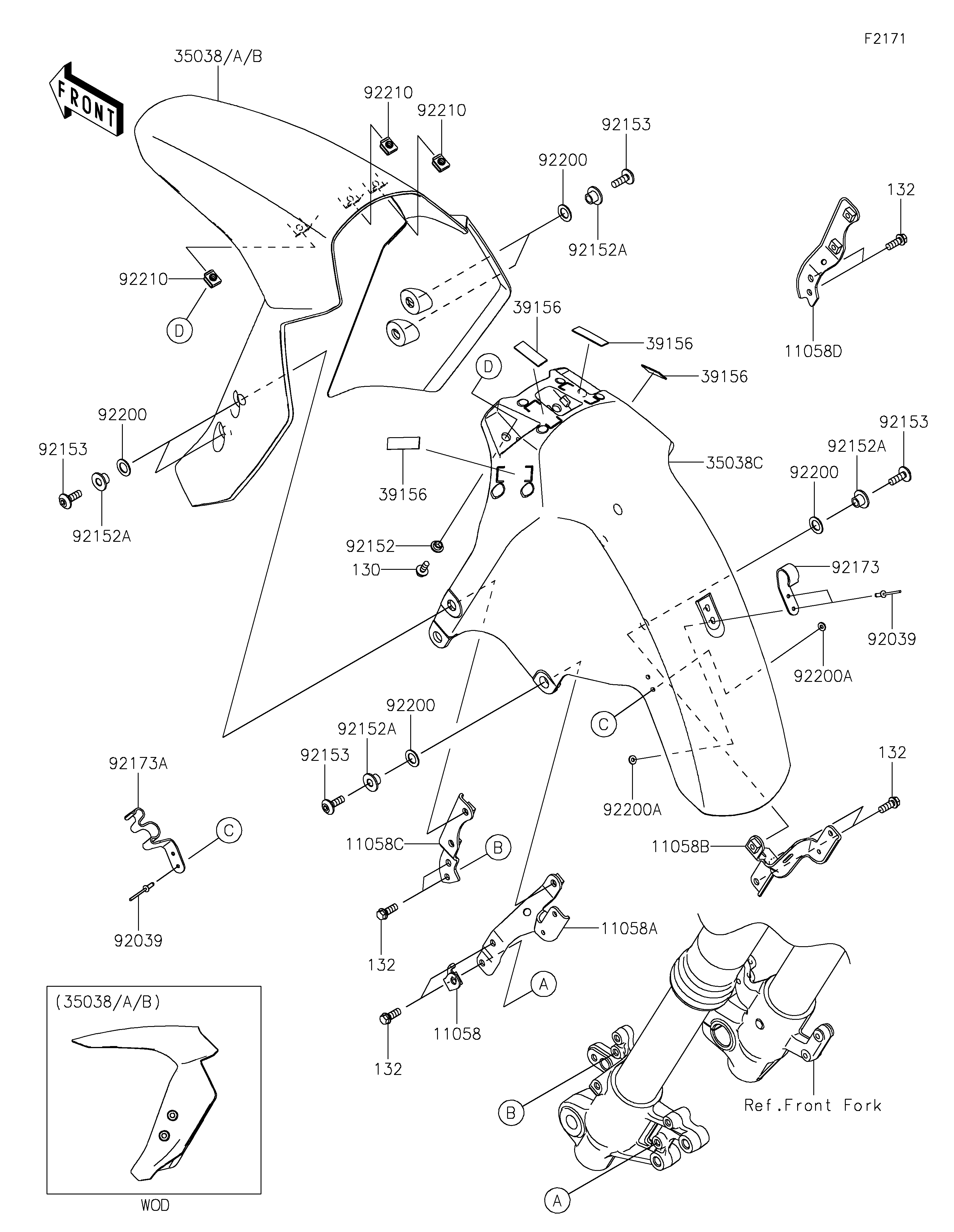

2026 KLE500 SE ABS - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058C
11058D
35038
35038A
35038B
35038C
39156
39156
39156
39156
92039
92039
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92173
92173A
92200
92200
92200
92200
92200A
92200A
92210
92210
92210
130
132
132
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS SENSOR 11058 11058-2854 1
BRACKET,FR FENDER,RR,LH 11058A 11058-7866 1
BRACKET,FR FENDER,RR,RH 11058B 11058-7867 1
BRACKET,FR FENDER,FR,LH 11058C 11058-7924 1
BRACKET,FR FENDER,FR,RH 11058D 11058-7925 1
FENDER-FRONT,FR,P.S.GRAY 35038 35038-0067-36S 1 CN
FENDER-FRONT,FR,P.B.WHITE 35038A 35038-0067-54X 1
FENDER-FRONT,FR,B.D.GREEN 35038B 35038-0067-79H 1
FENDER-FRONT,RR 35038C 35038-0068 1
PAD,36X11X1 39156 39156-2998 4
RIVET,3.2X9.5 92039 92039-0752 4
COLLAR,6X8X4.5 92152 92152-2395 3
COLLAR,6.8X10X9.1 92152A 92152-4085 6
BOLT,SOCKET,6X18 92153 92153-1675 6
CLAMP 92173 92173-2521 1
CLAMP 92173A 92173-3744 1
WASHER,10.3X17X1 92200 92200-0380 6
WASHER,3.5X8X1 92200A 92200-1251 4
NUT 92210 92210-0571 3
BOLT-FLANGED,5X12 130 130BA0512 3
BOLT-FLANGED-SMALL,6X16 132 132BA0616 8
