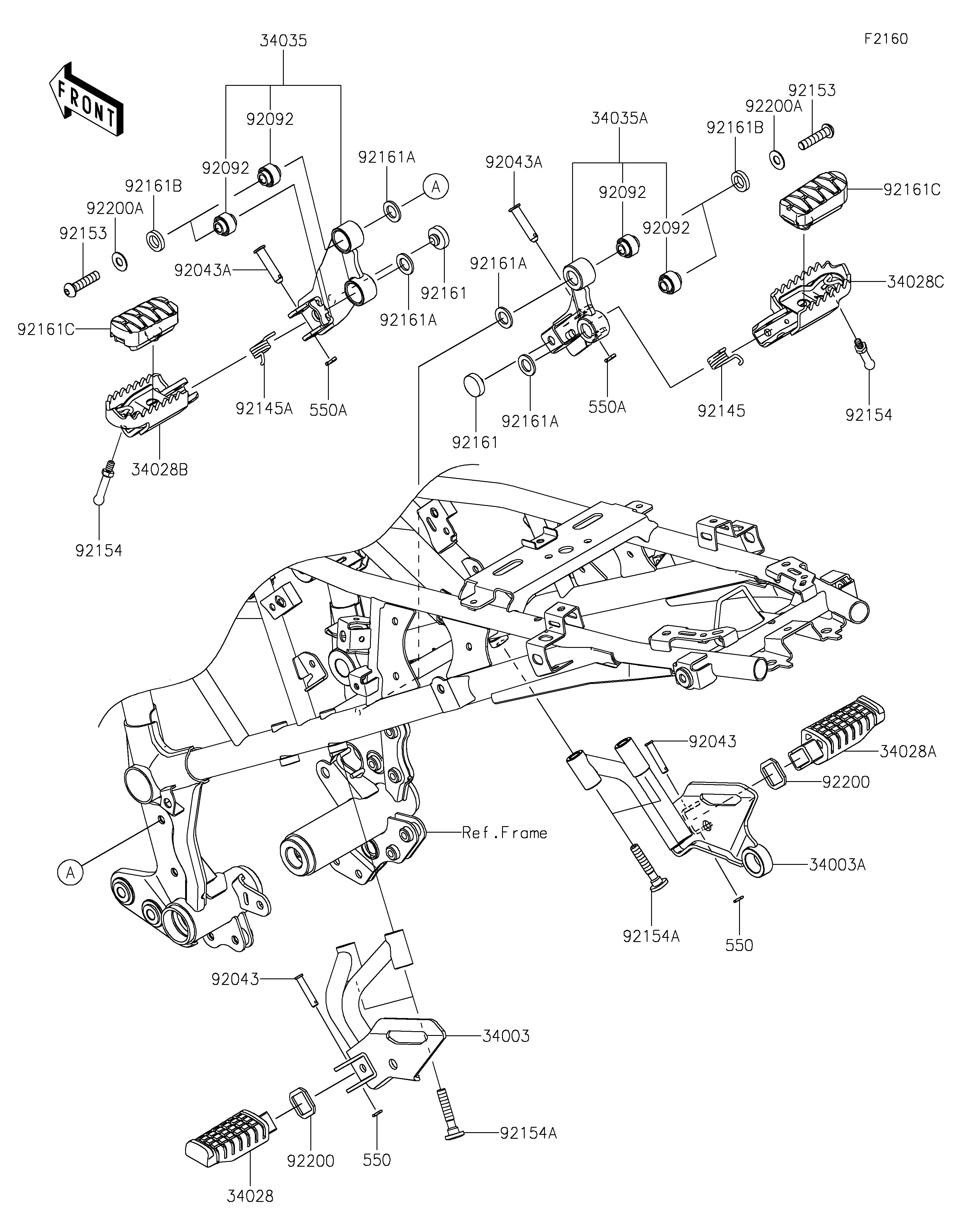

2026 KLE®500 SE ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34003
34003A
34028
34028A
34028B
34028C
34035
34035A
92043
92043
92043A
92043A
92092
92092
92092
92092
92145
92145A
92153
92153
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92200
92200
92200A
92200A
550
550
550A
550A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,RR,LH 34003 34003-0215 1
HOLDER-STEP,RR,RH 34003A 34003-0216 1
STEP,RR,LH 34028 34028-0134 1
STEP,RR,RH 34028A 34028-0135 1
STEP,FR,LH 34028B 34028-0459 1
STEP,FR,RH 34028C 34028-0460 1
HOLDER-ASSY-STEP,FR,LH 34035 34035-0007 1
HOLDER-ASSY-STEP,FR,RH 34035A 34035-0008 1
PIN,6X28 92043 92043-1464 2
PIN,8X31.5 92043A 92043-1930 2
BUSHING-RUBBER,8.4X20X18 92092 92092-1018 4
SPRING,STEP,RH 92145 92145-2507 1
SPRING,STEP,LH 92145A 92145-2508 1
BOLT,SOCKET,8X35 92153 92153-0419 4
BOLT,BANK SENSOR 92154 92154-1186 2
BOLT,SOCKET,8X44 92154A 92154-4427 4
DAMPER 92161 92161-0336 2
DAMPER,12.5X21X2 92161A 92161-0943 4
DAMPER,12.5X20X4 92161B 92161-0944 4
DAMPER,STEP 92161C 92161-2706 2
WASHER,RR STEP 92200 92200-0561 2
WASHER,8.5X19X1 92200A 92200-1733 4
PIN-COTTER,2.0X15 550 550AA2015 2
PIN-COTTER,2.5X15 550A 550AA2515 2
