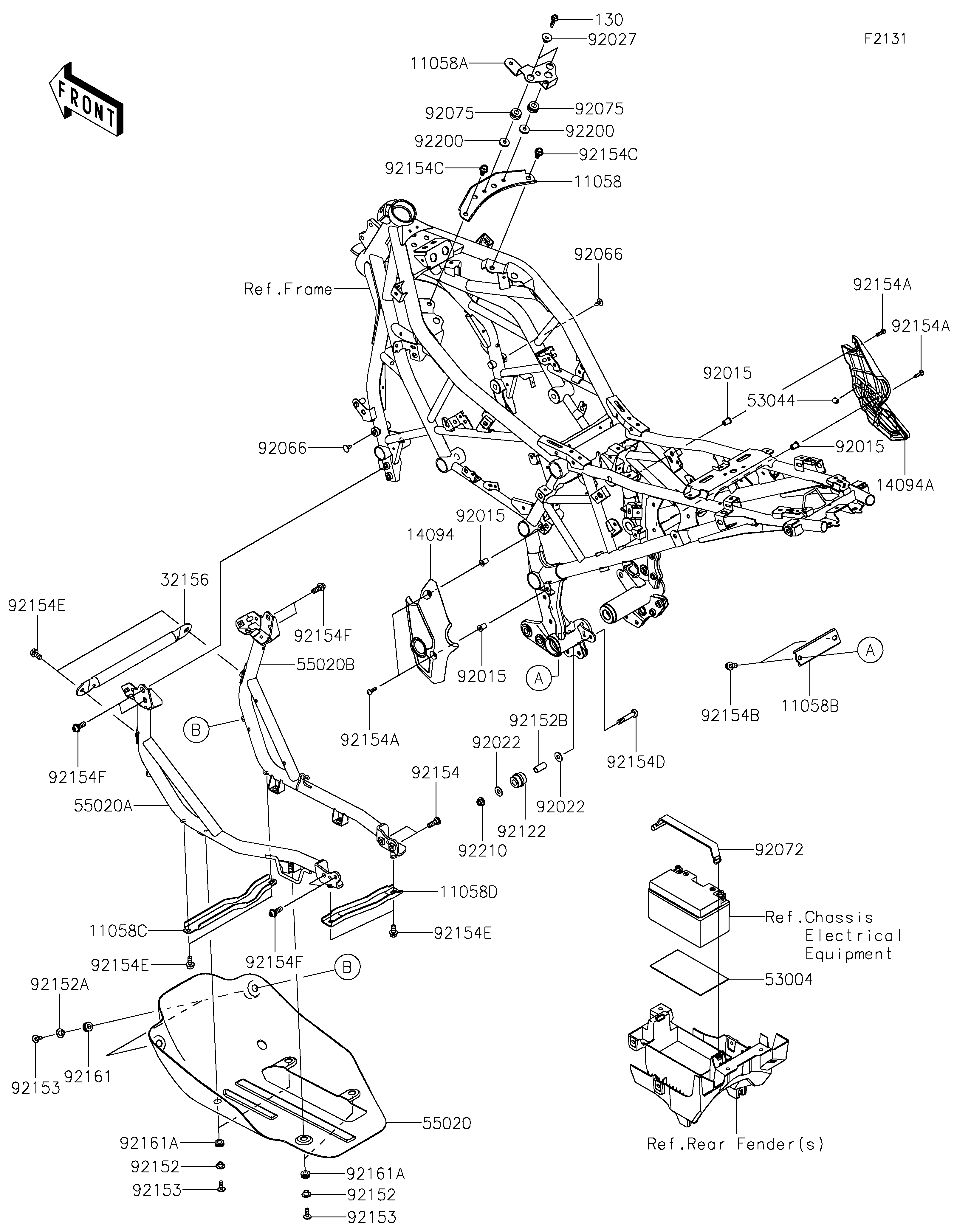

2026 KLE®500 SE ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058C
11058D
14094
14094A
32156
53004
53044
55020
55020A
55020B
92015
92015
92015
92015
92022
92022
92027
92066
92066
92072
92075
92075
92122
92152
92152
92152A
92152B
92153
92153
92153
92154
92154A
92154A
92154A
92154B
92154C
92154C
92154D
92154E
92154E
92154E
92154F
92154F
92154F
92161
92161A
92161A
92200
92200
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR,LWR 11058 11058-4268 1
BRACKET,REGULATOR,UPP 11058A 11058-4269 1
BRACKET 11058B 11058-7182 1
BRACKET,GUARD,RR 11058C 11058-7185 1
BRACKET,GUARD,FR 11058D 11058-7865 1
COVER,PIVOT,LH 14094 14094-0307 1
COVER,PIVOT,RH 14094A 14094-0308 1
PIPE,GUARD 32156 32156-0982 1
MAT,BATTERY 53004 53004-0560 1
TRIM 53044 53044-0799 1
GUARD,SKID PLATE 55020 55020-2564 1
GUARD,DOWN TUBE,LH 55020A 55020-2704 1
GUARD,DOWN TUBE,RH 55020B 55020-2705 1
NUT,WELL,5MM 92015 92015-1757 4
WASHER,8.5X20X1.6 92022 92022-1561 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
PLUG 92066 92066-1103 2
BAND 92072 92072-0749 1
DAMPER 92075 92075-277 2
ROLLER,GUIDE CHAIN 92122 92122-0041 1
COLLAR 92152 92152-2770 4
COLLAR 92152A 92152-2838 2
COLLAR,8.5X11.5X25 92152B 92152-3940 1
BOLT,6X18 92153 92153-0816 6
BOLT,SOCKET,8X25 92154 92154-1149 2
BOLT,SOCKET,5X18 92154A 92154-2107 4
BOLT-FLANGED,8X14 92154B 92154-3782 2
BOLT-FLANGED,8X14 92154C 92154-3851 2
BOLT 92154D 92154-7620 1
BOLT,FLANGED,8X16 92154E 92154-7912 6
BOLT,SOCKET,8X22 92154F 92154-7958 6
DAMPER 92161 92161-1462 2
DAMPER,10X18X6.5 92161A 92161-2091 4
WASHER,6.5X20X3.2 92200 92200-0359 2
NUT,LOCK,FLANGED,8MM 92210 92210-0140 1
BOLT-FLANGED,6X25 130 130BA0625 2
