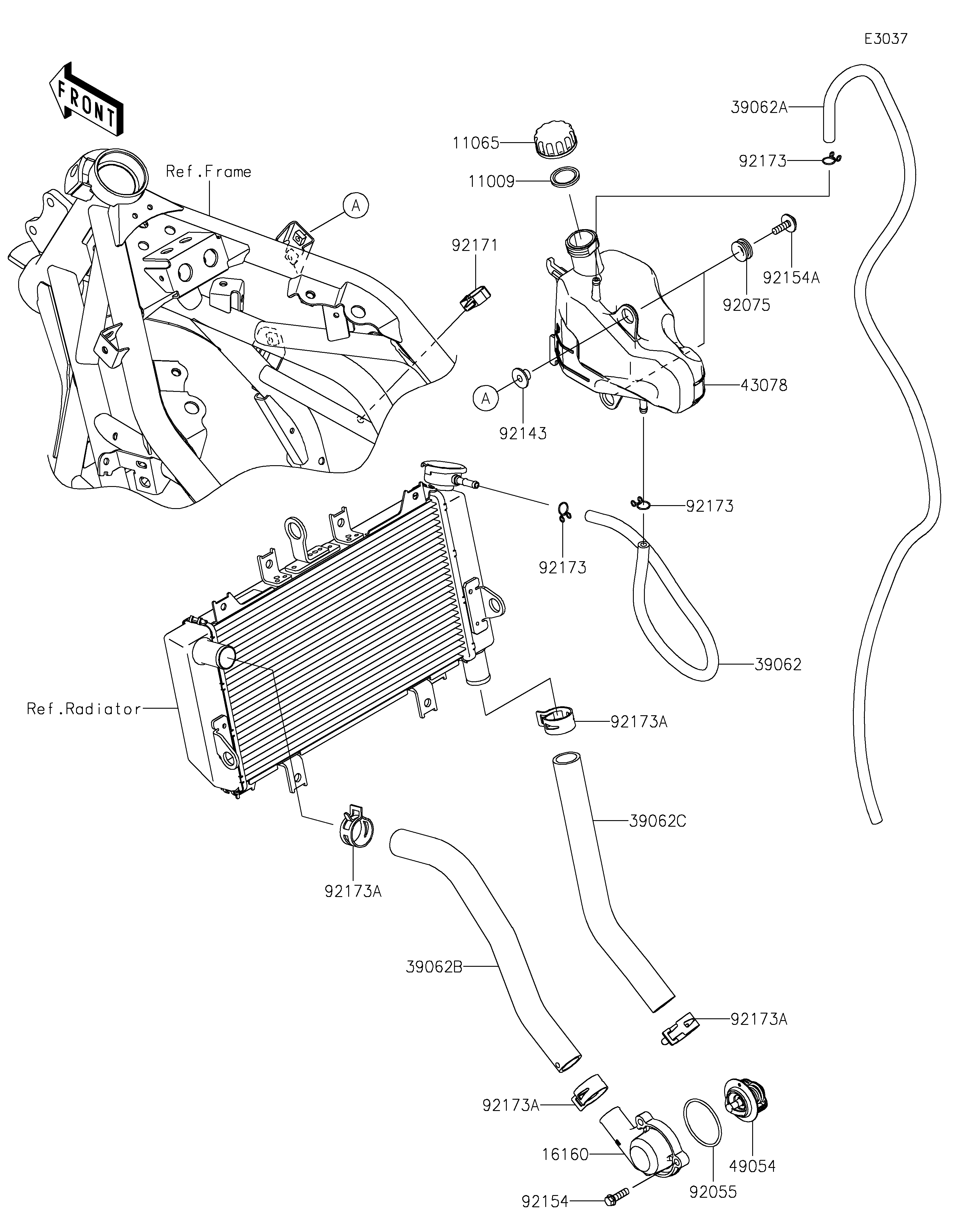

2026 KLE500 SE ABS - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11065
16160
39062
39062A
39062B
39062C
43078
49054
92055
92075
92143
92154
92154A
92171
92173
92173
92173
92173A
92173A
92173A
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11065 11065-0969 1
BODY,THERMOSTAT 16160 16160-0830 1
HOSE-COOLING,CAP-RESERVOIR 39062 39062-1984 1
HOSE-COOLING,OVER FLOW 39062A 39062-1985 1
HOSE-COOLING,THERMO.-RADIATOR 39062B 39062-1986 1
HOSE-COOLING,RADIATOR-W/PUMP 39062C 39062-1987 1
RESERVOIR 43078 43078-0626 1
THERMOSTAT 49054 49054-0001 1
RING-O,46.7X2.4 92055 92055-1811 1
DAMPER 92075 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,FLANGED,6X20 92154 92154-1778 3
BOLT,6X20 92154A 92154-2490 2
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP 92173 92173-0050 3
CLAMP 92173A 92173-1688 4
