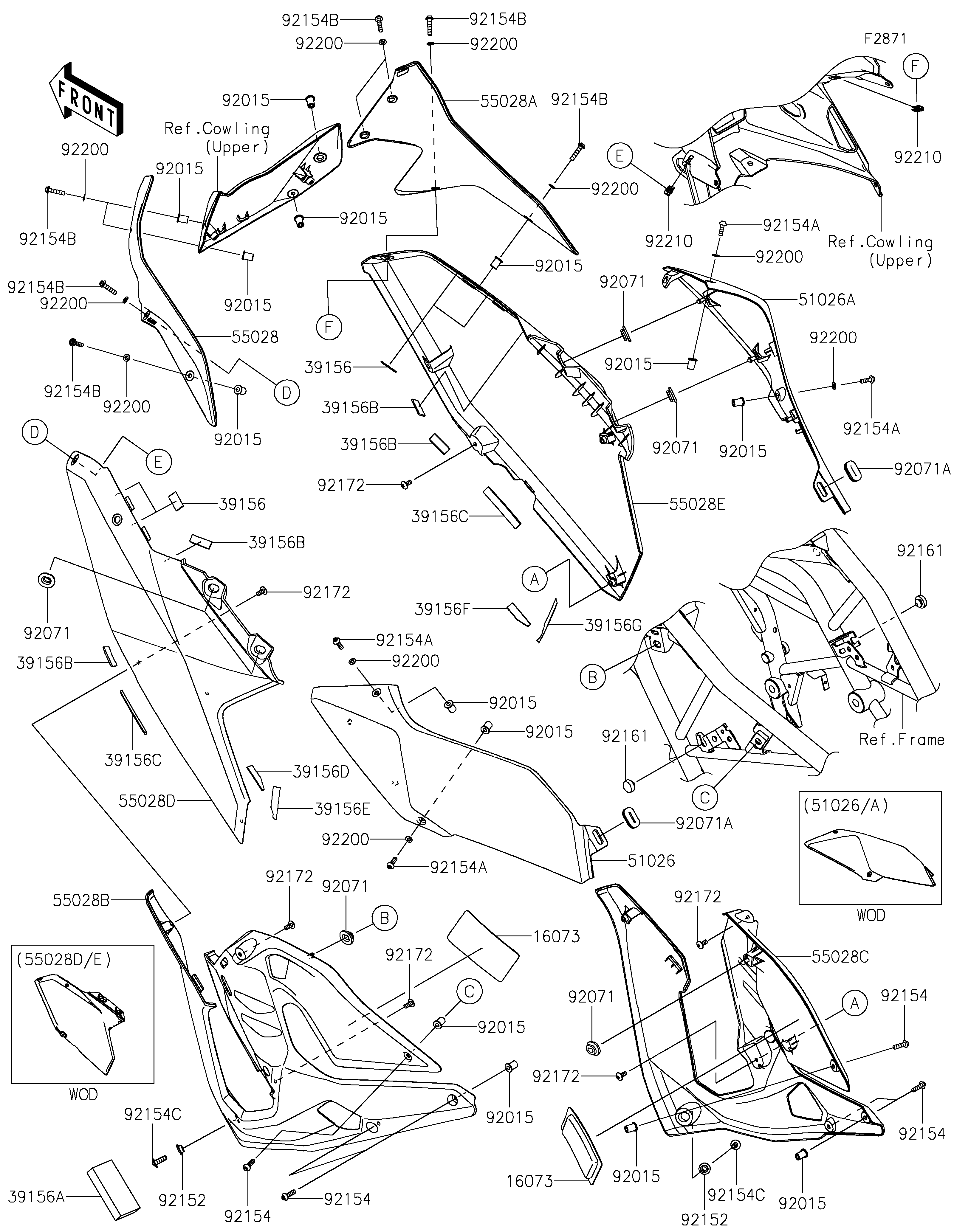

2026 KLE500 ABS - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
16073
16073
39156
39156
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156D
39156E
39156F
39156G
51026
51026A
55028
55028A
55028B
55028C
55028D
55028E
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92071
92071
92071
92071
92071
92071A
92071A
92152
92152
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92161
92161
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
INSULATOR 16073 16073-1172 2
PAD,13X25X2 39156 39156-2137 4
PAD,80X40X15 39156A 39156-2999 1
PAD,30X11X2 39156B 39156-3857 4
PAD,70X11X3 39156C 39156-3858 2
PAD 39156D 39156-3859 1
PAD 39156E 39156-3860 1
PAD 39156F 39156-3882 1
PAD 39156G 39156-3883 1
COVER TANK,LH,M.C.GRAY 51026 51026-0030-51A 1
COVER TANK,RH,M.C.GRAY 51026A 51026-0031-51A 1
COWLING,SIDE SCREEN,LH 55028 55028-0908 1
COWLING,SIDE SCREEN,RH 55028A 55028-0909 1
COWLING,SIDE,LWR,LH 55028B 55028-0914 1
COWLING,SIDE,LWR,RH 55028C 55028-0915 1
COWLING,SIDE,LH,M.C.GRAY 55028D 55028-0960-51A 1
COWLING,SIDE,RH,M.C.GRAY 55028E 55028-0961-51A 1
NUT,WELL,5MM 92015 92015-1757 16
GROMMET,20X24X7.5 92071 92071-0766 6
GROMMET,EMBOSSED 0776 92071A 92071-0776 2
COLLAR,6.5X16X5.6 92152 92152-1838 2
BOLT,SOCKET,5X18 92154 92154-2107 6
BOLT,SOCKET,5X20 92154A 92154-4301 4
BOLT,FLANGED,5X23 92154B 92154-7945 8
BOLT,SOCKET,6X18 92154C 92154-7967 2
DAMPER,9.5X18X6 92161 92161-1473 2
SCREW,5X12 92172 92172-0821 6
WASHER,5.2X10X1 92200 92200-2286 12
NUT 92210 92210-0571 2
