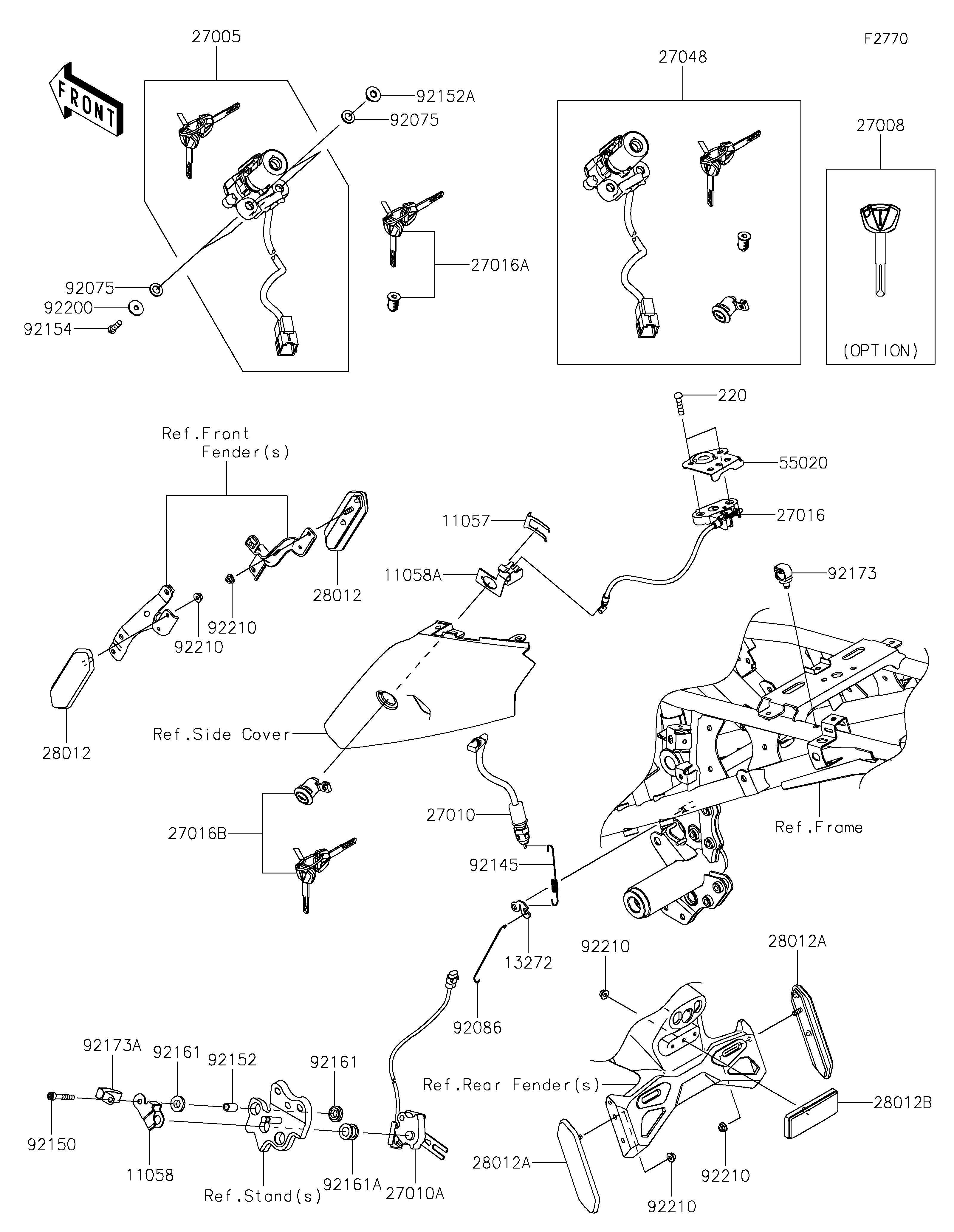

2026 KLE500 ABS - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
13272
27005
27008
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
28012A
28012B
55020
92075
92075
92086
92145
92150
92152
92152A
92154
92161
92161
92161A
92173
92173A
92200
92210
92210
92210
92210
92210
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK,UPP 11057 11057-7740 1
BRACKET 11058 11058-1673 1
BRACKET,KEY CYLINDER 11058A 11058-4418 1
PLATE,RR BRAKE SWITCH 13272 13272-7152 1
SWITCH-ASSY-IGNITION 27005 27005-0718 1
KEY-LOCK,BLANK 27008 27008-0662 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0723 1
SWITCH,SIDE STAND 27010A 27010-0845 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0107 1
LOCK-ASSY,SEAT 27016A 27016-5427 1
LOCK-ASSY,TANK CAP 27016B 27016-5431 1
SWITCH-ASSY 27048 27048-5360 1
REFLECTOR-REFLEX,CCC 28012 28012-0045 2
REFLECTOR-REFLEX,RED,CCC 28012A 28012-0046 2
REFLECTOR-REFLEX,RR,FLAP 28012B 28012-0064 1
GUARD 55020 55020-2404 1
DAMPER 92075 92075-1564 4
WIRE,RR BRAKE SWITCH 92086 92086-0044 1
SPRING,BRAKE LAMP SWITCH 92145 92145-0683 1
BOLT,SOCKET,6X40 92150 92150-1958 1
COLLAR,6.5X9.5X17 92152 92152-2274 1
COLLAR,6.8X10X10.1 92152A 92152-4003 2
BOLT,TORX,6X22 92154 92154-1858 2
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-2721 1
WASHER,6X20X1.6 92200 92200-0780 2
NUT,FLANGED,5MM 92210 92210-0007 5
SCREW-PAN-CROS,6X25 220 220AA0625 2
