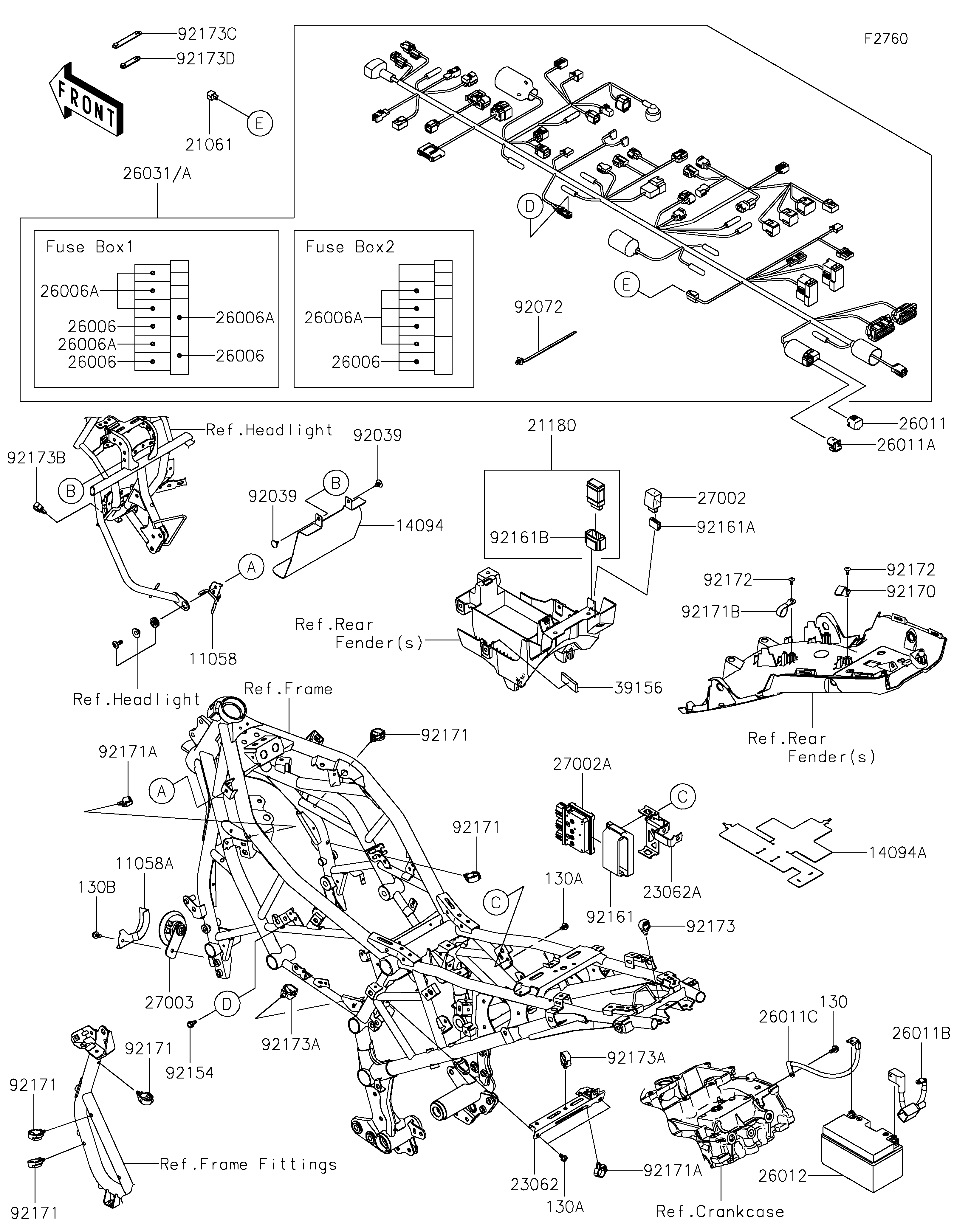

2026 KLE500 ABS - Chassis Electrical Equipment
11058
11058
11058A
11058A
14094
14094
14094A
14094A
21061
21061
21180
21180
23062
23062
23062A
23062A
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
92039
92039
92039
92039
92072
92072
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171B
92171B
92172
92172
92172
92172
92173
92173
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
130
130
130A
130A
130A
130A
130B
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HOUSING | 11058 | 11058-2943 | 1 | ||
| BRACKET,HORN | 11058A | 11058-4379 | 1 | ||
| COVER | 14094 | 14094-0557 | 1 | ||
| COVER,MAGNETIC SWITCH | 14094A | 14094-0623 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| TRANSCEIVER,BLUETOOTH | 21180 | 21180-0013 | 1 | ||
| BRACKET-COMP | 23062 | 23062-1587 | 1 | ||
| BRACKET-COMP | 23062A | 23062-1784 | 1 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 4 | ||
| FUSE,MINI BLADE,10A,RED | 26006A | 26006-1078 | 9 | ||
| WIRE-LEAD,CONNECTOR COVER | 26011 | 26011-0275 | 1 | ||
| WIRE-LEAD,DIAG CONNECTOR | 26011A | 26011-1901 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011B | 26011-2508 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011C | 26011-2509 | 1 | ||
| BATTERY,YTZ10,12V 8.6AH | 26012 | 26012-1606 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-4358 | 1 | CN,US | |
| HARNESS,MAIN | 26031A | 26031-4359 | 1 | CA | |
| RELAY-ASSY,SIGNAL LAMP | 27002 | 27002-0006 | 1 | ||
| RELAY-ASSY | 27002A | 27002-0061 | 1 | ||
| HORN | 27003 | 27003-0065 | 1 | ||
| PAD,20X50X5 | 39156 | 39156-2191 | 1 | ||
| RIVET | 92039 | 92039-0722 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | AR | ||
| BOLT,FLANGED,6X16 | 92154 | 92154-0551 | 1 | ||
| DAMPER,RELAY BOX | 92161 | 92161-0203 | 1 | ||
| DAMPER,15X25X8.5 | 92161A | 92161-1443 | 1 | ||
| DAMPER | 92161B | 92161-2516 | 1 | ||
| CLAMP | 92170 | 92170-1925 | 1 | ||
| CLAMP,20MM DIA. | 92171 | 92171-0069 | 5 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-0316 | 2 | ||
| CLAMP | 92171B | 92171-1279 | 1 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 2 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 1 | ||
| CLAMP | 92173A | 92173-0861 | 2 | ||
| CLAMP | 92173B | 92173-1951 | 1 | ||
| CLAMP | 92173C | 92173-2194 | 2 | ||
| CLAMP | 92173D | 92173-2198 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 1 | ||
| BOLT-FLANGED,6X10 | 130A | 130BB0610 | 3 | ||
| BOLT-FLANGED,6X12 | 130B | 130BB0612 | 1 |
