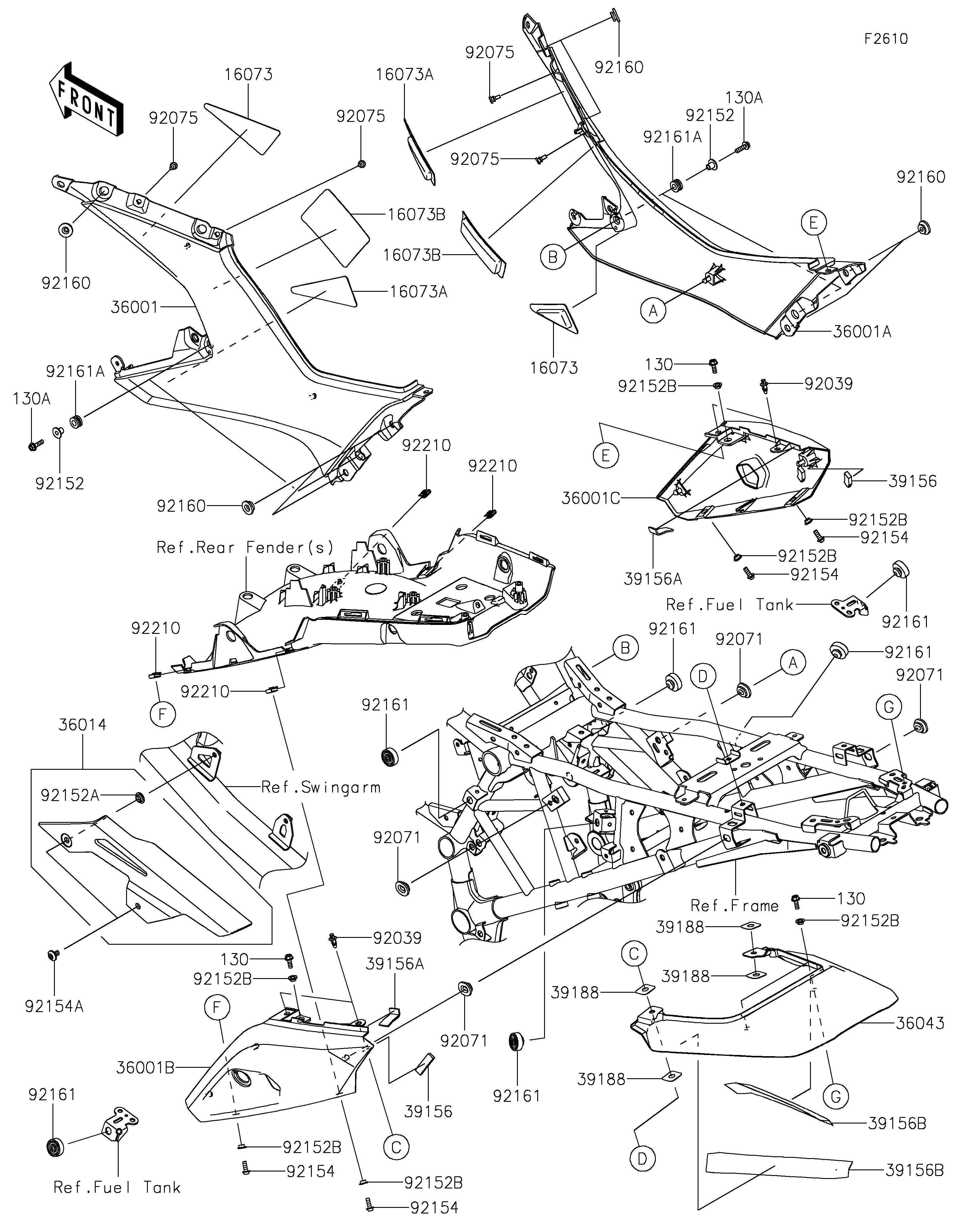

2026 KLE500 ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
16073
16073
16073A
16073A
16073B
16073B
36001
36001A
36001B
36001C
36014
36043
39156
39156
39156A
39156A
39156B
39156B
39188
39188
39188
39188
92039
92039
92071
92071
92071
92071
92075
92075
92075
92075
92152
92152
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92154
92154
92154
92154
92154A
92160
92160
92160
92160
92161
92161
92161
92161
92161
92161
92161A
92161A
92210
92210
92210
92210
130
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
INSULATOR 16073 16073-1170 2
INSULATOR 16073A 16073-1171 2
INSULATOR 16073B 16073-1172 2
COVER-SIDE,FR,LH,M.C.GRAY 36001 36001-0802-51A 1
COVER-SIDE,FR,RH,M.C.GRAY 36001A 36001-0803-51A 1
COVER-SIDE,RR,LH,EBONY 36001B 36001-0804-H8 1
COVER-SIDE,RR,RH,EBONY 36001C 36001-0805-H8 1
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,M.C.GRAY 36043 36043-0011-51A 1
PAD,35X10X5 39156 39156-3874 2
PAD,35X17X2 39156A 39156-3875 2
PAD,TAIL COVER 39156B 39156-3899 2
TAPE,TAIL COVER 39188 39188-0628 4
RIVET 92039 92039-0709 4
GROMMET,20X24X7.5 92071 92071-0766 4
DAMPER,6X10X15 92075 92075-1808 4
COLLAR 92152 92152-0329 4
COLLAR,8.8X11.2X4 92152A 92152-0909 2
COLLAR,6X8X4.5 92152B 92152-2395 8
BOLT,HEX HEAD,5X14 92154 92154-4228 4
BOLT,SOCKET,6X10 92154A 92154-4307 2
DAMPER 92160 92160-1613 8
DAMPER,SEAT,10X25X8 92161 92161-0095 6
DAMPER 92161A 92161-2855 4
NUT 92210 92210-0571 4
BOLT-FLANGED,5X14 130 130BA0514 4
BOLT-FLANGED,5X18 130A 130BB0518 4
