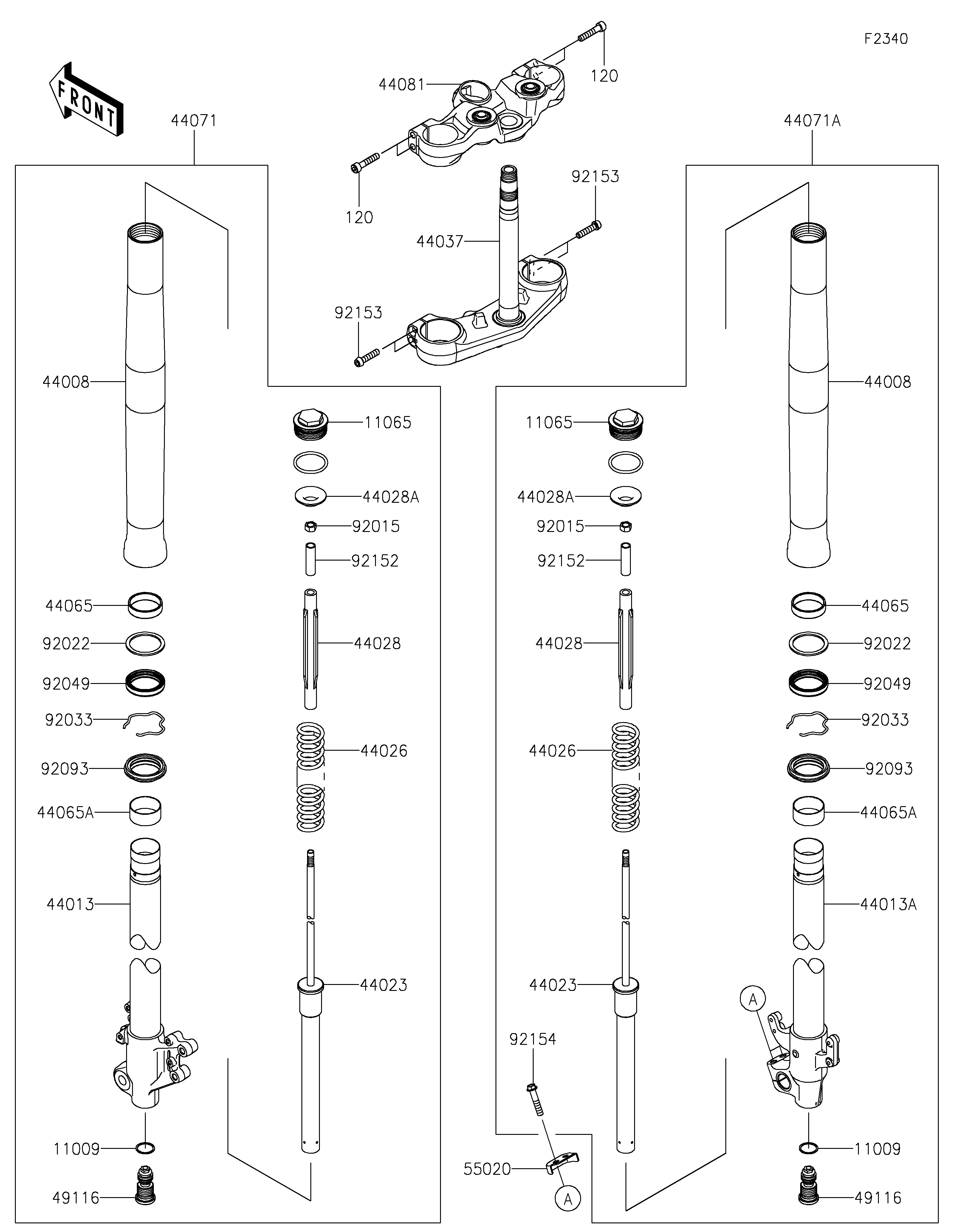

2026 KLE500 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11065
11065
44008
44008
44013
44013A
44023
44023
44026
44026
44028
44028
44028A
44028A
44037
44065
44065
44065A
44065A
44071
44071A
44081
49116
49116
55020
92015
92015
92022
92022
92033
92033
92049
92049
92093
92093
92152
92152
92153
92153
92154
120
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP,FORK,TOP,GRAY 11065 11065-1508-11G 2
PIPE-FORK OUTER,BLACK 44008 44008-0129-499 2
PIPE-FORK INNER,LH 44013 44013-0435 1
PIPE-FORK INNER,RH 44013A 44013-0436 1
CYLINDER-SET-FORK 44023 44023-0207 2
SPRING-FRONT FORK 44026 44026-0315 2
GUIDE-FORK SPRING 44028 44028-0008 2
GUIDE-FORK SPRING 44028A 44028-0009 2
HOLDER-FORK UNDER 44037 44037-0230 1
BUSHING-FRONT FORK,SLIDE 44065 44065-0056 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1142 2
DAMPER-ASSY,FORK,LH,BLACK 44071 44071-1707-48M 1
DAMPER-ASSY,FORK,RH,BLACK 44071A 44071-1855-48M 1
HOLDER-ASSY-FORK UPPER,B.B.SIL 44081 44081-0138-79G 1
VALVE-ASSY,BASE 49116 49116-0727 2
GUARD,AXLE 55020 55020-2700 1
NUT 92015 92015-1795 2
WASHER 92022 92022-1299 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-0007 2
SEAL,FORK OUTER TUBE 92093 92093-1480 2
COLLAR 92152 92152-3985 2
BOLT,SOCKET,8X35 92153 92153-1228 4
BOLT,8X40 92154 92154-4062 2
BOLT-SOCKET,8X40 120 120CA0840 4
