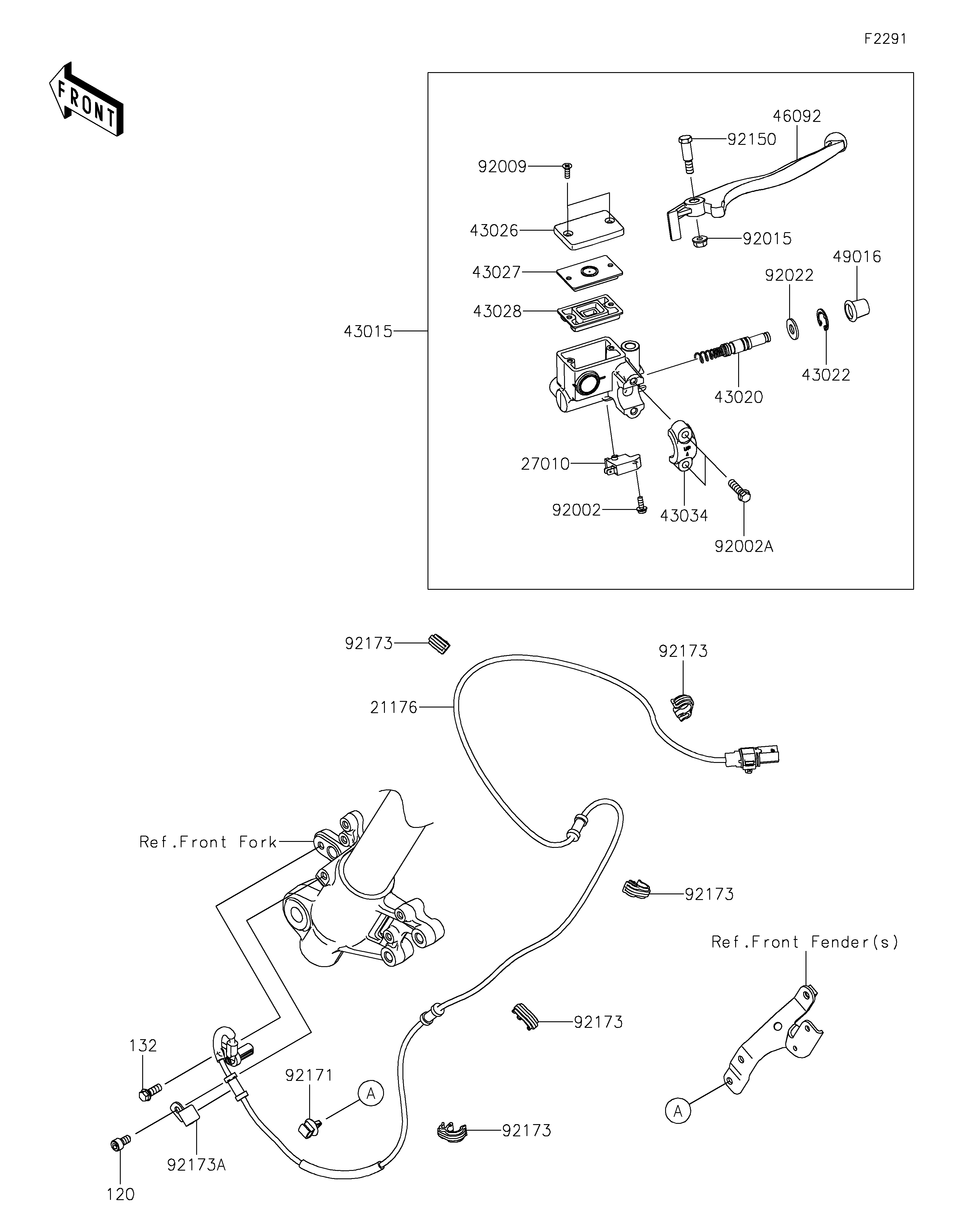

2026 KLE500 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
21176
27010
43015
43020
43022
43026
43027
43028
43034
46092
49016
92002
92002A
92009
92015
92022
92150
92171
92173
92173
92173
92173
92173
92173A
120
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SENSOR,SPEED,FR 21176 21176-1287 1
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0843 1
PISTON-COMP-BRAKE 43020 43020-1126 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1208 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
WASHER 92022 92022-1814 1
BOLT,LEVER SET 92150 92150-1451 1
CLAMP 92171 92171-0640 1
CLAMP,HOSE&SENSOR LINE 92173 92173-1613 5
CLAMP 92173A 92173-2931 1
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
