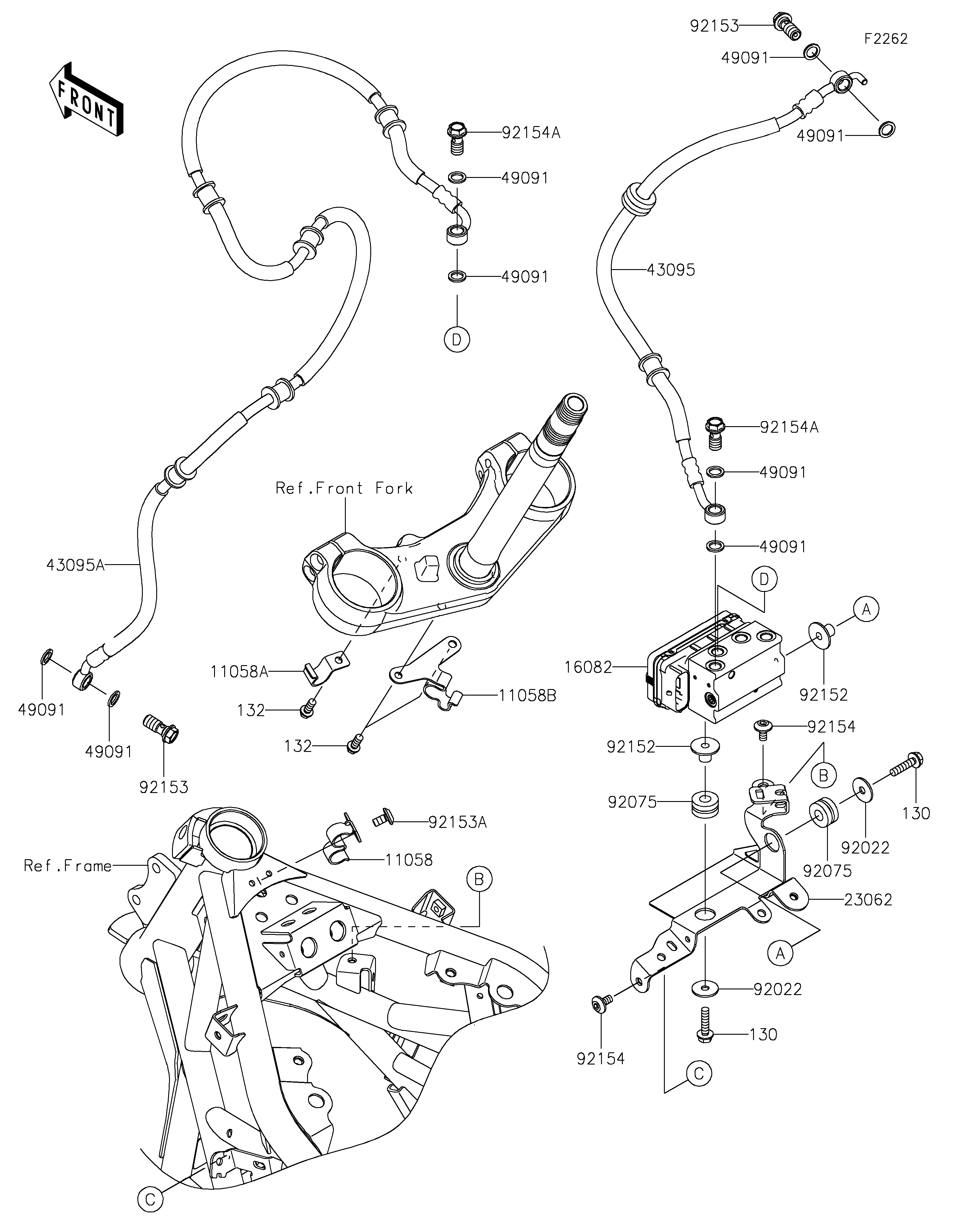

2026 KLE500 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
16082
23062
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
92022
92022
92075
92075
92152
92152
92153
92153
92153A
92154
92154
92154A
92154A
130
130
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-2729 1
BRACKET 11058A 11058-2731 1
BRACKET 11058B 11058-2732 1
PUMP-ASSY-OIL,ABS,BOSCH,10.3MB 16082 16082-0964 1
BRACKET-COMP,ABS UNIT 23062 23062-1603 1
HOSE-BRAKE,FR M/C-ABS UNIT 43095 43095-2087 1
HOSE-BRAKE,ABS UNIT-FR CALIPER 43095A 43095-2088 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
WASHER,6.5X22X1.6 92022 92022-237 2
DAMPER 92075 92075-209 2
COLLAR,6.5X10X13.6 92152 92152-2204 2
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,SOCKET,6X12 92153A 92153-1948 1
BOLT,SOCKET,6X12 92154 92154-2355 2
BOLT 92154A 92154-7600 2
BOLT-FLANGED,6X25 130 130BA0625 2
BOLT-FLANGED-SMALL,6X14 132 132BA0614 3
