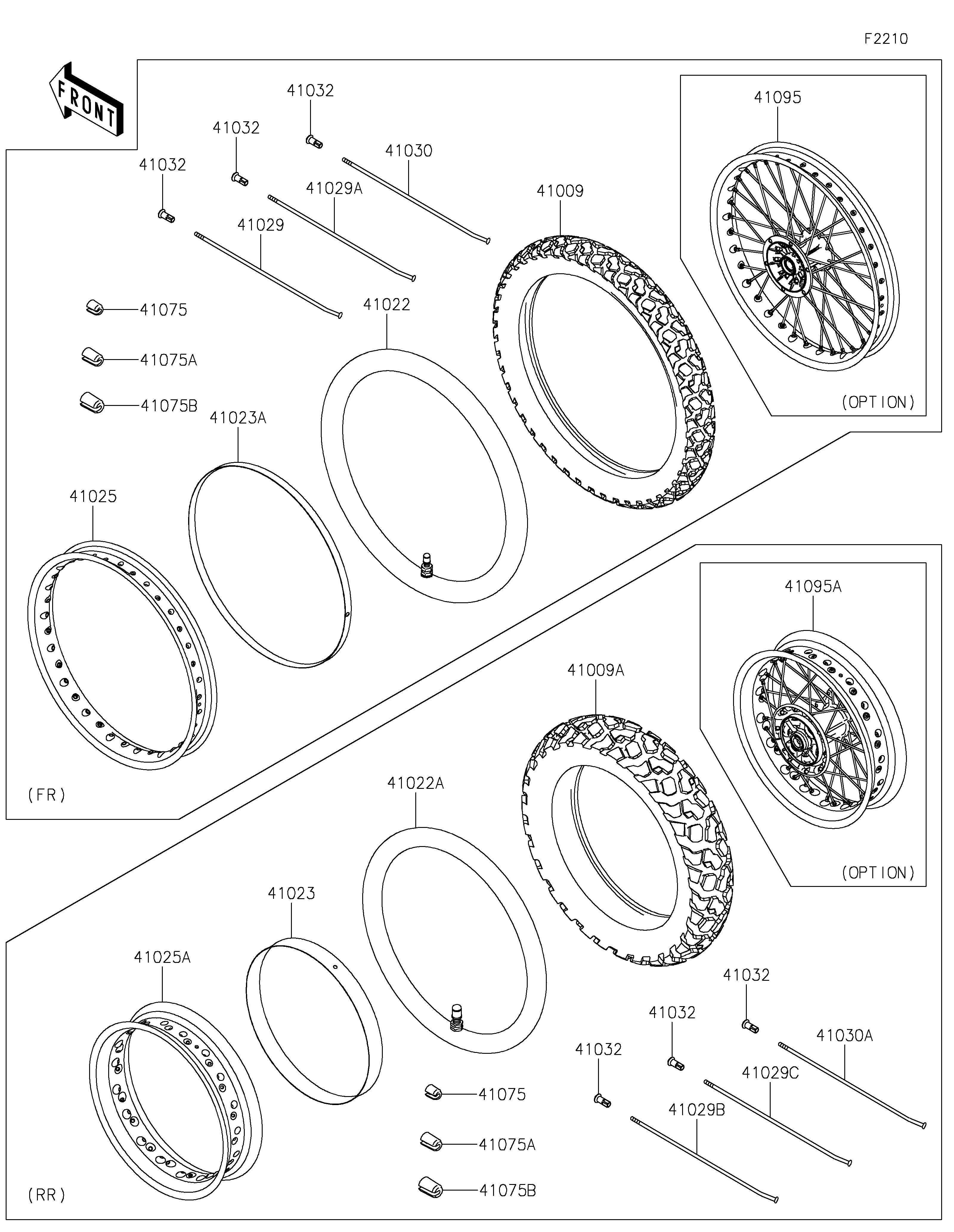

2026 KLE500 ABS - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41029B
41029C
41030
41030A
41032
41032
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
41095
41095A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,90/90-21 54S,GP-410F 41009 41009-1496 1
TIRE,RR,140/70-17 66S,GP-410R 41009A 41009-1497 1
TUBE-TIRE,2.75/3.00-21 41022 41022-0133 1
TUBE-TIRE,130/80-17(IRC) 41022A 41022-0139 1
BAND-RIM,RR,130/70-17 41023 41023-0016 1
BAND-RIM,22-21(IRC) 41023A 41023-0030 1
RIM,FR,21X2.15,BLACK 41025 41025-0478-WC 1
RIM,RR,17X4.00,BLACK 41025A 41025-0479-WC 1
SPOKE-INNER,222MMX105D 41029 41029-0131 18
SPOKE-INNER,228MMX105D 41029A 41029-0132 9
SPOKE-INNER,153.9MMX105D 41029B 41029-0133 18
SPOKE-INNER,177.3MMX105D 41029C 41029-0134 9
SPOKE-OUTER,221MMX105D 41030 41030-0036 9
SPOKE-OUTER,176MMX105D 41030A 41030-0037 9
NIPPLE-SPOKE 41032 41032-0013 72
BALANCER-WHEEL,10G 41075 41075-0011 AR
BALANCER-WHEEL,20G 41075A 41075-0012 AR
BALANCER-WHEEL,30G 41075B 41075-0013 AR
WHEEL-SUB ASSY,FR,BLACK 41095 41095-0015-WC 1 (OPTION)
WHEEL-SUB ASSY,RR,BLACK 41095A 41095-0016-WC 1 (OPTION)
