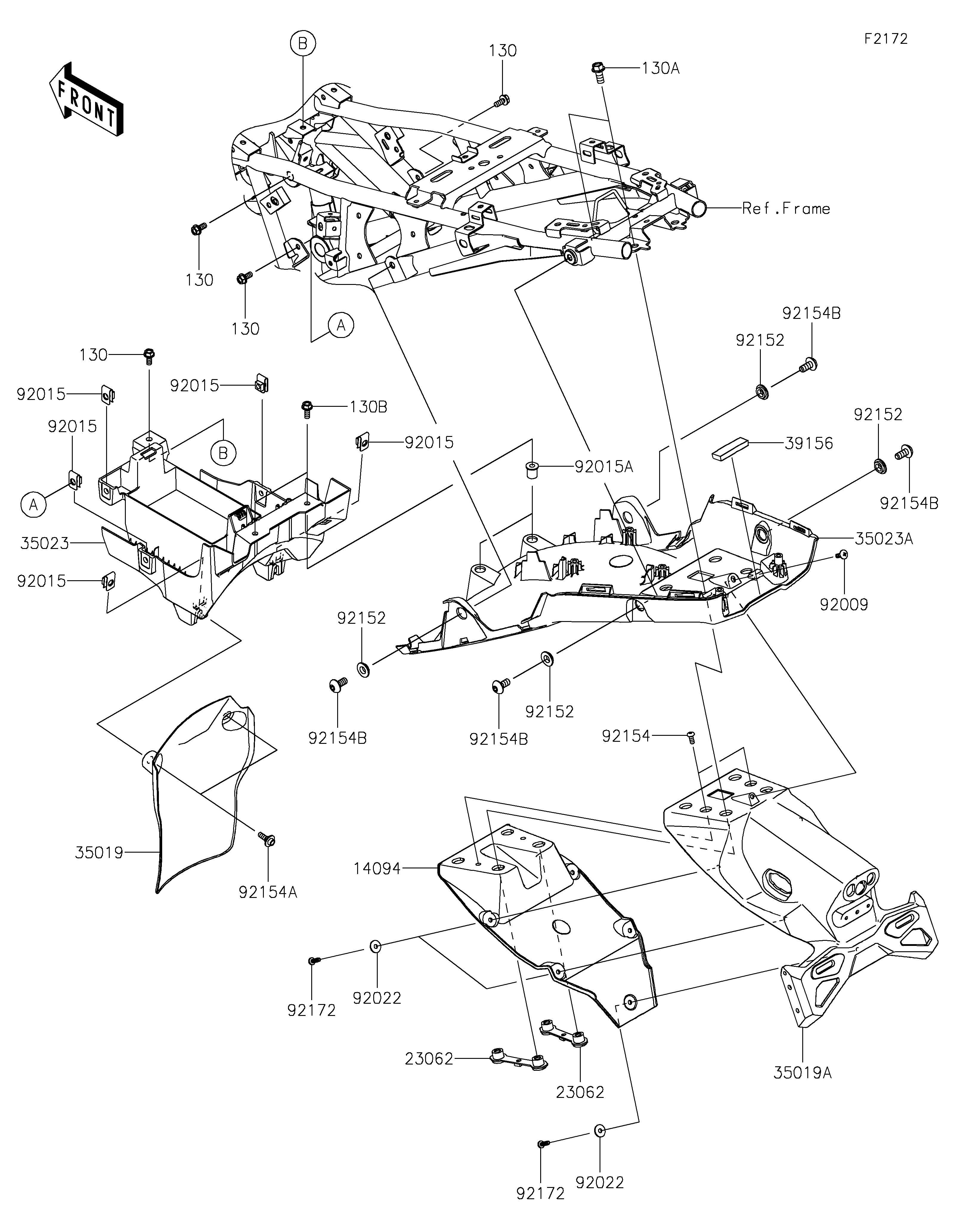

2026 KLE500 ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14094
23062
23062
35019
35019A
35023
35023A
39156
92009
92015
92015
92015
92015
92015
92015A
92022
92022
92152
92152
92152
92152
92154
92154A
92154B
92154B
92154B
92154B
92172
92172
130
130
130
130
130A
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RR FLAP 14094 14094-0301 1
BRACKET-COMP,RR FLAP 23062 23062-1584 2
FLAP,FR 35019 35019-0710 1
FLAP,RR 35019A 35019-0725 1
FENDER-REAR,FR 35023 35023-0531 1
FENDER-REAR,RR 35023A 35023-0532 1
PAD,50X15X7 39156 39156-3871 1
SCREW,TAPPING,5X14 92009 92009-1197 1
NUT,6MM 92015 92015-1602 5
NUT 92015A 92015-1700 2
WASHER,5.2X16X1.2 92022 92022-263 5
COLLAR,10X20X4.5 92152 92152-2392 4
BOLT,SOCKET,5X12 92154 92154-1471 2
BOLT,FLANGED,6X28 92154A 92154-1739 2
BOLT,SOCKET,8X18 92154B 92154-7058 4
SCREW,TAPPING,5X16 92172 92172-0790 5
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,8X18 130A 130BA0818 4
BOLT-FLANGED,6X16 130B 130BB0616 2
